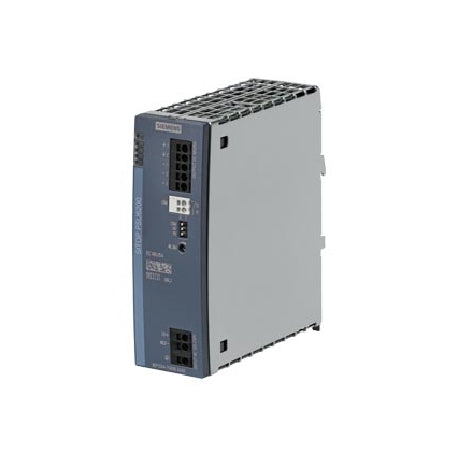

SIEMENS SITOP PSU6200 48VDC STABILIZED DIN-RAIL POWER SUPPLY

SIEMENS SITOP PSU6200 48VDC STABILIZED DIN-RAIL POWER SUPPLY

$199.00 CAD
$199.00 CAD
Sale Sold out

Features and Benefits

  • Regulated AC/DC Power Supply
  • Wide Input Voltage (93-132Vac / 187-264Vac
  • Compact Design (50mm width)
  • Built-in Protections
  • High Efficiency (86%)
  • LED Status Indicator
  • Global Certifications (CE, cULus, EN 55022)
  • Long-lasting Durability
View full details

Description

The SITOP PSU6200 is a versatile 5A power supply unit with 48V DC output, compatible with both AC and DC input voltages, featuring a diagnostic interface for enhanced monitoring and control.

Key Features

Output Specifications:
• Delivers a stable 48V DC output
• Provides a generous 5A current capacity, suitable for powering multiple devices or high-demand equipment

Input Versatility:
• AC input range: 85 to 264V AC
• DC input range: 85 to 275V DC
This wide input range ensures compatibility with different power sources and enhances the unit's global usability

Diagnostic Capabilities:
The PSU6200 comes equipped with a diagnostic interface, allowing for:
• Real-time monitoring of power supply status
• Integration with control systems for enhanced operational oversight
• Proactive maintenance and troubleshooting

Reliability and Efficiency:
• Stabilized output ensures consistent power delivery
• Engineered to Siemens' high standards for industrial-grade reliability
• Optimized for energy efficiency to reduce operational costs

Applications
The SITOP PSU6200 is ideal for:
• Industrial automation systems
• Process control equipment
• Telecommunications infrastructure
• Any application requiring a stable, reliable 48V DC power source with advanced monitoring capabilities

This power supply unit combines Siemens' renowned quality with advanced features, making it an excellent choice for critical power applications where performance and reliability are paramount.

Data sheet

Specification

Input Specifications:
Power Supply Network: 1-phase AC or DC
AC Supply Voltage: 120 V (min), 240 V (max)
DC Supply Voltage: 110-240 V
Input Voltage Range (DC): 85-275 V
Overvoltage Overload Capability: 300 V AC for 30 seconds
Line Frequency: 50/60 Hz, range: 47-63 Hz
Input Current: 2.2 A at 120 V AC, 1.2 A at 230 V AC
Inrush Current: 6 A at 25°C
Fuse Protection: 5 A, circuit breaker options from 4-10 A
Output Specifications:
Output Voltage: 48 V DC (adjustable from 48-56 V)
Number of Outputs: 1
Rated Output Current: 5 A (6 A up to 45°C)
Supplied Active Power: 240 W
Efficiency: 93.9%
Ripple: Max 50 mV, typical 30 mV
Voltage Peak: Max 60 mV, typical 40 mV
Overshoot on Switching: <2%
Protection & Monitoring:
Overvoltage Protection: <60 V
Short-Circuit Protection: Yes, periodic restart attempts
Overload Capability: 150% of rated output for 5 seconds
Safety & Certifications:
Galvanic Isolation: Yes
Protection Class: IP20, Class I
Certifications: CE, UL, CSA, CB, EAC, Shipbuilding approval (in process)
Environmental Conditions:
Operating Temperature: -30 to +70°C
Storage Temperature: -40 to +85°C
Humidity: Climate class 3K3, 5-95% non-condensing
Mechanical Specifications:
Dimensions: 45 mm width, 135 mm height, 125 mm depth
Mounting: DIN rail (EN 60715)
Weight: 0.9 kg
Accessories:
Electrical: Buffer module, redundancy module
Mechanical: Identification labels
