• ROBUSTEL-R2000-4L-B014747-ManuAuto
1 1

Robustel

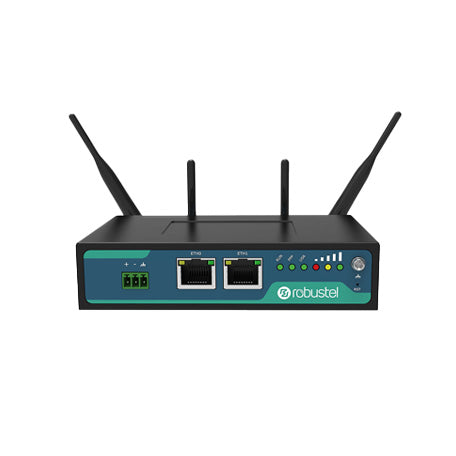

ROBUSTEL R2000-4L (B014747) INDUSTRIAL CELLULAR ROUTER

ROBUSTEL R2000-4L (B014747) INDUSTRIAL CELLULAR ROUTER

$375.00 CAD
$375.00 CAD
Sale Sold out
We have 19 in stock

Features and Benefits

  • Country/Region: North America
  • Certifications (*In progress): FCC, PTCRB, AT&T, IC, TELUS, Rogers
  • Available in 4G Cat 4 high speed and Cat-M1 low speed networks
  • Industrial design (9 ~ 36 VDC, desktop or wall mounting or DIN rail mounting)
  • Management and maintenance via Web/CLI/SMS/RCMS Cloud
  • Supports IPv6
  • Wi-Fi/Ethernet/4G WAN interface options with failover
  • IPsec/OpenVPN/GRE/L2TP/PPTP/
  • DMVPN VPN capabilities
  • RobustVPN – hosted VPN service providing a “fixed IP” router
View full details

Description

The Robustel Industrial Dual SIM Cellular VPN Router (R2000) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications. R2000 is a powerful router developed from RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with a very good user experience. Meanwhile, Robustel
offers a Software Development Kit (SDK) for partners and customers to allow additional customization by using C, Python or Java. It also provides rich Apps to
meet fragmented IoT market demands.

Data sheet

Specification

Cellular Interface
Number of antennas: 2 (MAIN + AUX) or 1 (MAIN)
Connector: SMA-K
SIM: 2 Mini SIM (2FF)

Ethernet Interface
Number of ports: 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
WAN port: Supporting 802.3 at PD feature (optional)
Magnet isolation protection: 1.5KV

WiFi Interface (optional)
Number of antennas: 2 (WiFi1 + WiFi2)
Connector: RP-SMA-K
Standards: 802.11 b/g/n supporting AP and Client modes
Frequency band: 4G: LTE FDD: B2/B4/B12, 3G: WCDMA: B2/B4/B5
Security: WEP, WPA, WPA2
Encryption: 64/128 AES, TKIP
Data speed: 2*2 MIMO, 300 Mbps

Others
Reset button: 1 x RST
LED indicators: 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI
Built-in: Watchdog, Timer

Software
Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnel: IPsec/OpenVPN/GRE
Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management: Web, SMS, CLI
Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

SDK
Supported programming language: C, C++
Flash available for SDK: 4 MB
RAM available for SDK: 16 MB

Power Supply and Consumption
Connector: 3-pin 3.5 mm female socket
Input voltage: 9 to 36V DC
Power consumption: Idle: 100 mA@12 V Data link: 500 mA (peak) @12 V

Physical Characteristics
Ingress protection: IP30
Housing & Weight: Metal, 305 g
Dimensions: 127.5 x 82.5 x 29.5 mm
Installations: Desktop, wall mounting and 35 mm DIN rail mounting

Regulatory and Type Approvals
Environmental: RoHS 2.0, WEEE
EMI: EN 55032: 2012/AC: 2013 (CE & RE) Class A
EMS: IEC 61000-4-2 (ESD) Contact Level 2; Air Level 3,
IEC 61000-4-4 (EFT) Level 2, IEC 61000-4-5 (Surge) Level 3
