Robustel

ROBUSTEL R1511-4L-A05NA-B DUAL ETHERNET ROUTER

ROBUSTEL R1511-4L-A05NA-B DUAL ETHERNET ROUTER

$281.00 CAD
$281.00 CAD
Sale Out of Stock
We have 6 in stock

Features and Benefits

  • Serial Port: RS485
  • Country/Region: North America
  • FCC, IC, PTCRB, AT&T, Verizon Certifications
  • Global 4G frequency coverage for all continents
  • Huge investment in Global certifications for all major countries
  • Free Cloud Management platform for easy global monitoring
  • 802.3at compliant POE interface for simple powering
  • E-mark certification for in-vehicle use
  • Unique “Smart Roaming” capability for enhanced roaming SIM management
  • Support Dual SIMs & WIFI/Ethernet as WAN
  • RobustVPN – hosted service providing a “fixed IP” router
  • Wireguard/IPsec/OpenVPN/DMVPN supported
View full details

Description

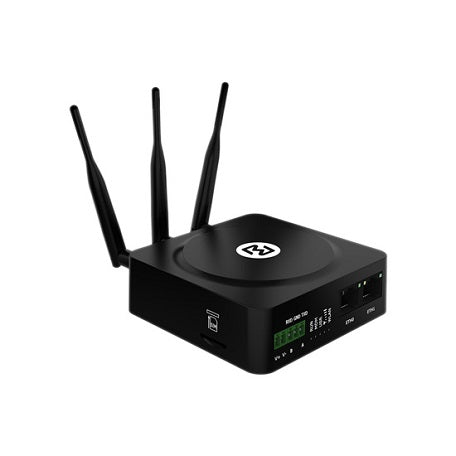

Robustel’s R1511 router is a Dual Ethernet port (LAN + WAN) 2G/3G/4G/LTE router with advanced software functions at a very competitive price point. The R1511 is a sister product of the R1510 series offering a choice of (3-wire) RS232 or (2-wire) RS485 INSTEAD of the Digital Input and Digital Output found on the R1510 series. This means that RS232 and RS485 devices, including Modbus RTU equipment, can connect to the internet directly through the R1511 router. Ethernet port 0 can be independently configured as WAN, LAN1, or LAN2, and Ethernet port 1 as LAN1 or LAN2.

Data sheet

Specification

Cellular Interface
Number of antennas: 2 External antennas (MAIN + AUX)
Connector: SMA-K
SIM: 1 Mini SIM (2 FF)

Ethernet Interface
Number of ports: 2 x 10/100 Mbps, 2 x LAN or 1 x LAN +1 x WAN
Magnet isolation protection: 1.5 KV

Wi-Fi Interface
Number of antennas: 2 (1 external antenna, 1 PCB antenna)
Connector: RP-SMA-K (External antenna)
Standards: 802.11 b/g/n, supports AP and Client modes
Frequency bands: 2.4 GHz
Security: WEP, WPA, WPA2
Encryption: 64/128 AES, TKIP
Data speed: 2 x 2 MIMO, 300 Mbps

Serial Interface
Type: 1 x RS232 or 1 x RS485 (Hardware configuration)
Connector: 3-pin 3.5 mm female socket
Baud rate: 300 bps ~ 115200 bps

Others
Reset button: 1 x RST
LED indicators: 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WLAN
Built-in: Watchdog, Timer

Software (Basic features of RobustOS)
Network protocols: PPPoE, DHCP, NAT, DNS, SSH2, DDNS, etc.
VPN tunnel: IPsec, OpenVPN, GRE
Firewall: DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote management: Web, CLI, SMS

SDK
Supported programming languages: C, C++
Flash available for SDK: 4 MB
RAM available for SDK: 64 MB

Power Supply and Consumption
Connector: 2-pin 3.5 mm female socket
Input voltage: 9 ~ 36 VDC
Power consumption: Idle: 100 mA@12 V
Data link: 500 mA (peak) @12 V

Physical Characteristics
Ingress protection: IP30
Housing & Weight: Plastic, 150 g
UL 94: V-0, 5 VB
Dimensions: 91.5 x 91.5 x 31.5 mm
Installations: Desktop, wall mounting, and 35 mm DIN rail mounting
Operating temperature: -25 ~ +70 °C
Storage temperature: -40 ~ +85 °C
Relative humidity: 5 ~ 95% RH

Regulatory and Type Approvals
Environmental: RoHS2.0
EMI: EN 55032: 2012/AC: 2013 (CE & RE) Class B
EMS: IEC 61000-4-2 (ESD) Contact Level 2, IEC 61000-4-3 (RS) Level 2, IEC 61000-4-4 (EFT) Level 2, IEC 61000-4-5 (Surge) Level 2, IEC 61000-4-6 (CS) Level 2
