Wired Ethernet: One auto MDI-X RJ45 2.5 Gbps Ethernet with US PoE in One auto MDI-X RJ45 1 Gbps Ethernet with US PoE out
Wireless Protocol: WORP® (Wireless Outdoor Router Protocol)
Extension: One SFP+ port for Fiber or Copper 10 Gbps SFP module
MIMO: 2×2:2 and 4×4:4
Modulation: OFDM BPSK-QAM1024
Frequency: 5.150 – 5.925 GHz (Subject to Country Regulations)
Channel Size: 20, 40, and 80 MHz (80+80 and 160 MHz via future upgrade)
TX Power: Up to 26 dBm (dual chain) or 29 dBm (quad chain)
TX Power Control: 0 – 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit

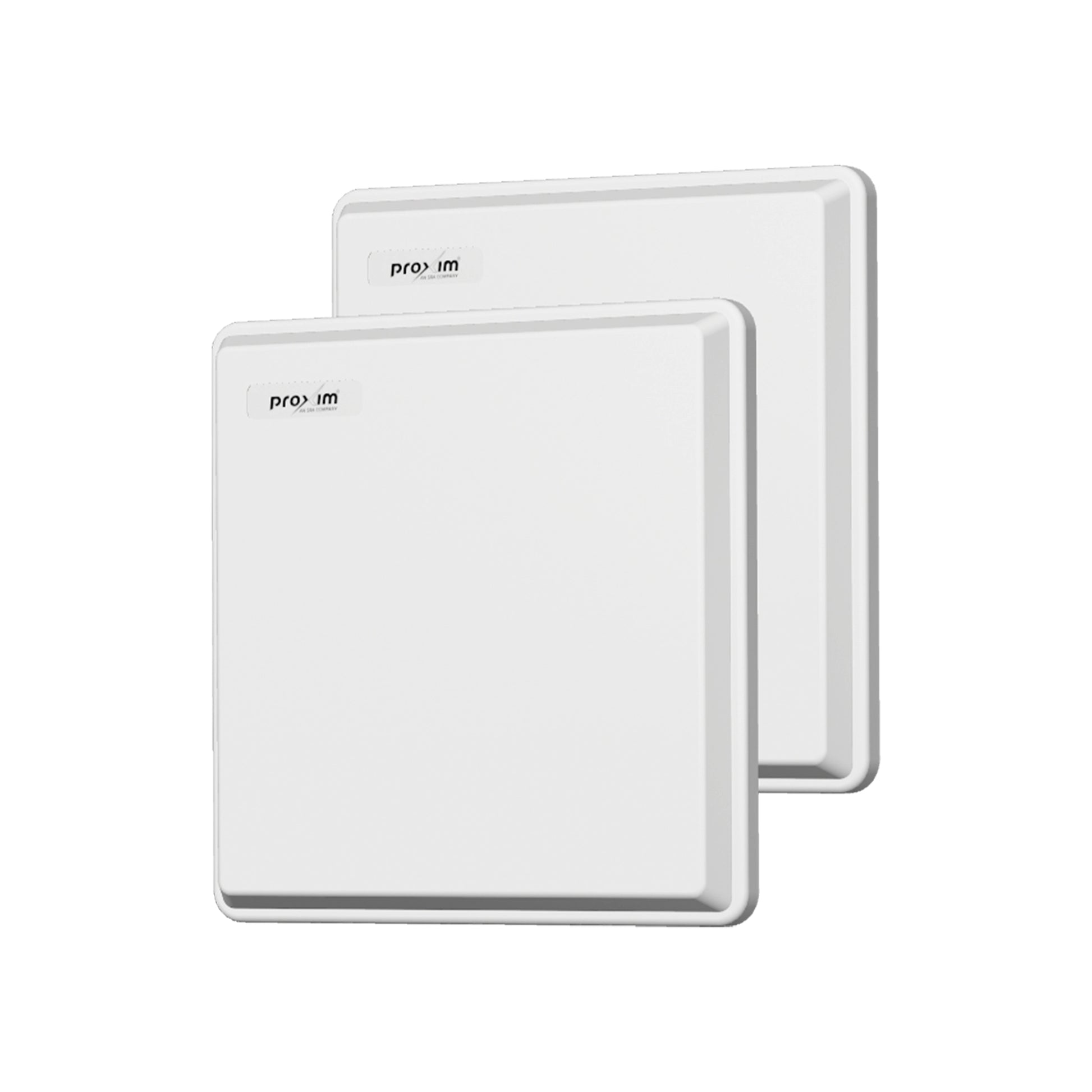

Antenna Type: Integrated 4×4 MIMO 18 dBi Quad Polarized 19 degree Panel Antenna plus Four RP-SMA Connectors
Modes: Bridging, (Routing to be added by future firmware update)
IP Stack: IPv4 and IPv6 simultaneously
VLAN: 802.1Q: Management VLAN. Transparent, Access, Trunk, and Mixed mode. QinQ double tagging
Power Consumption: 25 W typical in MIMO 4×4 mode
Power Supply: 802.3at/bt compliant
Temperature: OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity: 100% relative humidity
IP Rating: IP67
Dimensions Packaged: 16.34 x 16.34 x 16.85 in (415 x 415 x 485 mm)
Dimensions Unpackaged: 14.60 x 14.60 x 3.82 in (371 x 371 x 97 mm)
Weight (PACKAGED): 30.42 lbs (13.8 kg)
Weight (UNPACKAGED): 6.61 lbs (3.0 kg)
Standards and Certifications: USA: FCC part 15B class A (EMC), part 15C (Bluetooth), and part 15E (5 GHz radio), CANADA: RSS-247 issue 2, RSS-102 issue 5, ICES-003 issue ,7 Europe: RSS-247 issue 2, RSS-102 issue 5, ICES-003 issue 7
Safety: IEC 62368-1:2014 & 60950-22:2016 CAN/CSA C22.2 No 62368-1:14 & No 60950-22:17 EN 62368-1:2014 + A11:2017 & 60950-22:2017
Wind Loading: 180 km/h (112.5 mph)
MTBF: 450,000 hours, 2-year warranty, ServPak Extended Support available.
