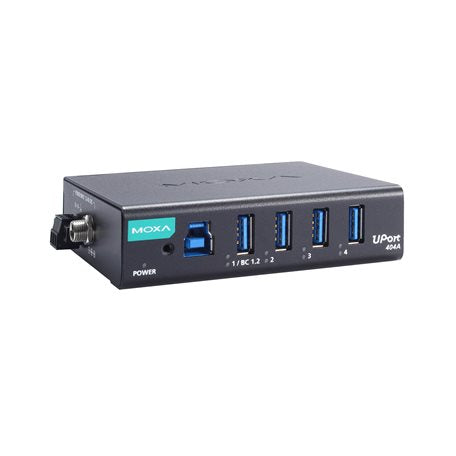

MOXA UPORT 404A INDUSTRIAL USB HUB

MOXA UPORT 404A INDUSTRIAL USB HUB

$390.00 CAD
$390.00 CAD
Sale Sold out

Features and Benefits

  • 4 x USB 3.2 ports
  • 12 to 40 VDC dual power inputs
  • Metal body
  • 0 to 60°C operating temperature
View full details

Description

The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs.

In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

Data sheet

Specification

USB: Yes: 5 (UFP 1, DFP 4)
Micro USB: No
USB interface: UFP: type B, DFP: type A
Upstream USB: -
Interface and ports standards: USB 1.1/2.0 compliant, USB 3.2 Gen 1
Maximum cable length between each hub: -
Maximum number of connected devices: -
Maximum cable data transfer speed: -
Compatible operating systems: -
Output Power USB Port: Port 1: 900 mA / 1500 mA @ 5 VDC, BC 1.2 compliant, Rest of ports: 900 mA @ 5 VDC
Input Power: 12 to 48 VDC
Housing: Metal
Operation Humidity: 5% to %95 non-condensing
Standards and Certifications: EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV/ Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; IEC 61000-4-8 PFMF; Safety: EN 62368-1, UL 62368-1, KC; Environmental Testing: IEC 60068-2-1; RoHS; CRoHS; WEEE
USB HUB: LED INDICATORS
Status indicator: Yes
Power adapter: Yes
USB cable: Yes
Hardware installation guide: Yes
