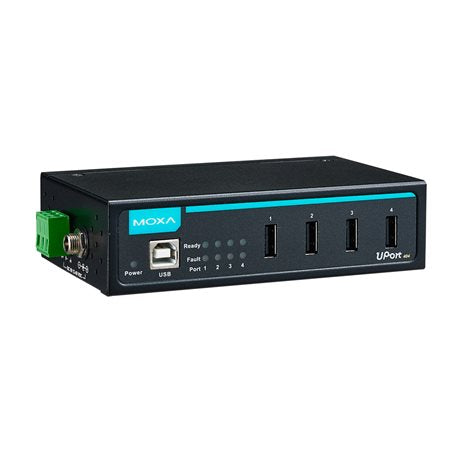

MOXA UPORT 404 4-PORT INDUSTRIAL USB HUB

MOXA UPORT 404 4-PORT INDUSTRIAL USB HUB

$358.00 CAD
$358.00 CAD
Sale Sold out

Features and Benefits

  • 4 x USB 1.1/2.0 ports
  • 12 to 40 VDC dual power inputs
  • Aluminum body
  • 0 to 60°C operating temperature
View full details

Description

The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs.

In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

Data sheet

Specification

USB: Yes - 4 USB type A Ports
Micro USB: No
USB Interface: No
Upstream USB: Yes - 1 USB type B Port
Interface and Ports Standards: USB 2.0, USB 1.1
Maximum Cable Length Between Each Hub: Not specified
Maximum Number of Connected Devices: Not specified
Maximum Cable Data Transfer Speed: 480Mbps for USB 2.0 and 12Mbps for USB 1.1
Compatible Operating Systems: Not specified
Output Power USB Port: For each port with a maximum flow of 0.5A
Input Power: 12V DC to 40V DC and 12V DC 2.3A, 24V DC 1.13A, 36V DC 0.79A
Housing: Aluminium
Weight: 0.95Kg
Dimensions: 80x35x130mm.
Operating Temperature: 0 to 60 °C
Operation Humidity: 5% to %95 non-condensing
Standards and Certifications: Safety: UL 508, LVD; EMC: CE, FCC; EMI: EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A; EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11; Green Product: RoHS, CRoHS, WEEE
Status Indicator: Yes
Power Adapter: Yes
USB Cable: Yes
Hardware Installation Guide: Yes
