Moxa

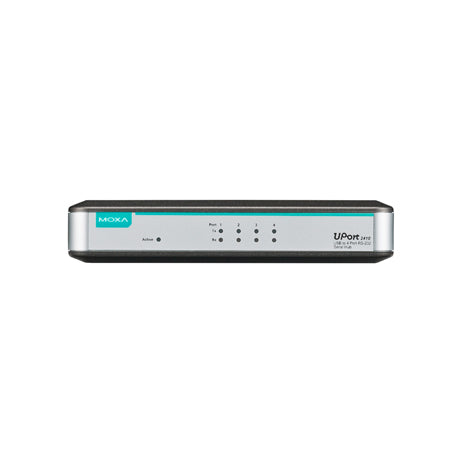

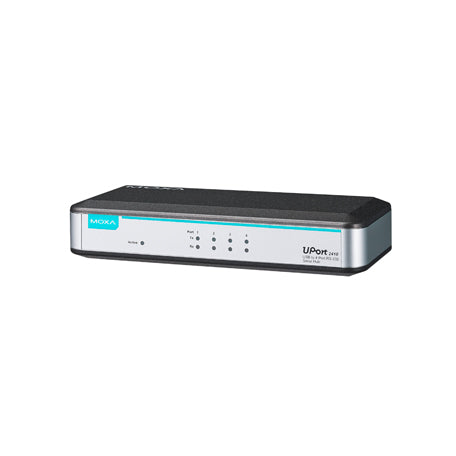

MOXA UPORT 2410 USB TO SERIAL CONVERTER

MOXA UPORT 2410 USB TO SERIAL CONVERTER

$282.00 CAD
$282.00 CAD
Sale Sold out

Features and Benefits

  • 1 x USB 1.1/2.0 port and 4 x RS-232 Serial port
  • 5 VDC input power
  • Polycarbonate (PC) body
  • 0 to 55°C operating temperature
View full details

Description

The UPort® 2210/2410 USB-to-serial converters allow you to connect two or four RS-232 devices to your laptop or workstation through the USB port. The UPort® 2210 and UPort® 2410 are cost-effective solutions for both new and legacy RS-232 devices, and they are perfect for mobile, instrumentation, and point-of-sale applications.

Data sheet

Specification

Interface Type: USB 2.0
Connection type: USB type B
Speed: 480Mbps
Total number of serial ports: 4 RS-232 Ports
Serial connection type: DB9-M
Serial Communication Parameters: Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Protection against electrostatic discharge: 15KV
Power Consumption: 5V DC 0.24A
Dimensions: 80x35x185mm
Housing: Plastic (polycarbonate)
Operating Temperature: 0 to 55 ° C
Storage Temperature: -20 to 75 ° C
Operation Humidity: 5% to %95 RH non-condensing
