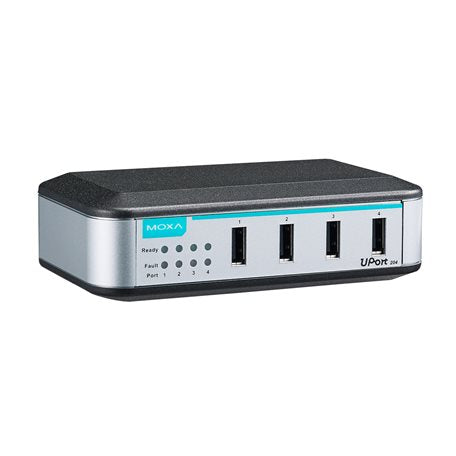

MOXA UPORT 204 4-PORT INDUSTRIAL USB HUB

MOXA UPORT 204 4-PORT INDUSTRIAL USB HUB

$250.00 CAD
$250.00 CAD
Sale Sold out

Features and Benefit

  • 4 x USB 1.1/2.0 ports
  • 12 to 40 VDC input power
  • Polycarbonate (PC) body
  • 0 to 60°C operating temperature

    View full details

    Description

    The UPort® 204 and UPort® 207 are entry-level USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications.

    The UPort® 204 and UPort® 207 have received the USB-IF Hi-Speed certification and are fully plug-and-play. 500 mA of power per port ensures that your USB devices will function properly, and using 12 to 40 VDC of power makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

    Data sheet

    Specification

    USB: 4 USB type A Ports
    Upstream USB: 1 USB type B Port
    Interface and ports standards: USB 2.0, USB 1.1
    Maximum cable data transfer speed: 480Mbps for USB 2.0 and 12Mbps for USB 1.1
    Input Power: 12V DC to 40V DC and 12V DC 1.21A ،24V DC 0.61A ،36V DC 0.43A
    Housing: Plastic (polycarbonate)
    Dimensions: 70x35x120mm
    Operating Temperature: 0 to 60
    Operation Humidity: 5% to %95 non-condensing
    Standards and Certifications: Safety: UL 508, LVD; EMC: CE, FCC; EMI: EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A; EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11; Green Product: RoHS, CRoHS, WEEE
