• UPort 1610-16 Moxa 8 Port USB to Serial Converter RS232 422 485
1 1

Moxa

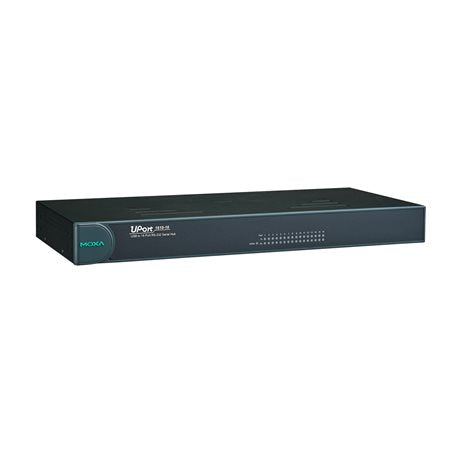

MOXA UPORT 1610-16 USB TO SERIAL CONVERTER

MOXA UPORT 1610-16 USB TO SERIAL CONVERTER

$973.00 CAD
$973.00 CAD
Sale Sold out
We have 1 in stock

Features and Benefits

  • 1 x USB 1.1/2.0 port and 16 x RS-232 Serial port
  • 100 to 240 VAC input power
  • Metal body
  • 0 to 55°C operating temperature
View full details

Description

The UPort® 1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

Data sheet

Specification

Interface Type: USB 2.0
Connection type: USB type B
Speed: 480Mbps
Total number of serial ports: 16 RS-232 Ports
Serial connection type: DB9-M
Serial Communication Parameters: Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Power Consumption: 100V DC to 240V DC
Dimensions: 440x45.5x198.1mm
Housing: Metal
Operating Temperature: 0 to 55 ° C
Storage Temperature: -20 to 75 ° C
Operation Humidity: 5% to %95 RH non-condensing
