Moxa

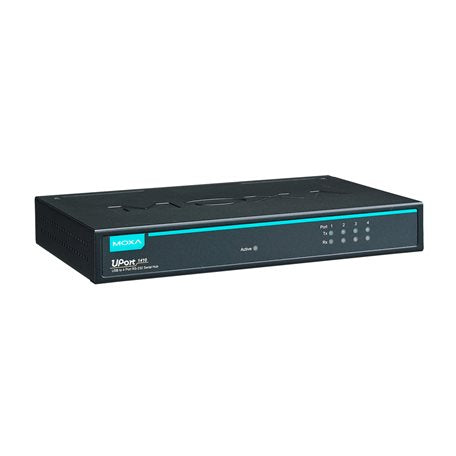

MOXA UPORT 1410 USB TO SERIAL CONVERTER

MOXA UPORT 1410 USB TO SERIAL CONVERTER

$330.00 CAD
$330.00 CAD
Sale Sold out
We have 10 in stock

Features and Benefit

  • 1 x USB 1.1/2.0 port and 4 x RS-232 Serial port
  • 12 to 48 VDC input power
  • Metal body
  • 0 to 55°C operating temperature

    View full details

    Description

    The UPort® 1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

    The UPort® 1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

    Data sheet

    Specification

    Interface Type: USB 2.0
    Connection Type: USB type B
    Speed: 480Mbps
    Total Number of Serial Ports: 4 RS-232 Ports
    Serial Connection Type: DB9-M
    Serial Communication Parameters: Data Bits: 5, 6, 7, 8 and Stop Bits: 1, 1.5, 2 and Parity: None, Even, Odd, Space, Mark
    Flow Control: RTS/CTS, XON/XOFF
    FIFO: 128 bytes
    Data Transfer Speed (Baudrate): 0.05Kbps to 921.6Kbps
    Protection Against Electrostatic Discharge: 15KV
    Electrical Isolation: No
    Windows 98, Windows ME: No
    Windows 2000: Yes
    Windows XP x86, x64, Windows 2003 x86, x64: Yes
    Windows Vista x86, x64: Yes
    Windows 7 x86, x64: Yes
    Windows 8.1 x86, x64, Windows 8 x86, x64: Yes
    Windows 2012 x64: Yes
    Windows 2008: Yes
    WinCE 5.0, WinCE 6.0: Yes
    Linux 2.4.x: Yes
    Linux 2.6.x: Yes
    Linux 3.0.x: Yes
    Power Consumption (Output Adapter): 12V DC, 0.18A
    Dimensions: 204x30x125mm
    Safety: UL 60950-1
    EMI: EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A
    EMS: EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
    Green Product Standard: RoHS, CRoHS, WEEE
    Housing: Metal
    Operating Temperature: 0 to 55°C
    Storage Temperature: -20 to 70°C
    Operation Humidity: 5% to %95 RH non-condensing
    Weight: 0.72Kg
