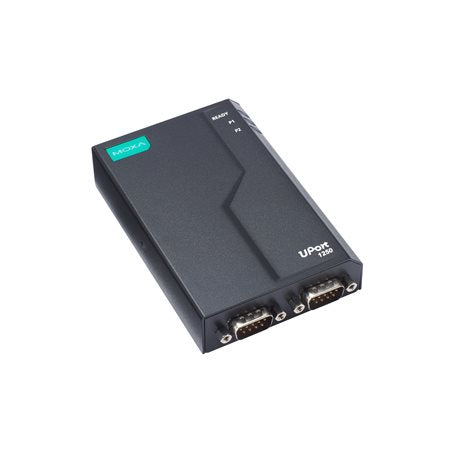

MOXA UPort 1250-G2 USB TO SERIAL CONVERTER

USB Interface
Interface Type: USB 3.2 Gen 1, USB 1.1/2.0 compliant
Connection Type: USB Type B
Speed: 5 Gbps, 480 Mbps, 12 Mbps
Serial Interface
Total Number of Serial Ports: 2-port RS-232/422/485
Serial Connection Type: DB9 male
Serial Communication Parameters:
Parity: None, Even, Odd, Space, Mark
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Flow Control: RTS/CTS, XON/XOFF
FIFO: 512 bytes
Data Transfer Speed (Baudrate): 50 bps to 921.6 kbps (supports non-standard baud rates)
Protection Against Electrostatic Discharge: Not specified
Electrical Isolation: No
Compatible Operating Systems
Supported:
Windows 2000
Windows XP x86/x64, Windows 2003 x86/x64
Windows 7 x86/x64
Windows 8/8.1 x86/x64
Windows 2012 x64
Windows 2008
Not Supported:
Windows 98, Windows ME
Windows Vista x86/x64
WinCE 5.0, WinCE 6.0
Linux 2.4.x, 2.6.x, 3.0.x
Power Requirements
Power Consumption: 5 VDC via USB bus power
Physical Characteristics
Dimensions: 75.8 x 25.0 x 111.0 mm (2.98 x 0.98 x 4.37 in)
Weight: 259 g (0.57 lb)
Housing: Metal
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: IEC 62368-1, EN 62368-1, UL 62368-1 (CB), KC
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz
IEC 61000-4-8 PFMF
Green Product Standard: RoHS, CRoHS, WEEE
