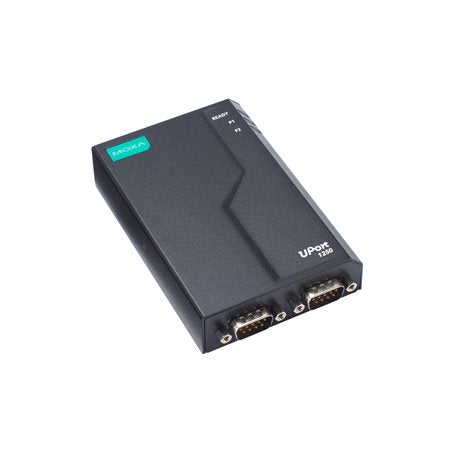

MOXA UPort 1250-G2-T USB TO SERIAL CONVERTER

MOXA UPort 1250-G2-T USB TO SERIAL CONVERTER

$376.00 CAD
$376.00 CAD
Sale Sold out

Features and Benefits

  • 2-port RS-232/422/485
  • -40 to 75°C Operating Temperature
  • Power Input: USB bus power
  • USB 3.2 SuperSpeed capability
  • 50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
  • 512-byte on-chip FIFO cache and flow control for enhanced performance
  • Double-sided LEDs located at the corners show power, TX, and RX statuses in either direction
View full details

Description

Introduction
The UPort® 1200-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion. They are essential for computers that need to connect different serial devices in the field or need separate interface converters for devices without a standard COM port or DB9 connector.

The computers also come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer. The UPort® 1200-G2 Series converts from USB to RS-485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

You can also find the models in the UPort 1200-G2 Series.

Data sheet

Specification

USB Interface
Interface Type: USB 3.2 Gen 1, USB 1.1/2.0 compliant
Connection Type: USB Type B
Speed: 5 Gbps, 480 Mbps, 12 Mbps
Serial Interface
Total Number of Serial Ports: 2-port RS-232/422/485
Serial Connection Type: DB9 male
Serial Communication Parameters:
Parity: None, Even, Odd, Space, Mark
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Flow Control: RTS/CTS, XON/XOFF
FIFO: 512 bytes
Data Transfer Speed (Baudrate): 50 bps to 921.6 kbps (supports non-standard baud rates)
Protection Against Electrostatic Discharge: Not specified
Electrical Isolation: No
Compatible Operating Systems
Supported:
Windows 2000
Windows XP x86/x64, Windows 2003 x86/x64
Windows 7 x86/x64
Windows 8/8.1 x86/x64
Windows 2012 x64
Windows 2008
Not Supported:
Windows 98, Windows ME
Windows Vista x86/x64
WinCE 5.0, WinCE 6.0
Linux 2.4.x, 2.6.x, 3.0.x
Power Requirements
Power Consumption: 5 VDC via USB bus power
Physical Characteristics
Dimensions: 75.8 x 25.0 x 111.0 mm (2.98 x 0.98 x 4.37 in)
Weight: 259 g (0.57 lb)
Housing: Metal
Environmental Limits
Operating Temperature: -40 to 75°C (32 to 140°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: IEC 62368-1, EN 62368-1, UL 62368-1 (CB), KC
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz
IEC 61000-4-8 PFMF
Green Product Standard: RoHS, CRoHS, WEEE
