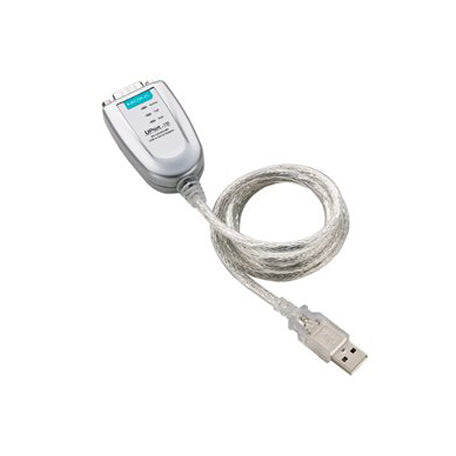

MOXA UPORT 1150 USB TO SERIAL CONVERTER

MOXA UPORT 1150 USB TO SERIAL CONVERTER

$143.00 CAD
$143.00 CAD
Sale Sold out
We have 23 in stock

Features and Benefits

  • 1 x USB 1.0/1.1/2.0 port and 1 x RS-232/422/485 Serial port
  • 5 VDC input power
  • ABS+PC body
  • 0 to 55°C operating temperature
View full details

Description

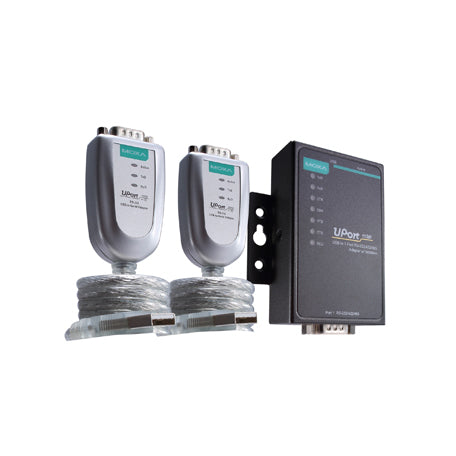

The UPort® 1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

Data sheet

Specification

Interface Type: USB 2.0
Connection type: USB type A
Speed: 12Mbps
Total number of serial ports: 1 RS-232/422/485 Port
Serial connection type: DB9-M with a mini DB9-F converter to the terminal
Serial Communication Parameters: Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Protection against electrostatic discharge: 15KV
Power Consumption: 5V DC 0.077A
Dimensions: 38.4x60x20mm
Housing: ABS + PC
Operating Temperature: 0 to 55 ° C
Storage Temperature: -20 to 75 ° C
Operation Humidity: 5% to %95 RH non-condensing
