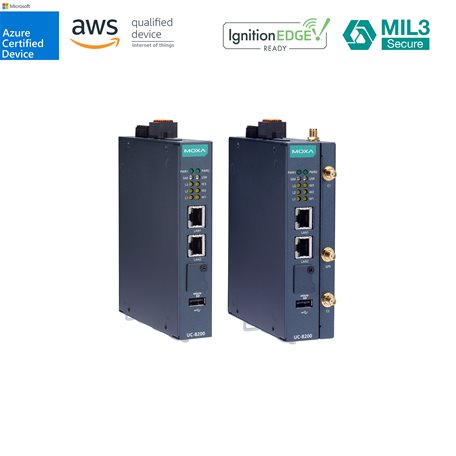

MOXA UC-8220-T-LX-AP-S INDUSTRIAL EMBEDDED COMPUTER

MOXA UC-8220-T-LX-AP-S INDUSTRIAL EMBEDDED COMPUTER

$1,410.00 CAD
$1,410.00 CAD
Sale Out of Stock

Features and Benefits

  • Armv7 Cortex-A7 dual-core 1 GHz
  • ISA Secure IEC 62443-4-2 Security Level 2 certified with Moxa Industrial Linux 3 Secure
  • Moxa Industrial Linux with 10-year superior long-term support
  • LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
  • Dual SIM slots
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • Integrated LTE Cat. 4 module with US/EU/APAC band support
  • 1 CAN port supports CAN 2.0A/B
  • microSD socket for storage expansion
View full details

Description

The UC-8200 computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and one CAN port as well as dual Mini PCIe sockets to support Wi-Fi/cellular modules. These versatile capabilities let users efficiently adapt the UC-8200 to a variety of complex communications solutions.

The UC-8200 is built around a Cortex-A7 dual-core processor that has been optimized for use in energy monitoring systems but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.

Wide-temperature LTE-enabled models are available for extended-temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.
