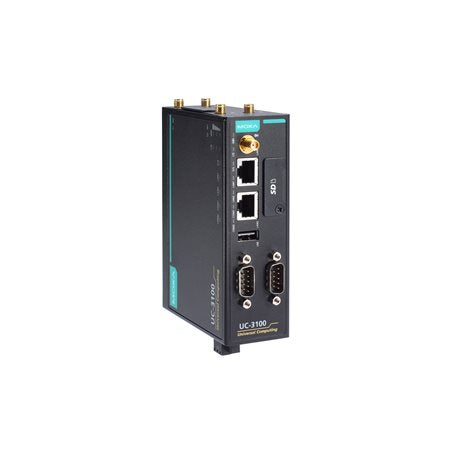

MOXA UC-3121-T-US-LX INDUSTRIAL EMBEDDED COMPUTER

MOXA UC-3121-T-US-LX INDUSTRIAL EMBEDDED COMPUTER

$969.00 CAD
$969.00 CAD
Sale Sold out

Features and Benefits

  • 1 x RS-232/422/485 Serial ports
  • 1 x CAN port
  • AT&T Carrier Approval
  • Armv7 Cortex-A8 1000 MHz processor
  • Integrated Wi-Fi 802.11a/b/g/n and LTE Cat. 1
  • Robust root file system to prevent the system from being bricked due to a firmware update failure
  • -30 to 70°C system operating temperature
  • Meets the EN 61000-6-2 and EN 61000-6-4 standards for industrial EMC applications
  • Supports Linux real-time OS mode
  • Moxa Industrial Linux with 10-year long-term support
View full details

Description

Moxa’s UC-3100 Series computers can be used as edge-field smart gateways for data pre-processing and transmission, as well as for other embedded data-acquisition applications. The UC-3100 Series includes three models, each supporting different wireless options and protocols. The UC-3100’s advanced heat dissipation design makes it suitable for use in temperatures ranging from -30 to 70°C. In fact, the Wi-Fi and LTE connections can be used simultaneously in both cold and hot environments, allowing you to maximize your “data pre-processing” and “data transmission” capability in most harsh environments. In addition, TPM v2.0 uses a hardware chip to boost data security, making it highly unlikely that hackers will be able to steal your data, either remotely or locally.

The UC-3100 is more than just a hardware solution. In order to offer a better user experience with a Moxa Arm-based computer, the UC-3100 supports the following software features, allowing you to use the most suitable configuration for your application.

• High VPN performance; greater than 70 Mbps Ethernet throughput with AES-256 encryption
• Robust file system to prevent the system from being bricked due to a firmware upgrade failure
• Cybersecurity auto-configuration system based on IEC 62443
• Real COM mode to provide a control interface to Moxa’s NPort products

In addition, Moxa provides 10 years of Linux OS support from Moxa’s customer support engineers.
With a new version of the Debian repository released on average every 2 to 3 years, long-term Linux OS support helps you create a reliable solution that will be supported now and long into the future.

Data sheet

Specification

CPU: ARMv7 Cortex-A8 1000 MHz
OS (pre-installed): Debian 9 (Kernel 4.4)
USB: 1 USB 2.0 host (type A connector)
LAN: 2 auto-sensing 10/100 Mbps ports (RJ45)
Magnetic Isolation Protection: 1.5 kV built-in
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: Even, Odd, Space, Mark, None
Flow Control: XON/XOFF, ADDC® (automatic data direction control) for RS-485
Baudrate: 921600 bps (max.)
RS-232: TxD, RxD, RTS, CTS, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Input Voltage: 9 to 36 VDC (3-pin terminal block, V+, V-, SG)
Input Current: 500 mA @ 12 VDC
Power Consumption: 6 W (with cellular module active)
Alert Tools: External RTC (real-time clock)
Automatic Reboot Trigger: External WDT (watchdog timer)
Speed: 10 kbps to 1 Mbps
Dimensions: 128.5 x 89.1 x 26 mm (5.06 x 3.51 x 1.02 in)
Housing: Al 5052
Operating temperature: -30 to 70°C (-22 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Relative humidity: 5 to 95% (non-condensing)
Standards and Certifications: LTE (FDD) 3GPP Rel.9 Compliant, IEEE 802.11a/b/g/n for Wireless LAN, IEEE 802.11i for Wireless Security, 1 or 2 RS-232/422/485 ports, software-selectable
EMC: IEC 61000-6-2/6-4
Weight: 550 g (1.22 lb)
Anti-Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis
Safety: UL 60950-1
Green Product: RoHS, CRoHS, WEEE
Anti-Shock: 20 g @ IEC 60068-2-27, half sine wave, 30 ms
Hazardous Location: C1D2, IECEx, ATEX
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz, 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: DC Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 30 A/m
Mounting: Wallmount, DIN-rail
