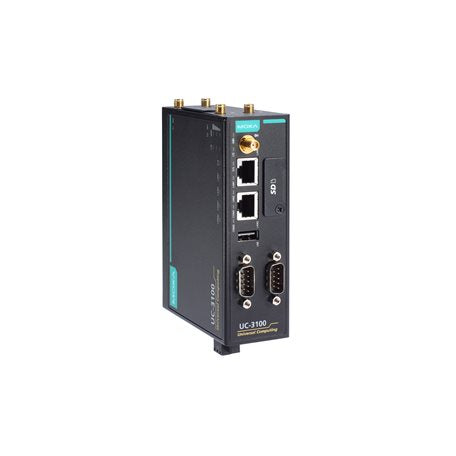

MOXA UC-3121-T-EU-LX INDUSTRIAL SMART GATEWAY/WIRELESS COMPUTER

CPU: ARMv7 Cortex-A8 1000 MHz
OS (pre-installed): Debian 9 (Kernel 4.4)
USB: 1 USB 2.0 host (type A connector)
LAN: 2 auto-sensing 10/100 Mbps ports (RJ45)
Magnetic Isolation Protection: 1.5 kV built-in
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: Even, Odd, Space, Mark, None
Flow Control: XON/XOFF, ADDC® (automatic data direction control) for RS-485
Baudrate: 921600 bps (max.)
RS-232: TxD, RxD, RTS, CTS, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
Input Voltage: 9 to 36 VDC (3-pin terminal block, V+, V-, SG)
Input Current: 500 mA @ 12 VDC
Power Consumption: 6 W (with cellular module active)
Alert Tools: External RTC (real-time clock)
Automatic Reboot Trigger: External WDT (watchdog timer)
Speed: 10 kbps to 1 Mbps
Dimensions: 128.5 x 89.1 x 26 mm (5.06 x 3.51 x 1.02 in)
Housing: Al 5052
Operating temperature: -30 to 70°C (-22 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Relative humidity: 5 to 95% (non-condensing)
Standards and Certifications: LTE (FDD) 3GPP Rel.9 Compliant, IEEE 802.11a/b/g/n for Wireless LAN, IEEE 802.11i for Wireless Security, 1 or 2 RS-232/422/485 ports, software-selectable
EMC: IEC 61000-6-2/6-4
Weight: 550 g (1.22 lb)
Anti-Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis
Safety: UL 60950-1
Green Product: RoHS, CRoHS, WEEE
Anti-Shock: 20 g @ IEC 60068-2-27, half sine wave, 30 ms
Hazardous Location: C1D2, IECEx, ATEX
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz, 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: DC Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 30 A/m
Mounting: Wallmount, DIN-rail
