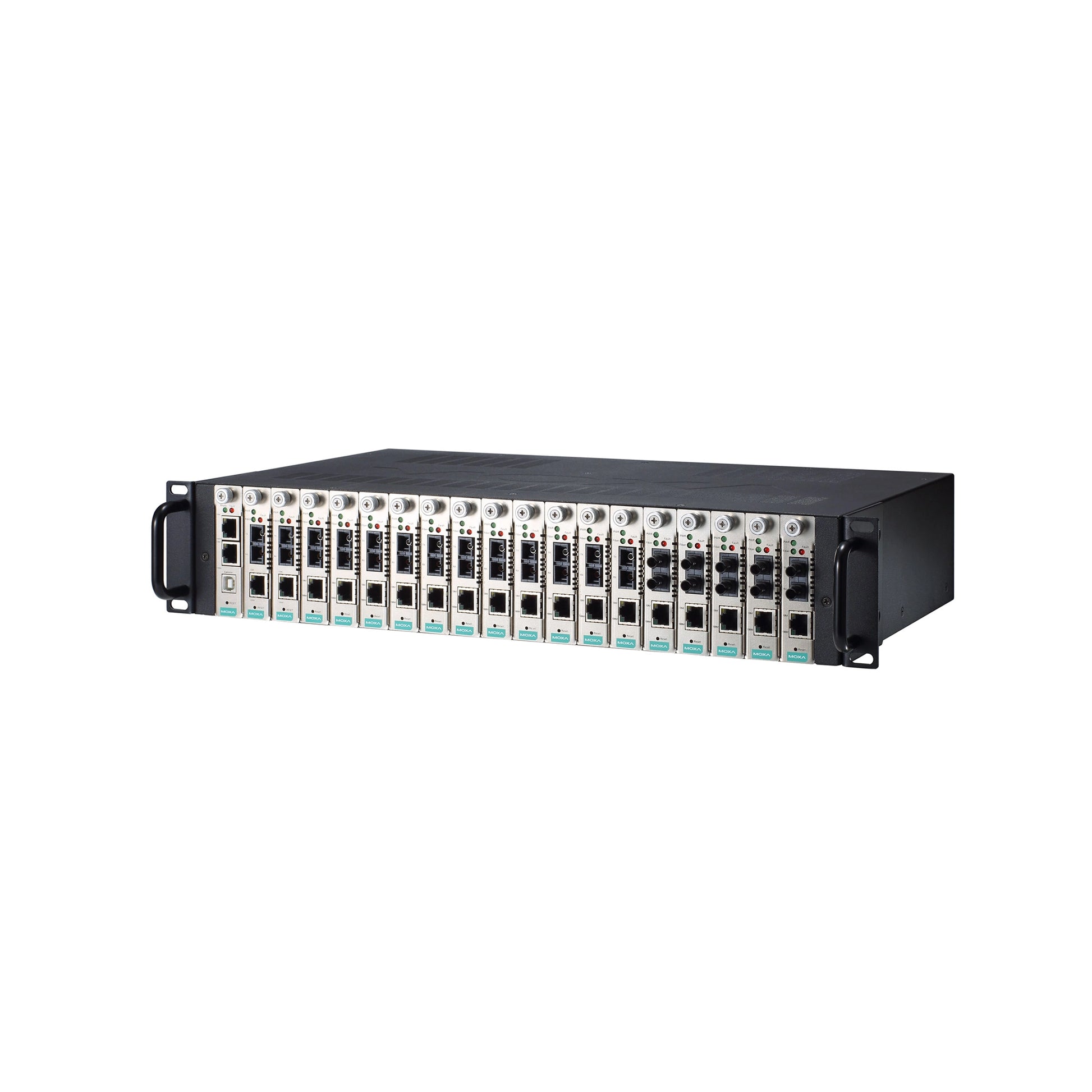

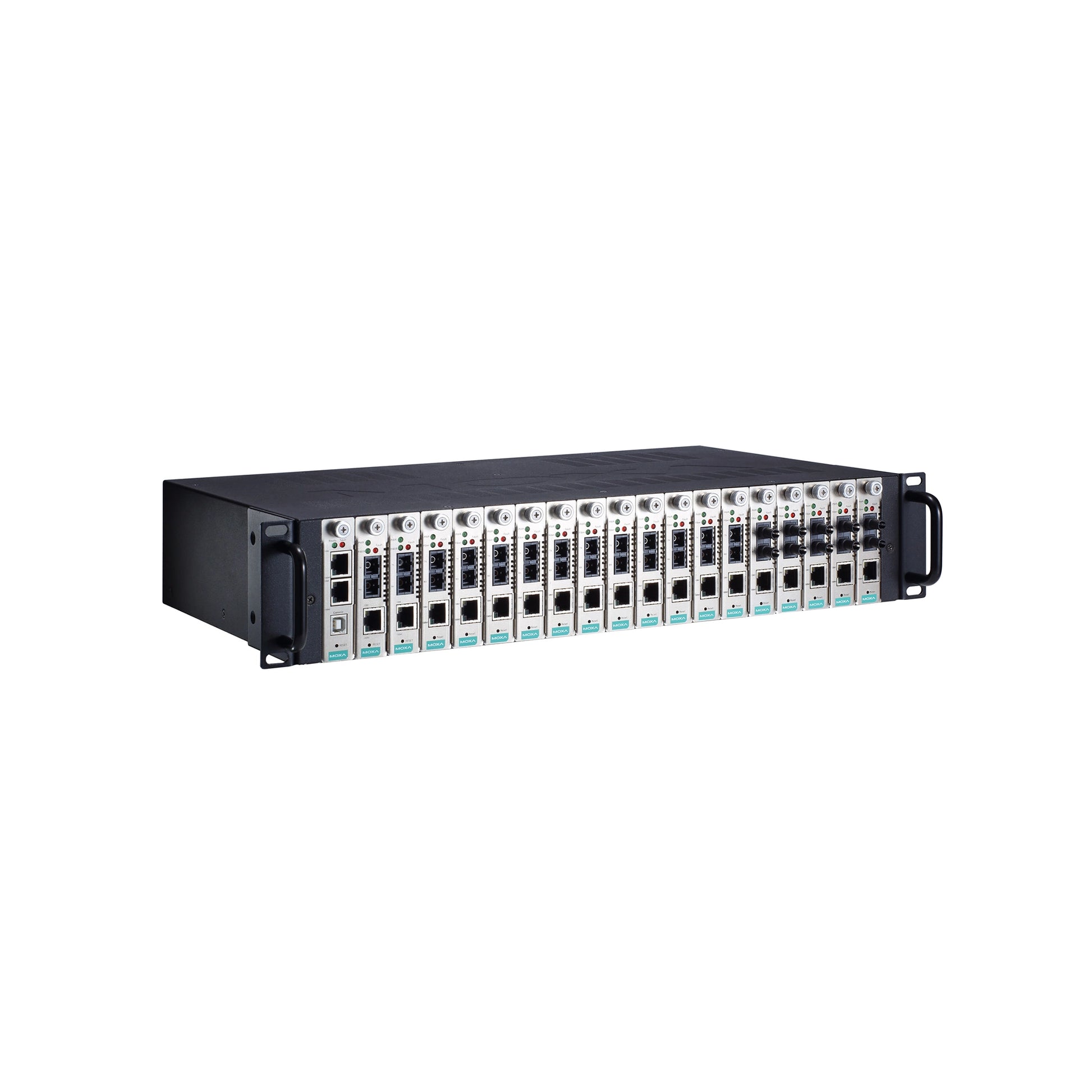

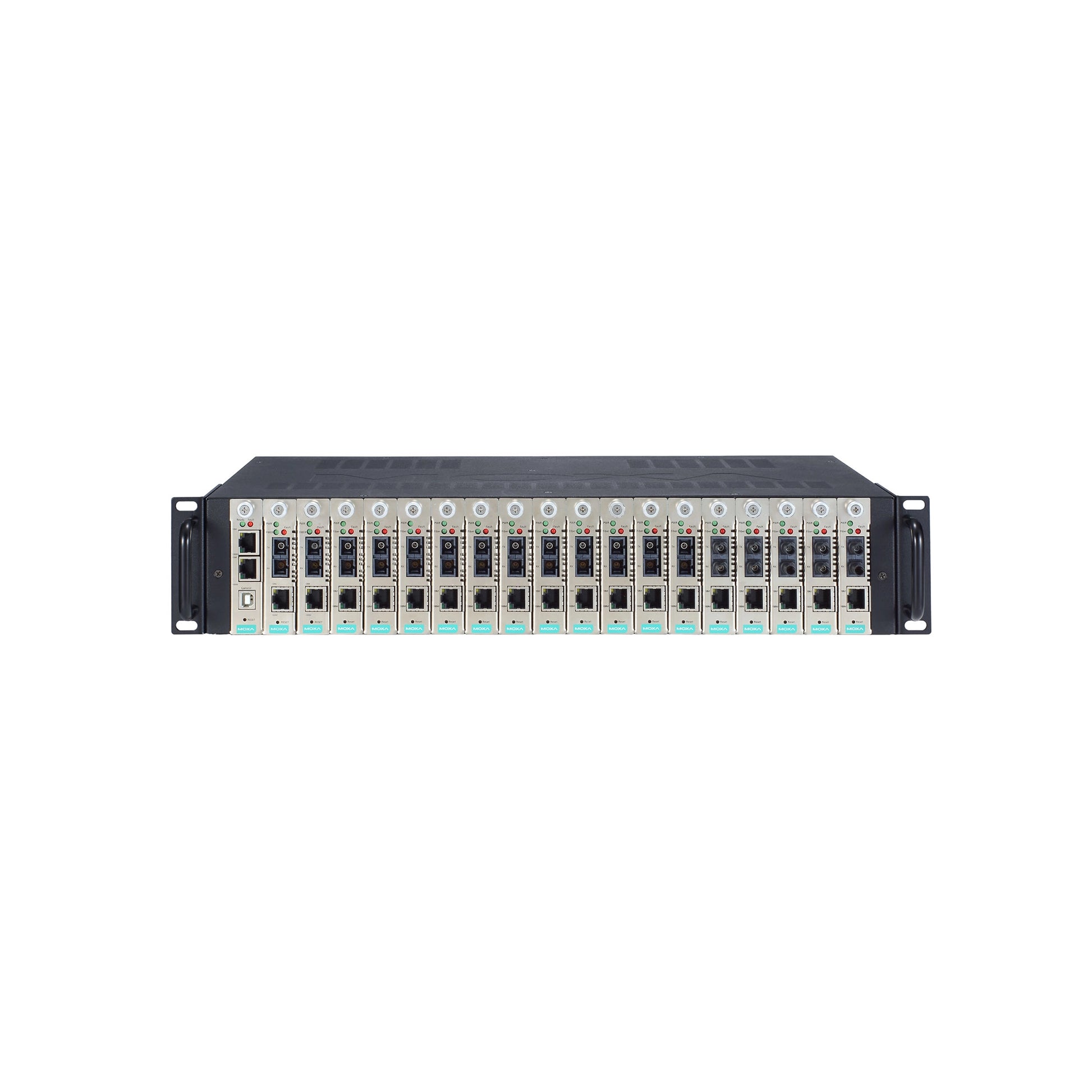

MOXA TRC-2190-DC-48V 19-inch Rackmount Chassis For Media Converter

$1,992.00 CAD

Sale Out of Stock

Product variants

Features and Benefits

0.2U rackmount chassis, 18 slots on the front panel, and CSM-MN01 managed module
48 VDC Input Voltage
-20 to 55°C Operating Temperature
19-inch chassis for rackmount use
18 slots for high-density applications
Supports dual power inputs with redundancy
Fanless chassis design reduces servicing costs
SNMP/web console for easy management

View full details

Description

The TRC-2190 Series provides 18 slots for media converter modules from the CSM-400 Series of Ethernet-to-fiber management modules. It also supports SNMP/web console for remote management and monitoring. A TRC-2190 chassis has one AC or DC power input, with an optional redundant power expansion module available for greater reliability. The TRC-2190 Series’ power input module supports a fanless chassis design and a -20 to 55°C operating temperature range.

Data sheet

Specification

Rackmount Chassis: Interface
No. of Slots: 18 slots for media converter modules from the CSM-400 Series of Ethernet-to-fiber management modules

Rackmount Chassis: Power Requirements
Input Voltage: 48 VDC
Power Consumption: 3.2 A @ 48 VDC
Overload Current Protection: Yes

Rackmount Chassis: Physical Characteristics
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Dimensions: 440 x 260 x 77 mm (18.6 x 11 x 3.3 in)
Installation: 19-inch rack mounting

Rackmount Chassis: General
Standards and Certifications: EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Safety: UL 62368-1, IEC 62368-1; Vibration: IEC 60068-2-6
MTBF: 1,055,112 hrs
