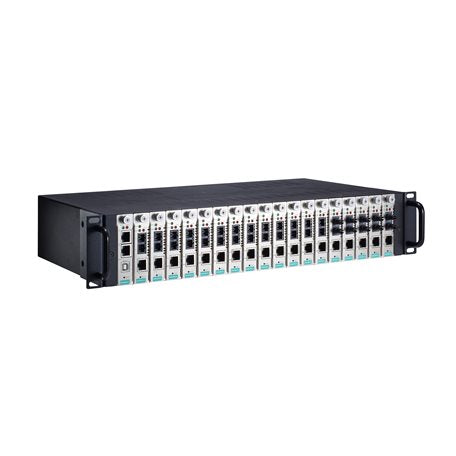

MOXA TRC-2190-AC 19-INCH RACKMOUNT CHASSIS FOR MEDIA CONVERTERS

MOXA TRC-2190-AC 19-INCH RACKMOUNT CHASSIS FOR MEDIA CONVERTERS

$1,500.00 CAD
$1,500.00 CAD
Sale Sold out

Features and Benefits

  • 19-inch chassis for rackmount use
  • 18 slots for high-density applications
  • Supports dual power inputs with redundancy
  • Fanless chassis design reduces servicing costs
  • SNMP/web console for easy management
  • -20 to 55°C operating temperature range
  • 19-inch chassis for rackmount use
  • 19 slots for high-density applications
  • Supports dual power inputs with redundancy
  • Fanless chassis design reduces servicing costs
View full details

Description

The TRC-2190 Series provides 18 slots for media converter modules from the CSM-400 Series of Ethernet-to-fiber management modules. It also supports SNMP/web console for remote management and monitoring. A TRC-2190 chassis comes with one AC or DC power input, with an optional redundant power expansion module available for greater reliability. The TRC-2190 Series’ power input module supports a fanless chassis design, as well as a -20 to 55°C operating temperature range.

Data sheet

Specification

Ethernet Interface
10/100BaseT(X) Ports: 2 (RJ45 connector).
Ethernet Software Features
Industrial Protocols: SNMPv1/v2c, SNMPv1/v2c Trap.
Management Features: DHCP Client, IPv4/IPv6, SNMPv1/v2c, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console.
MIB Support: MIB-II.
Security Features: HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH.
Time Management: NTP Client.
Security Functions
Authentication: Local database (password only), RADIUS, TACACS+.
Encryption: HTTPS, AES-128, AES-256, RSA-1024, SHA-1, SHA-256, SHA-384.
Security Protocols: SNMPv3, SSHv2, HTTPS (TLS 1.2).
Power Parameters
Input Voltage: TRC-2190-AC: 110 to 240 VAC; TRC-2190-DC-48V: 48 VDC.
Number of Power Inputs: 2.
Overload Current Protection: Supported.
Power Consumption: TRC-2190-AC: 1.5 A @ 100 to 240 VAC; TRC-2190-DC-48V: 3.2 A @ 48 VDC.
Physical Characteristics
IP Rating: IP30.
Dimensions: 440 x 260 x 77 mm (18.6 x 11 x 3.3 in).
Weight: 5.2 kg (11.4 lb).
Installation: 19-inch rack mounting.
Environmental Limits
Operating Temperature: -20 to 55°C (-4 to 131°F).
Storage Temperature: -40 to 85°C (-40 to 185°F).
Ambient Relative Humidity: 5 to 95% (non-condensing).
Standards and Certifications
EMC: EN 55032/35.
EMI: CISPR 32, FCC Part 15B Class A.
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV.
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m.
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV.
IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV.
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m.
IEC 61000-4-8 PFMF.
Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3.
Safety: UL 62368-1, IEC 62368-1.
Vibration: IEC 60068-2-6.
MTBF (Mean Time Between Failures)
Time: 1,055,112 hrs.
Standards: Telcordia (Bellcore), GB.
Warranty
Warranty Period: 5 years.
Details: Visit Moxa Warranty.
