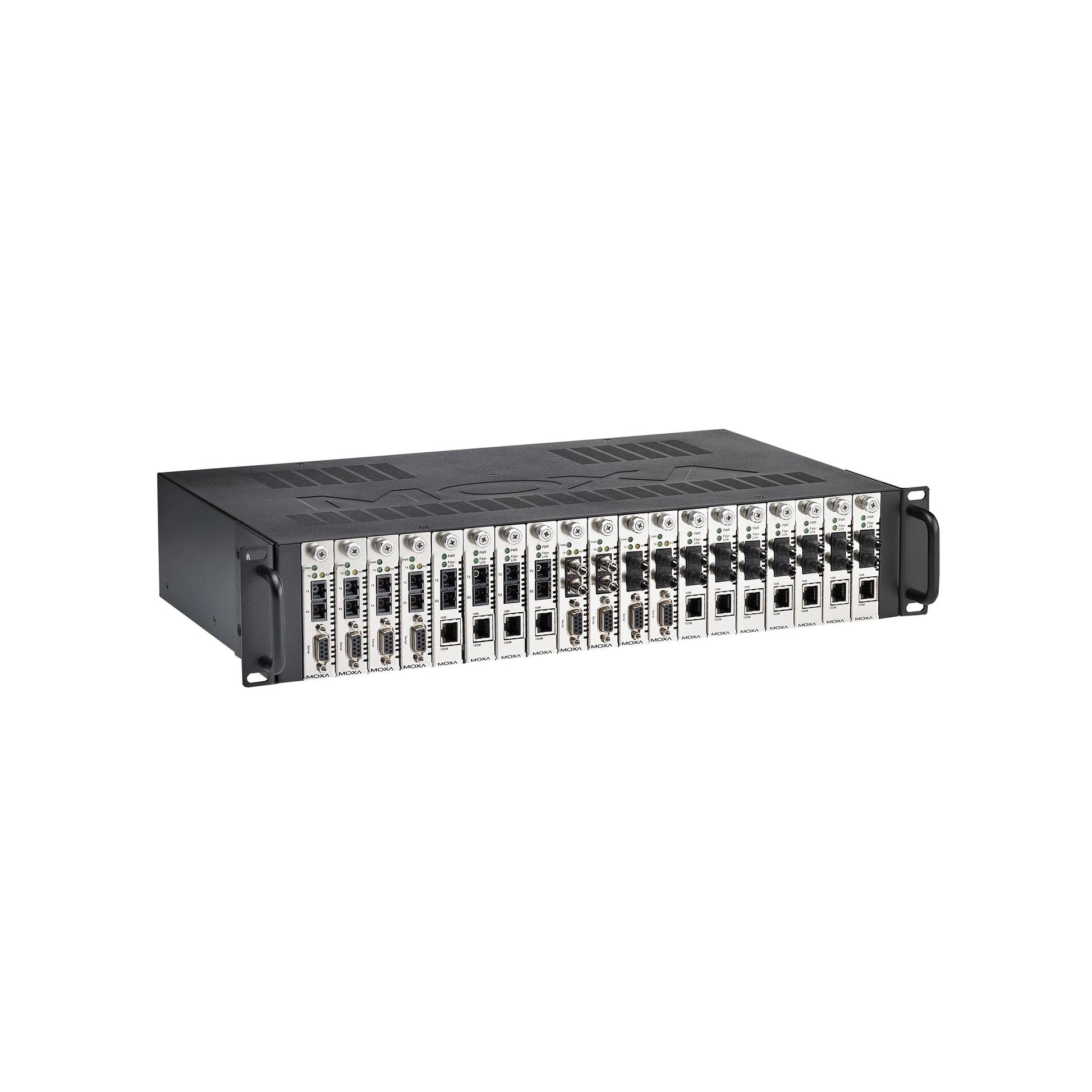

MOXA TRC-190-DC-48 19-inch Rackmount Chassis For Media Converter

MOXA TRC-190-DC-48 19-inch Rackmount Chassis For Media Converter

$1,487.00 CAD
$1,487.00 CAD
Sale Out of Stock

Features and Benefits

  • 19-inch chassis for rackmount use
  • 19 slots for high-density applications
  • Supports dual power inputs with redundancy
  • Fanless chassis design reduces servicing costs
View full details

Description

Introduction
The TRC-190 rackmount chassis Series provides 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and the TCF142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion AC or DC module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power modules can be installed at the same time.

Data sheet

Specification

INTERFACE
Ethernet Ports: -
No. of Slots: 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF142-RM Series of serial-to-fiber modules

POWER REQUIREMENTS
Input Voltage: 110 to 240 VAC (Redundant dual inputs)
Power Consumption: 1.5 A @ 100 to 240 VAC
Overload Current Protection: Supported

SECURITY
Authentication: -
Encryption: -
Security Protocols: -

GENERAL
Protocols: -
Management: -
Security: -

PHYSICAL CHARACTERISTICS
Standards and Certifications: EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC), IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: IEC 62368-1, UL 62368-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
MTBF: 1,055,112 hrs
Operating Temperature: 0 to 60°C (32 to 140°F)
Dimensions: 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in)
Installation: 19-inch rack mounting
Weight: 5200 g (11.4 lb)
