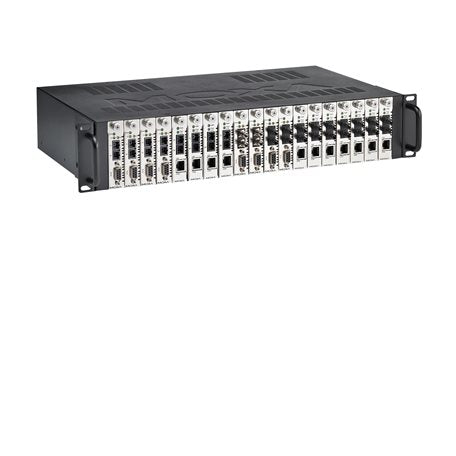

MOXA TRC-190-AC 19-INCH RACKMOUNT CHASSIS FOR MEDIA CONVERTERS

MOXA TRC-190-AC 19-INCH RACKMOUNT CHASSIS FOR MEDIA CONVERTERS

$1,043.00 CAD
$1,043.00 CAD
Sale Sold out

Features and Benefits

  • 19-inch chassis for rackmount use
  • 19 slots for high-density applications
  • Supports dual power inputs with redundancy
  • Fanless chassis design reduces servicing costs
View full details

Description

The TRC-190 rackmount chassis provides 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF-142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion AC or DC module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power modules can be installed at the same time.

Data sheet

Specification

Power Parameters
Input Voltage: TRC-190-AC: 110 to 240 VAC; TRC-190-DC-48: 48 VDC; Redundant dual inputs.
Number of Power Inputs: 2.
Overload Current Protection: Supported.
Power Consumption: TRC-190-AC: 1.5 A @ 100 to 240 VAC; TRC-190-DC-48: 3.2 A @ 36 to 53 VDC.
Physical Characteristics
Dimensions: 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in).
Installation: 19-inch rack mounting.
IP Rating: IP30.
Weight: 5200 g (11.4 lb).
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F).
Storage Temperature: -20 to 75°C (-4 to 167°F).
Ambient Relative Humidity: 5 to 95% (non-condensing).
Standards and Certifications
EMC: EN 55032/35.
EMI: CISPR 32, FCC Part 15B Class A.
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; IEC 61000-4-4 EFT: Power: 1 kV, Signal: 0.5 kV; IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m, Signal: 3 V/m; IEC 61000-4-8 PFMF.
Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3.
Safety: IEC 62368-1, UL 62368-1.
Vibration: IEC 60068-2-6.
MTBF (Mean Time Between Failures)
Time: 1,055,112 hrs; Standards: Telcordia (Bellcore), GB.
Warranty
Warranty Period: 5 years; Details: Moxa Warranty.
