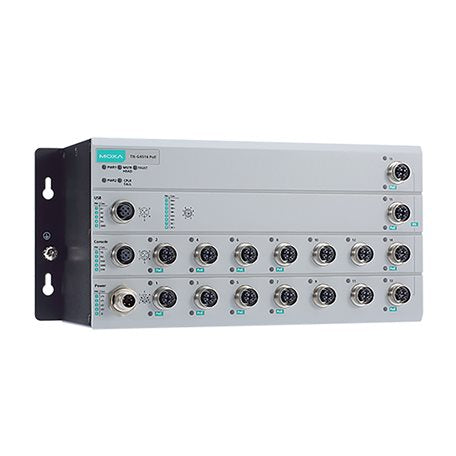

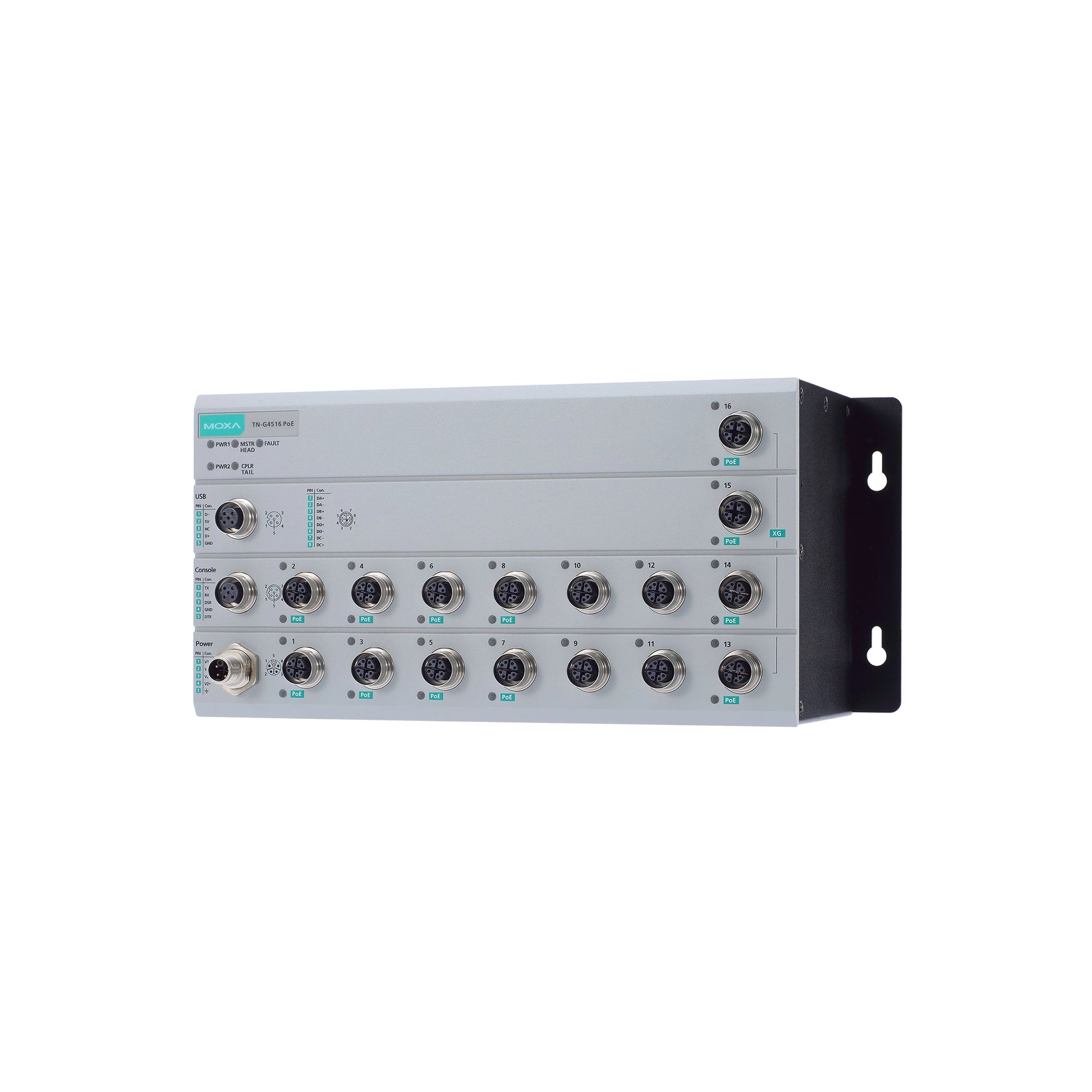

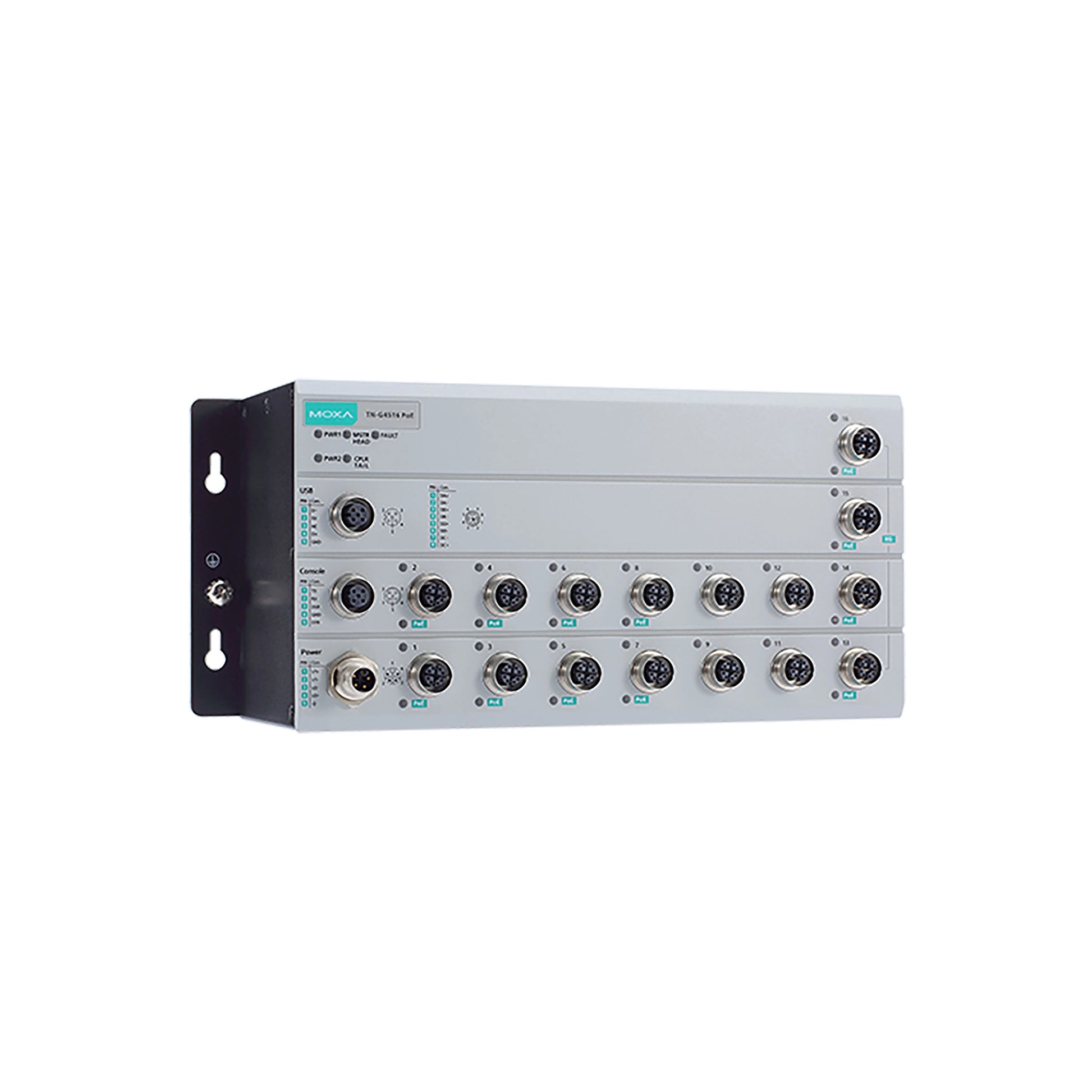

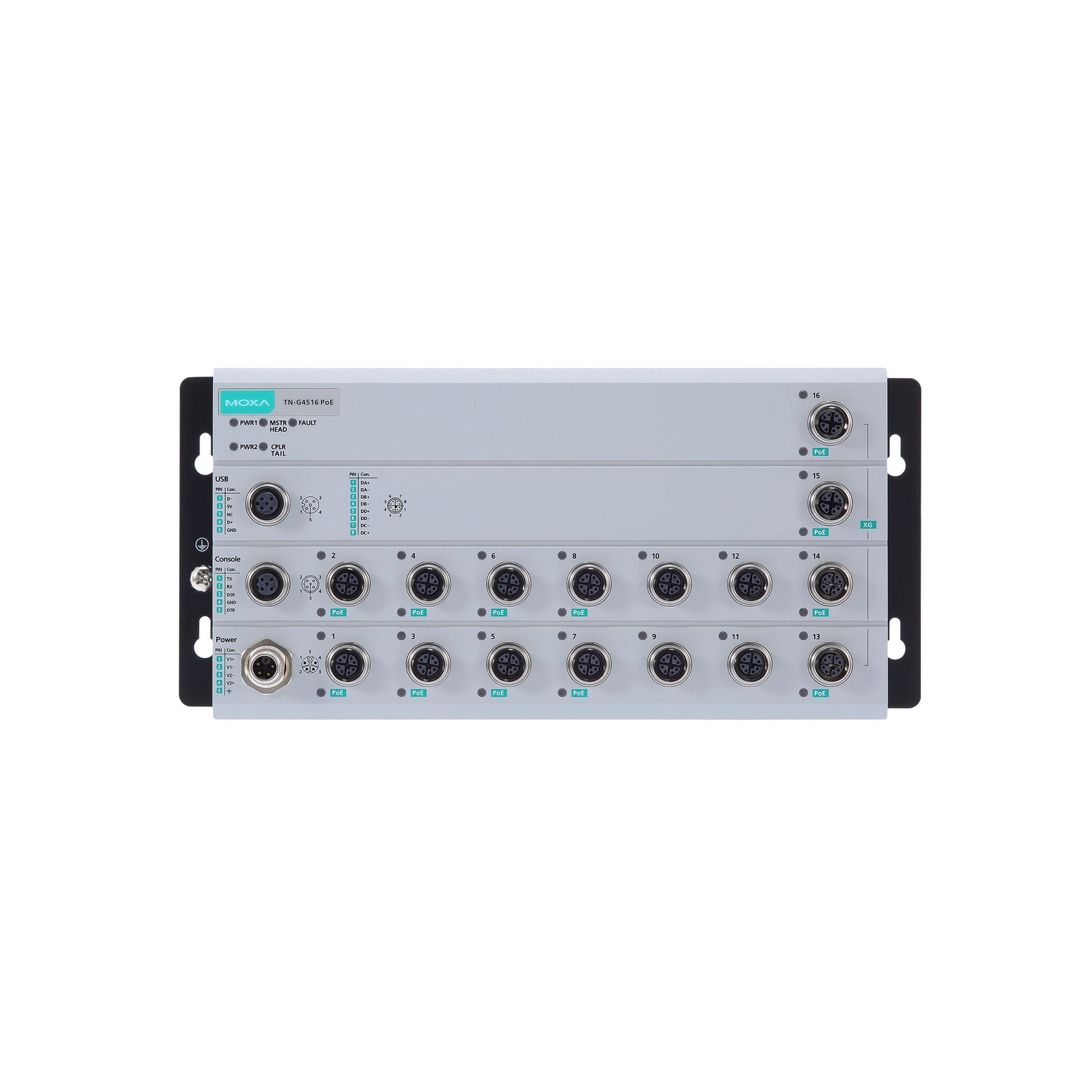

MOXA TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-T Managed Ethernet Switch

$10,133.00 CAD

Sale Sold out

Product variants

Quantity

Features and Benefits

4 10G ports and 12 Gigabit ports with push-pull M12 connectors
Isolated power with 24 to 110 VDC power supply range
Complies with all EN 50155 mandatory test items
-40 to 70°C operating temperature range
Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
12 IEEE 802.3at/af compliant PoE and Ethernet combo ports
Provides up to 30 W per PoE port

View full details

Description

Introduction
The ToughNet TN-G4500 Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. These switches are equipped with M12 and similar circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibrations and shock are commonplace. The TN-G4500 Series Ethernet switches provide 4 10G Ethernet M12 ports with PoE functionality, 16 Gigabit Ethernet M12 ports, and 8 ports with PoE functionality. These PoE switches are classified as power source equipment (PSE), capable of providing up to 30 watts of power per port to IEEE 802.3at/af-compliant powered devices (PDs), such as IP cameras and wireless access points.

The TN-G4500 Series has M12 connectors that are tailor-made for push-pull cables to facilitate quick installation and allow M12 rotary cables to be utilized. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe but also increase the reliability of your communications system. Furthermore, the -40 to 70°C wide operating temperature range allows deployment in harsh environments. The TN-G4500 Series complies with the essential sections of the EN 50155 standard, covering operating temperature, power input voltage, surge, ESD, vibration, power isolation, and features models with conformal coating to ensure suitability for a variety of industrial applications.

Data sheet

Specification

Switch and Hub: Interface
Number of Ports: 16 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber Optic Multi-mode (Megabit) Ports: No
100Mb Fiber Optic Single-mode (Megabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: No
10/100Mb (Megabit) PoE Ports: No
100Mb SFP Fiber Optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) PoE Ports: Yes: 8 x 100/1000BaseT(X) PoE ports with M12 X-coded 8-pin female connector
M12 Port: Yes
Serial Port: Yes: 1 x Console Port with RS-232 (M12 B-coded 5-pin female connector)
USB: No
Other Ports: 2 x 10GBaseT(X) PoE ports with M12 X-coded 8-pin female connector, 4 x 10/100/1000BaseT(X) ports with M12 X-coded 8-pin female connector, 2 x 10GBaseT(X) ports with M12 X-coded 8-pin female connector with bypass relay

Switch and Hub: Features and Capabilities
Backup: —

Switch and Hub: LED Indicators
LED Per Port: Yes

Switch and Hub: Power Requirements
Maximum Power Consumption: —
Power Consumption (Output Adapter): 16.8 to 137.5 VDC
Power Input Plugin (Redundant): No

Switch and Hub: General
Fan / Fanless: Fanless
MTBF: 435,764 hrs

Switch and Hub: Switch Specifications
Most Forwarding Speed: —
Network Working Layers: Layer 2
Switch Type: Managed
Port Aggregation: —

Switch and Hub: Physical Characteristics
Dimensions: 291.6 x 117.7 x 132.2 mm (11.48 x 4.63 x 5.20 in)
Housing: Metal
Installation: Wall mounting
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMS, IEC 60068-2-31, FCC, Railway, EN 45545-2, Safety, Shock, Vibration
Storage Humidity: —

Switch and Hub: Standards and Protocols
Protocols and Work Standards: IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X), IEEE 802.3bz for 5GBaseT and 2.5GBaseT, IEEE 802.3an for 10GBaseT, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for PoE/PoE+ output, IEEE 802.3x for flow control
Protocols and Management Standards: Account Management, Back Pressure Flow Control, DHCP Client (options 1/3/50/51/53/54/55/57/66/67), DHCP Option 82 (relay agent), DHCP Server (options 1/3/12/15/42/50/55), DNS Server, Flow Control, HTTP, ICMP, IPv4/IPv6, Loop Protection, LLDP, Port-based DHCP Server, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, SNMP Trap

Switch and Hub: Package Checklist
Hardware Installation Guide: Yes
Power Adapter: —
Power Cable: —
