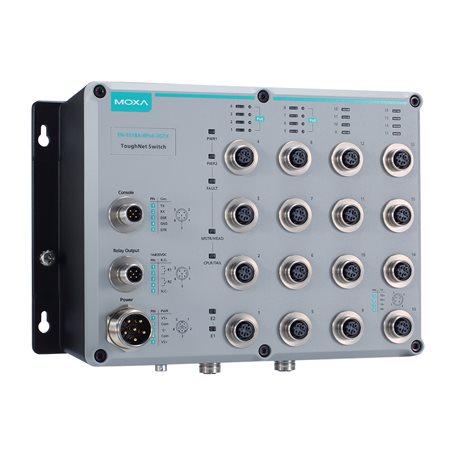

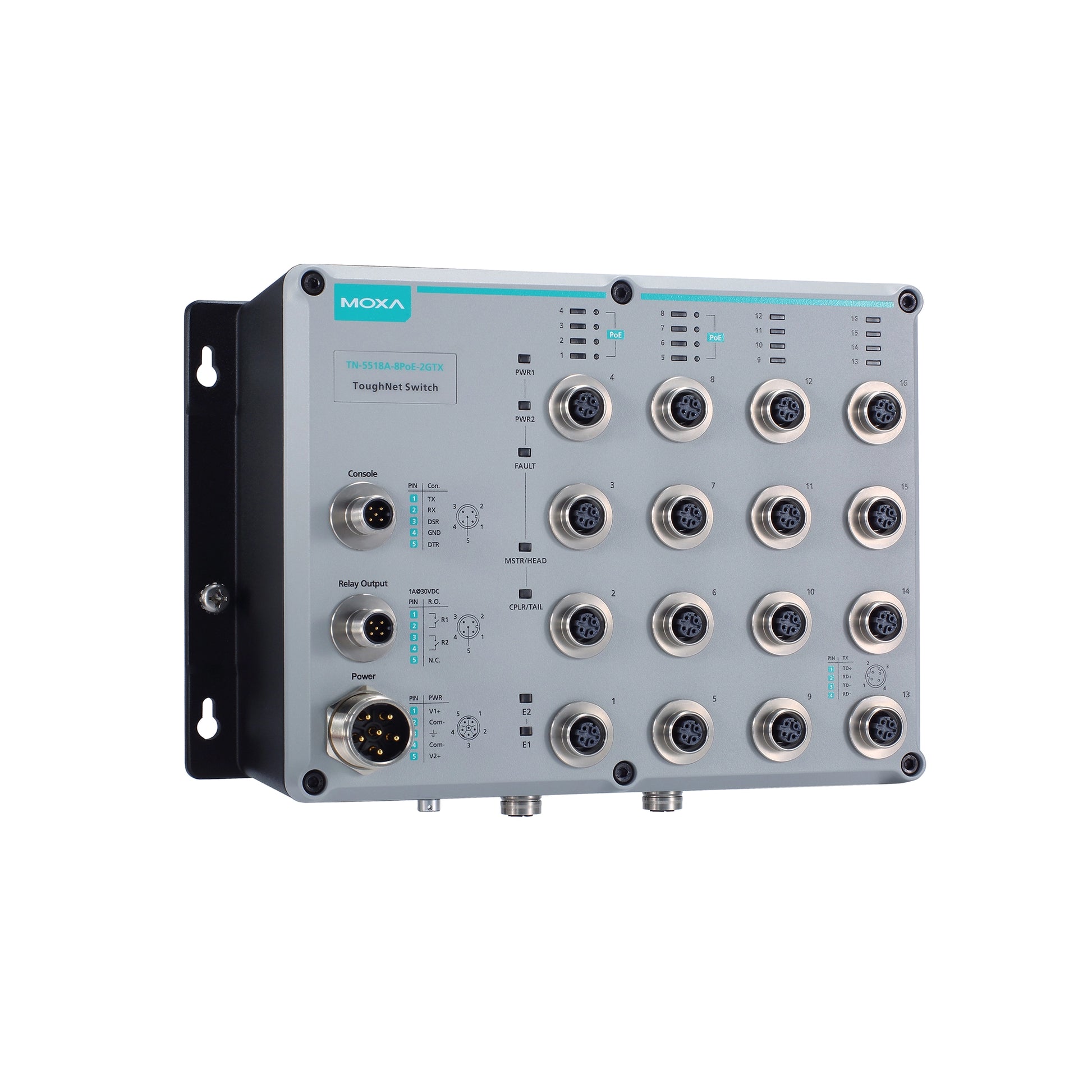

MOXA TN-5518A-8PoE-2GTX-WV-T Managed Ethernet Switch

MOXA TN-5518A-8PoE-2GTX-WV-T Managed Ethernet Switch

$5,506.00 CAD
$5,506.00 CAD
Sale Sold out

Features and Benefits

  • Up to 2 Gigabit ports with optional bypass relay function
  • 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items
  • -40 to 75°C operating temperature range
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
View full details

Description

Introduction
The ToughNet TN-5500A Series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside installations. The TN-5500A Series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5500A Series Ethernet switches provide 8 or 16 Fast Ethernet M12 ports with or without 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports, and 2 ports on the downside to provide the Gigabit Ethernet interface with an optional bypass relay function. The PoE switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP surveillance, wireless access points, and IP phones.

The TN-5500A Series provides a wide power input range of 24/36/48/72/96/110 VDC that allows you to use the same type of power source at different sites around the globe. In addition, the 24 to 110 VDC wide power input range and isolated power increase the reliability of your communications system. In addition, the -40 to 75°C operating temperature and IP54-rated waterproof enclosure allow deployment in harsh environments. TN-5500A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Data sheet

Specification

Interface
Number of Ports: 18 Ports
10/100Mb RJ45 (Megabit) Ports:
10/100/1000Mb RJ45 (Gigabit) Ports:
100Mb Fiber Optic Multi Mode (Megabit) Ports:
100Mb Fiber Optic Single Mode (Megabit) Ports:
100Mb SFP Fiber Optic (Megabit) Ports:
1000Mb SFP Fiber Optic (Gigabit) Ports:
10/100Mb (Megabit) POE Ports: 8 Ports (M12 Connector)
10/100/1000Mb (Gigabit) POE Ports:
Other Ports: 8 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector), 2 x 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay), 1 x Console Port (M12 connector), 2 x Alarm Contact Channels (M12 connector)

Features and Capabilities
Backup: ABC-01

LED Indicators
LED Per Port:

Power Requirements
Input Current: 24-110 VDC, 7.1A max.
Power Input Plugin (Redundant):
Input Voltage: 24/36/48/72/96/110 VDC
Operating Voltage: 16.8 to 137.5 VDC
Power Consumption: -

General
Fan / Fanless: Fanless
MTBF: 439,442 hrs

Switch Specifications
Most Forwarding Speed: -
Network Working Layers: Layer 2
Switch Type: Managed
Port Aggregation:

Physical Characteristics
Dimensions: 250 x 178.6 x 115 mm (9.84 x 7.03 x 4.53 in)
Housing: Metal
Installation: DIN-rail mounting (optional), Wall mounting
Operating Temperature: -40 to 75°C (-40 to 167°F)
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Radio Frequency: FCC; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 62368-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; EMC: EN 55032/35; IP54; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
Storage Temperature: -40 to 85°C (-40 to 185°F)
Weight: 3,439 g (7.58 lb)

Standards and Protocols
Protocols and Work Standards: LACP, MSTP, RSTP, Static Port Trunk, STP, Turbo Chain, Turbo Ring v2, Turbo Ring with DRC
Protocols and Management Standards: Account Management, Back Pressure Flow Control, DHCP Client (options 1/3/50/51/53/54/55/57/66/67), DHCP Option 82 (relay agent), DHCP Server (options 1/3/12/15/42/50/55), Flow Control, HTTP, ICMP, IPv4/IPv6, LLDP, Loop Protection, Port-based DHCP Server, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, 802.1Q, GMRP, GVRP, IGMP Snooping v1/v2/v3, IGMP Querier, Port-based VLAN, Static Multicast

Package Checklist
Hardware Installation Guide: Included
Power Adapter: Included
Power Cable: Included
