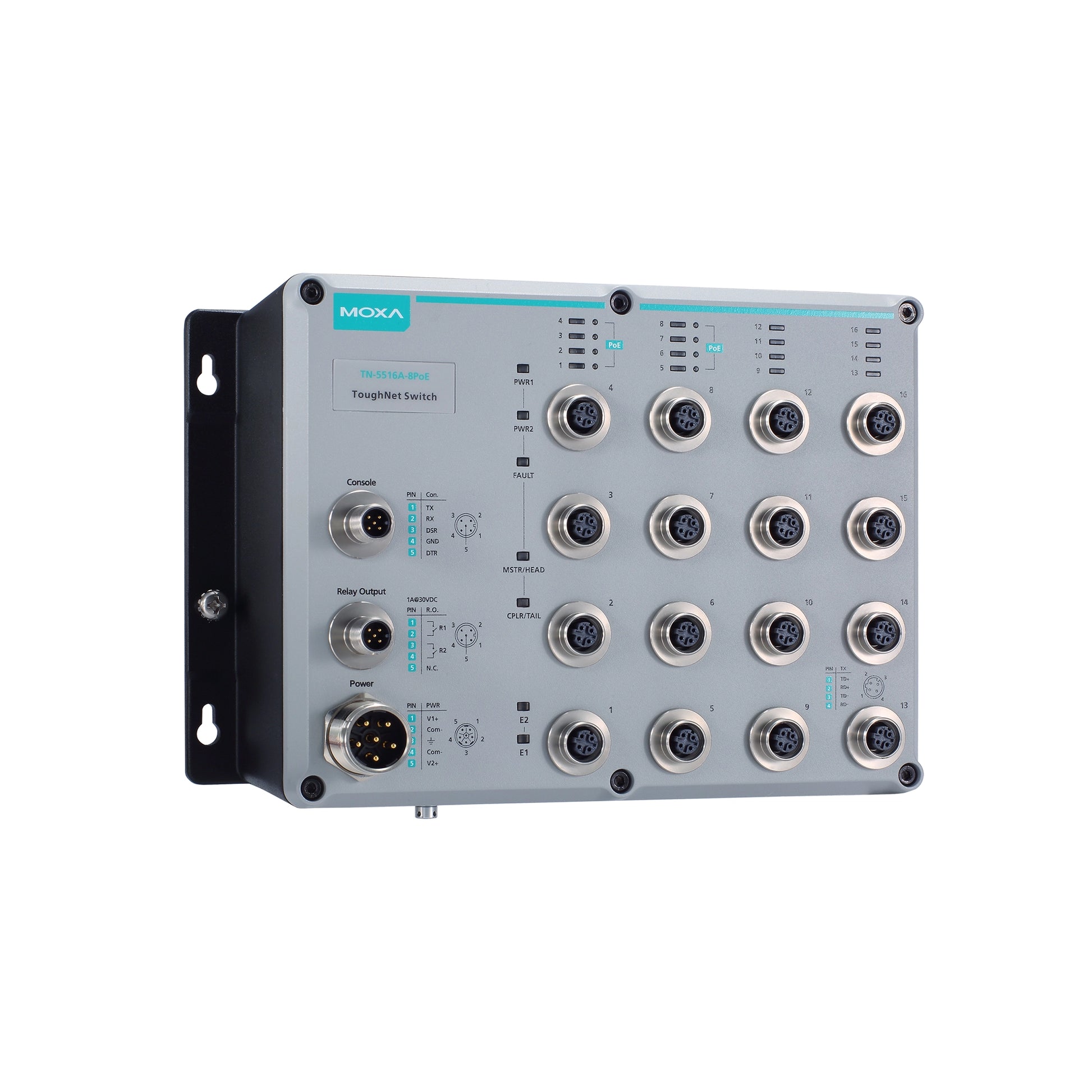

MOXA TN-5516A-8PoE-WV-T Managed Ethernet Switch

MOXA TN-5516A-8PoE-WV-T Managed Ethernet Switch

$4,449.00 CAD
$4,449.00 CAD
Sale Out of Stock

Features and Benefits

  • Up to 2 Gigabit ports with optional bypass relay function
  • 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items
  • -40 to 75°C operating temperature range
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
View full details

Description

Introduction
The ToughNet TN-5500A Series M12 managed Ethernet switches are designed for railway applications, such as rolling stock, and wayside installations. The TN-5500A Series switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5500A Series Ethernet switches provide 8 or 16 Fast Ethernet M12 ports with or without 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports, and 2 ports on the downside to provide the Gigabit Ethernet interface with an optional bypass relay function. The PoE switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP surveillance, wireless access points, and IP phones.

The TN-5500A Series provides a wide power input range of 24/36/48/72/96/110 VDC that allows you to use the same type of power source at different sites around the globe. In addition, the 24 to 110 VDC wide power input range and isolated power increase the reliability of your communications system. In addition, the -40 to 75°C operating temperature and IP54-rated waterproof enclosure allow deployment in harsh environments. TN-5500A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Data sheet

Specification

Switch and Hub : Interface
Number of Ports: 16 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber Optic Multi Mode (Megabit) Ports: No
100Mb Fiber Optic Single Mode (Megabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: No
10/100Mb (Megabit) PoE Ports: Yes: 8 x 10/100BaseT(X) PoE ports with M12 D-coded 4-pin female connector
100Mb SFP Fiber Optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) PoE Ports: No
M12 Port: Yes
Serial Port: Yes: 1 x Console Port with M12 A-coded male connector
USB: No
Other Ports: 8 x 10/100BaseT(X) ports with M12 D-coded 4-pin female connector

Switch and Hub : Features and Capabilities
Backup: _

Switch and Hub : LED Indicators
LED Per Port: Yes

Switch and Hub : Power Requirements
Maximum Power Consumption: -
Power Consumption (Output Adapter): 16.8 to 137.5 VDC
Power Input Plugin (Redundant): No

Switch and Hub : General
Fan / Fanless: Fanless
MTBF: 483,246 hrs

Switch and Hub : Switch Specifications
Most Forwarding Speed: -
Network Working Layers: Layer 2
Switch Type: Managed
Port Aggregation: -

Switch and Hub : Physical Characteristics
Dimensions: 250 x 176.2 x 115 mm (9.84 x 6.9 x 4.53 in)
Housing: Metal
Installation: DIN-rail mounting (optional), Wall mounting
Operation Humidity: 5 to 95% (non-condensing)
Storage Humidity: -
Standards and Certifications: EMS, IEC 60068-2-31, FCC, Railway, EN 45545-2, EN 62368-1, Shock, Vibration, EN 55032/35

Switch and Hub : Standards and Protocols
Protocols and Work Standards:
IEEE 802.1D-2004 (Spanning Tree Protocol), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1s (Multiple Spanning Tree Protocol), IEEE 802.1w (Rapid Spanning Tree Protocol), IEEE 802.1X (Authentication), IEEE 802.3 (10BaseT), IEEE 802.3ab (1000BaseT(X)), IEEE 802.3ad (Port Trunk with LACP), IEEE 802.3u (100BaseT(X)/100BaseFX), IEEE 802.3x (Flow Control), IEEE 802.3af/at (PoE/PoE+ Output), IEEE 802.3z (1000BaseSX/LX/LHX/ZX)

Protocols and Management Standards:
Account Management, Back Pressure Flow Control, DHCP Client (Options 1/3/50/51/53/54/55/57/66/67), DHCP Option 82 (Relay Agent), DHCP Server (Options 1/3/12/15/42/50/55), Flow Control, HTTP, ICMP, IPv4/IPv6, LLDP, Loop Protection, Port-Based DHCP Server, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet

Switch and Hub : Package Checklist
Hardware Installation Guide: Yes
Power Adapter: -
Power Cable: -
