Moxa

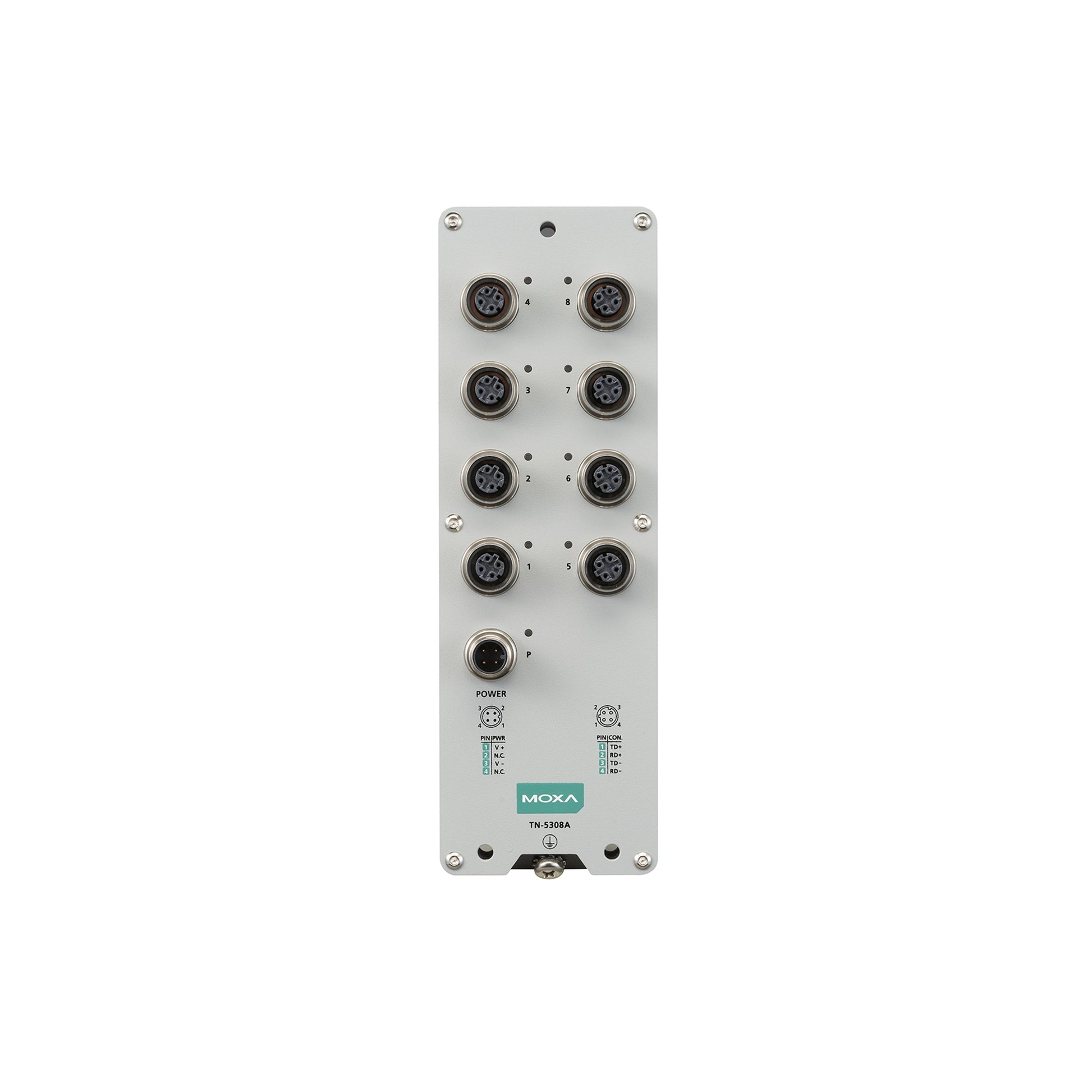

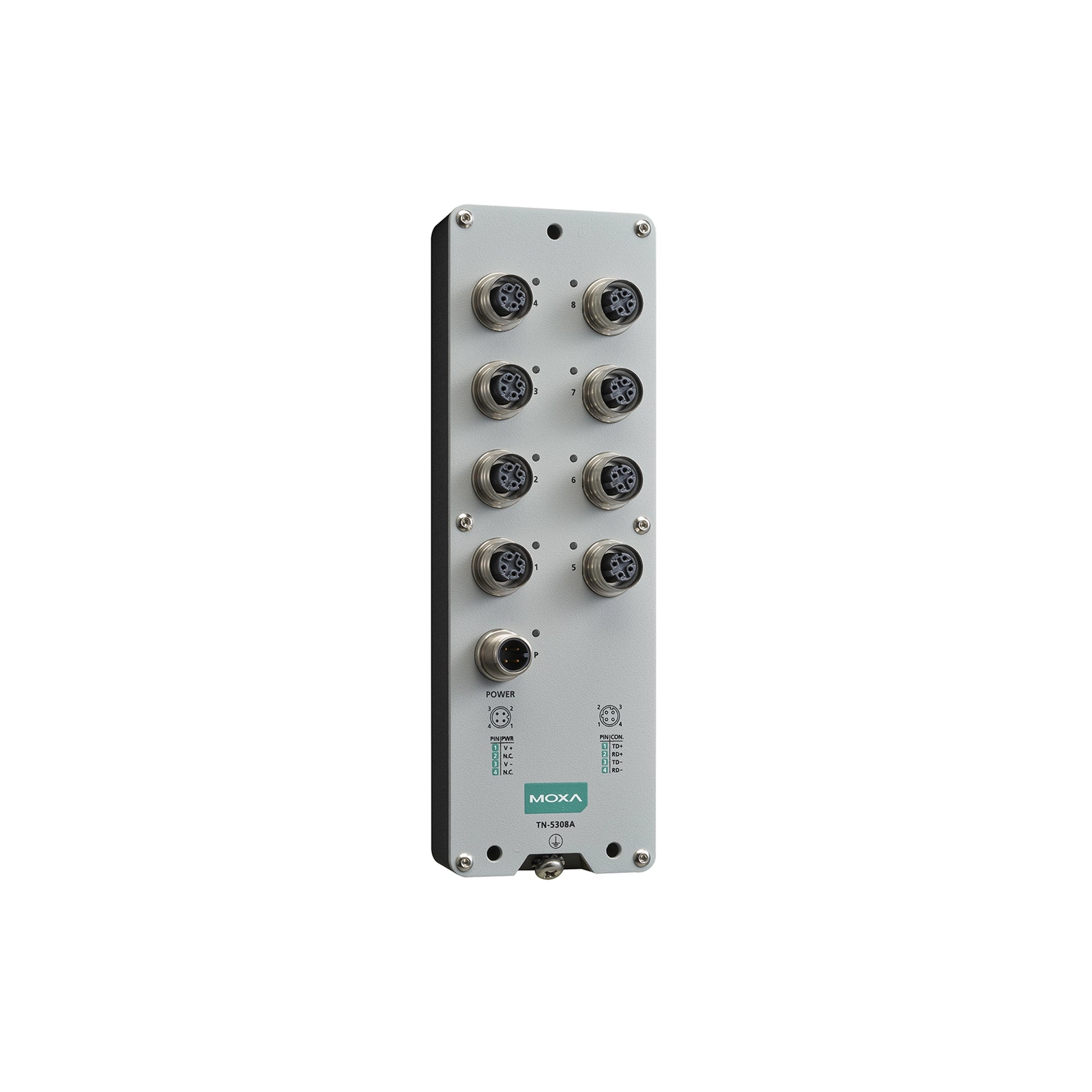

MOXA TN-5308A-WV-CT-T Unmanaged Ethernet Switch

MOXA TN-5308A-WV-CT-T Unmanaged Ethernet Switch

$1,365.00 CAD
$1,365.00 CAD
Sale Out of Stock

Features and Benefits

  • Rugged die-cast design for use in harsh environments
  • Isolated power input range from 24 to 110 VDC
  • Complies with all EN 50155 mandatory test items
  • -40 to 70°C wide-temperature design
View full details

Description

Introduction
The ToughNet TN-5300A Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The TN-5300A Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable resistance against environmental disturbances, such as vibration and shock. The TN-5300A Series Ethernet switches provide 5 or 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

All TN-5300A Series models support an extended operating temperature range of -40 to 70°C. The TN-5300A Series also comply with all mandatory requirements of the EN 50155 standard including operating temperature, power input voltage, surge, ESD, and vibration, making these switches suitable for rolling stock and a variety of other industrial applications.

The TN-5300A Series features a single power input with overload, reverse polarity, and inrush current protection. Additionally, the TN-5308A PoE models provide 8 IEEE 802.3af/at compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port and have a total power PoE budget of 50.2 Watts.

Data sheet

Specification

Specification: Interface
Number of ports: 8 Ports
10/100Mb RJ45 (Megabit) Ports: —
10/100/1000Mb RJ45 (Gigabit) Ports: —
100Mb Fiber optic multi mode (Megabit) Ports: —
100Mb Fiber optic single mode (Megabit) Ports: —
100Mb SFP Fiber optic (Megabit) Ports: —
1000Mb SFP Fiber optic (Gigabit) Ports: —
10/100Mb (Megabit) POE Ports: —
10/100/1000Mb (Gigabit) POE Ports: —
Other ports: 8 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

Specification: Features and Capabilities
Backup: —

Specification: LED Indicators
LED Per Port: —

Specification: Power Requirements
Input Current: max. 0.1 A @ 24 VDC
Power Input Plugin (Redundant): —
Input Voltage: 24/36/48/72/96/110 VDC
Operating Voltage: 16.8 to 137.5 VDC
Power Consumption: —

Specification: General
Fan / Fanless: Fanless
MTBF: 5,260,454 hrs

Specification: Switch Specifications
Most forwarding speed: —
Network working layers: Layer 2
Switch type: Unmanaged
Port Aggregation: —

Specification: Physical Characteristics
Dimensions: 62.4 x 190.4 x 37.5 mm (2.46 x 7.50 x 1.48 in)
Housing: Metal
Installation: Wall mounting, DIN-rail mounting (with optional kit)
Operating Temperature: -40 to 70°C (-40 to 158°F)
Operation Humidity: 5 to 95% (non-condensing)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Weight: 455 g (1.00 lb)

Standards and Certifications:
EMC: EN 55032/35, EMI: CISPR 32, FCC Part 15B Class A, EMS: IEC 61000-4-2/3/4/5/6/8
Radio Frequency: FCC
Environmental Testing: IEC 60068 (various parts), EN 50155
Railway: EN 50121-4, EN 50155, IEC 60571
Railway Fire Protection: EN 45545-2
Safety: IEC/UL/EN 62368-1
Salt Spray Test: EN 50155
Shock/Vibration: IEC 60068-2-27/64, IEC 61373, EN 50155
Packaging Tests: ISTA 1A
Green Product: RoHS, CRoHS, WEEE
IP Rating: IP54
MTBF Method: Telcordia SR332 Issue 4
Specification: Standards and Protocols
Protocols and work standards: IEEE 802.3 / 802.3u / 802.3x
Protocols and management standards: —

Specification: Package Checklist
Hardware installation guide: -
Power adapter: -
Power cable: -
