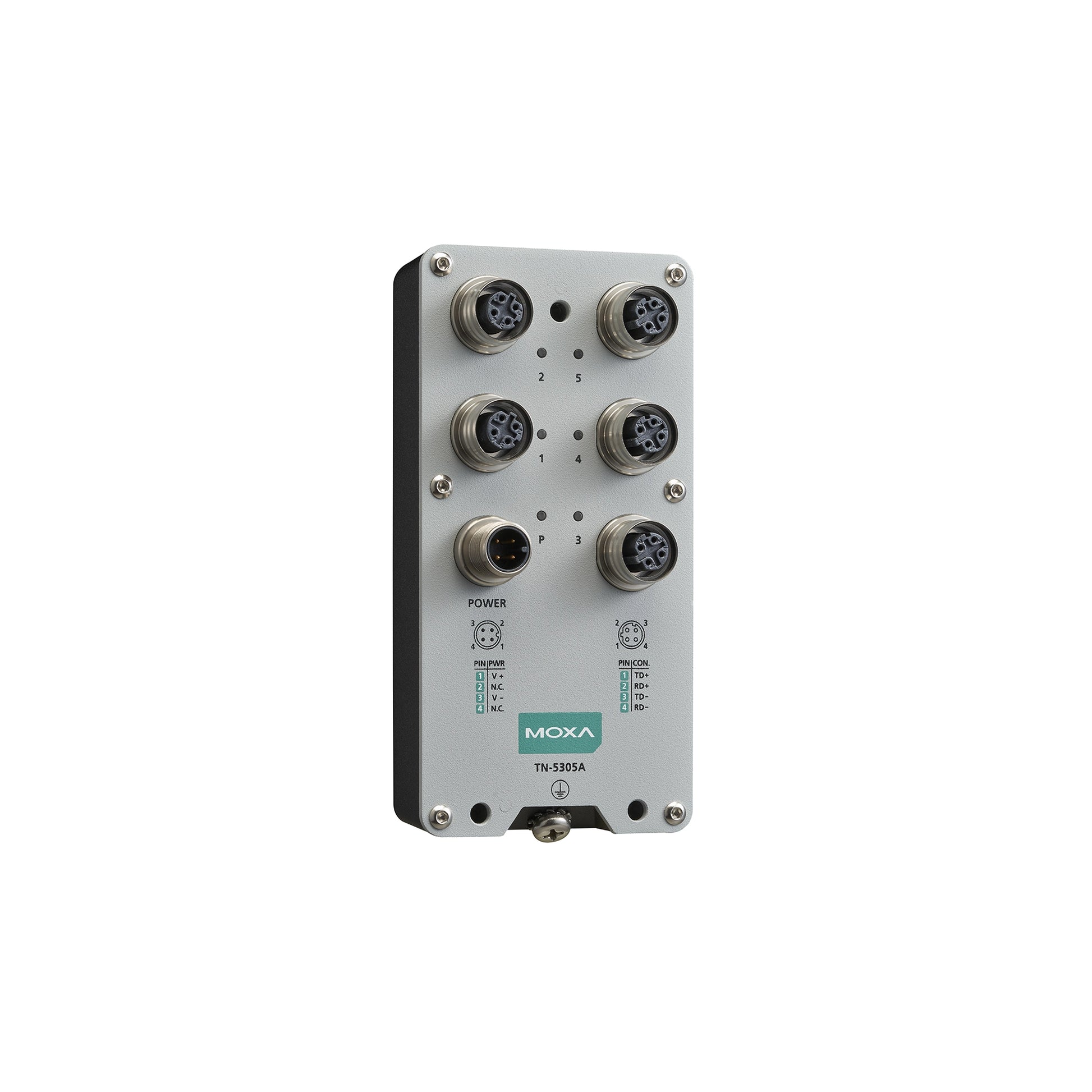

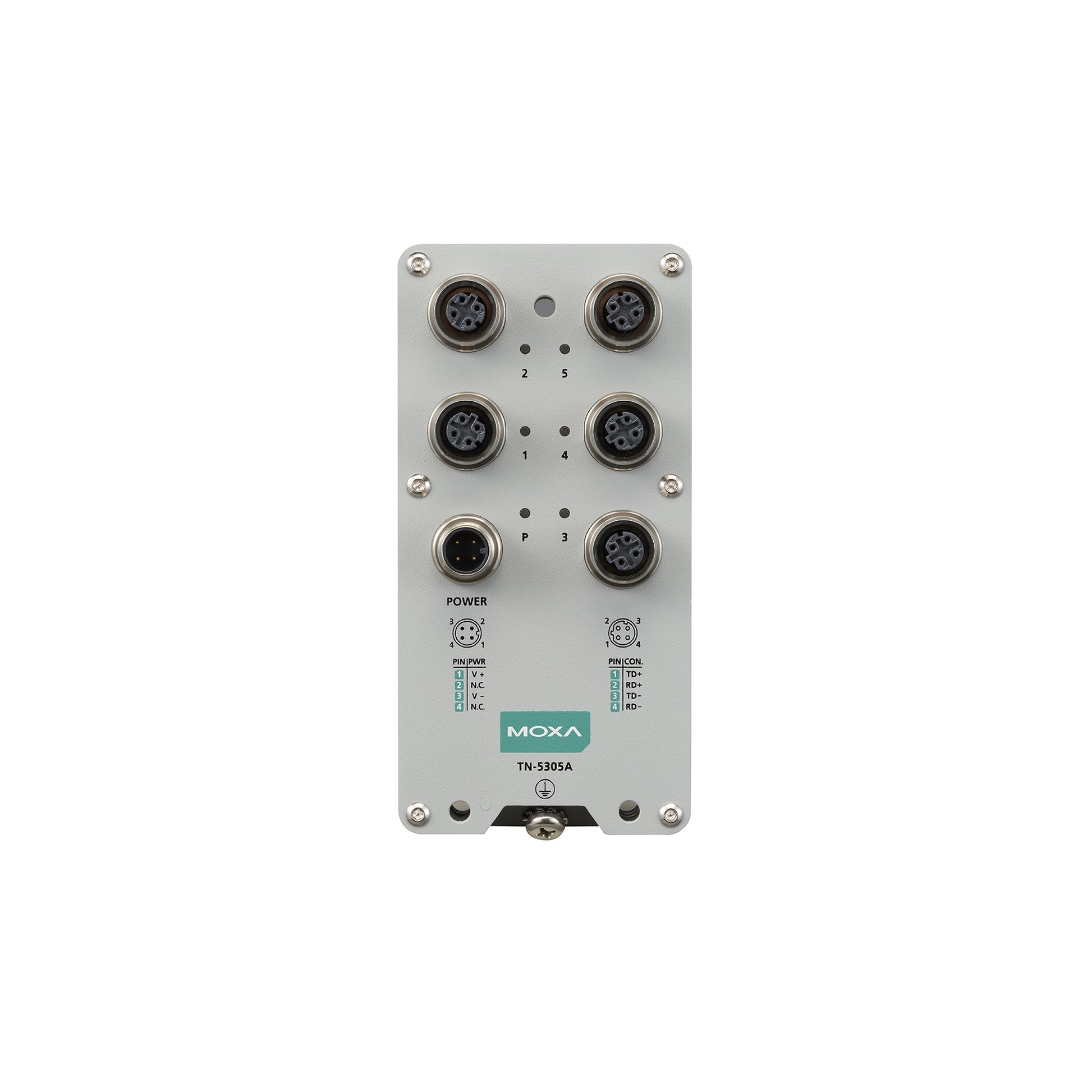

MOXA TN-5305A-WV-CT-T Unmanaged Ethernet Switch

MOXA TN-5305A-WV-CT-T Unmanaged Ethernet Switch

$693.00 CAD
$693.00 CAD
Sale Out of Stock

Features and Benefits

  • Rugged die-cast design for use in harsh environments
  • Isolated power input range from 24 to 110 VDC
  • Complies with all EN 50155 mandatory test items
  • -40 to 70°C wide-temperature design
View full details

Description

Introduction
The ToughNet TN-5300A Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The TN-5300A Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable resistance against environmental disturbances, such as vibration and shock. The TN-5300A Series Ethernet switches provide 5 or 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

All TN-5300A Series models support an extended operating temperature range of -40 to 70°C. The TN-5300A Series also comply with all mandatory requirements of the EN 50155 standard including operating temperature, power input voltage, surge, ESD, and vibration, making these switches suitable for rolling stock and a variety of other industrial applications.

The TN-5300A Series features a single power input with overload, reverse polarity, and inrush current protection. Additionally, the TN-5308A PoE models provide 8 IEEE 802.3af/at compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port and have a total power PoE budget of 50.2 Watts.

Data sheet

Specification

Ethernet Interface
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): TN-5305A Series: 5
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): -
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control

LED Indicators
LED Per Port: PWR, Ethernet ports, PoE ports

Switch Properties
Packet Buffer Size: 768 kbits
MAC Table Size: 2 K

Power Requirements
Input Current: TN-5305A Series: max. 0.1 A @ 24 VDC
Input Voltage: 24, 36, 48, 72, 96, 110 VDC
Operating Voltage: 16.8 to 137.5 VDC
Power Inputs: 1
Power Connector: M12 A-coded male connector
Max. PoE Power Output per Port: 30 W
Total PoE Power Budget: 50.2 W
Overload Current Protection: Supported
Reverse Polarity Protection: Supported

Physical Characteristics
Housing: Metal
IP Rating: IP54
Dimensions (TN-5305A): 62.4 x 125.4 x 37.5 mm, (2.46 x 4.94 x 1.48 in)
Weight (TN-5305A): 315 g, (0.69 lb)
Installation: Wall mounting, DIN-rail mounting (optional kit)
Protection (CT models): PCB conformal coating

Environmental Limits
Operating Temperature: -40 to 70°C, (-40 to 158°F)
Storage Temperature: -40 to 85°C, (-40 to 185°F)
Ambient Humidity: 5 to 95%, non-condensing
Altitude: 3000 m

Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 Contact 6 kV, Air 8 kV, IEC 61000-4-3 20 V/m, IEC 61000-4-4 Power 2 kV, Signal 2 kV, IEC 61000-4-5 Power 2 kV, Signal 2 kV, IEC 61000-4-6 10 V, IEC 61000-4-8 PFMF
Radio Frequency: FCC
Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30, IEC 60068-2-78, EN 50155
Railway: EN 50121-4, EN 50155, IEC 60571
Railway Fire Protection: EN 45545-2
Safety: IEC 62368-1, UL 62368-1, EN 62368-1
Salt Spray Test: EN 50155
Shock: IEC 60068-2-27, IEC 61373, EN 50155
Vibration: IEC 60068-2-64, IEC 61373, EN 50155
Package Vibration Test: ISTA 1A
Package Drop Test: ISTA 1A
Green Product Compliance: RoHS, CRoHS, WEEE

MTBF
TN-5305A: 6,612,892 hrs
Standard: Telcordia SR332 Issue 4

Warranty
Warranty Period: 5 years
