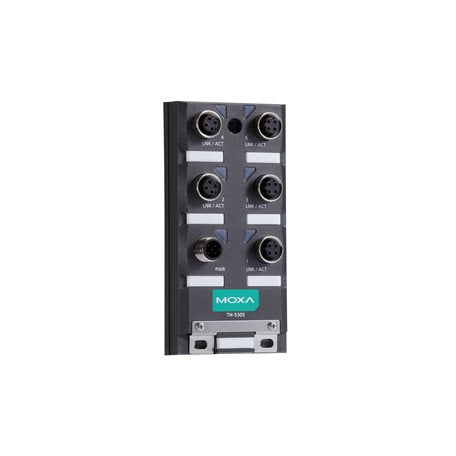

MOXA TN-5305 UNMANAGED ETHERNET SWITCH

MOXA TN-5305 UNMANAGED ETHERNET SWITCH

$395.00 CAD
$395.00 CAD
Sale Sold out
We have more than 10 in stock

Features and Benefits

  • 5 x 10/100Mbps T(x) ports with M12 D-coded 4-pin female connector
  • DIN-rail
  • body: Plastic top cover, metal bottom plate
  • -25 to 60°C operating temperature
View full details

Description

The TN-5305 Series Ethernet switches are IP67-rated for tough industrial applications. By using M12 connectors, you can rest assured that Ethernet cables will connect tightly to the switch, and will be robust enough to protect your applications from external disturbances, such as the vibration and shock encountered in the transportation industry. The space-saving TN-5305 switches can be mounted virtually anywhere, and wide operating temperature (-40 to 75°C) models are also available for use in the most extreme weather conditions. TN-5305 Series Ethernet switches comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.

Data sheet

Specification

Number of ports: 5 Ports
M12 port: Yes, 5 x 10/100Mbps T(X) Ports (M12 D-coded 4-pin female connector)
Power Consumption (Output Adapter): 18 to 30 VAC, 12 to 45 VDC
Power Input Plugin (Redundant): 18 to 30 VAC (47 to 63 Hz), 24 to 36 VDC
Fan/Fanless: Fanless
MTBF: 3,451,678 hrs
Network working layers: Layer 1
Switch type: Unmanaged
Dimensions: 60 x 125 x 29.6 mm (2.36 x 4.92 x 1.09 in)
Housing: Plastic top cover, metal bottom plate
Installation: DIN-rail mounting (with optional kit), Wall mounting
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMS, Freefall, FCC, Railway, Railway Fire Protection, Safety, Shock, Vibration, Salt Spray Test, Railway Fire Protection, RCM
Storage Temperature: -40 to 85°C
Protocols and work standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
Protocols and management standards: No
Hardware installation guide: Yes
Power adapter: No
Power cable: No
