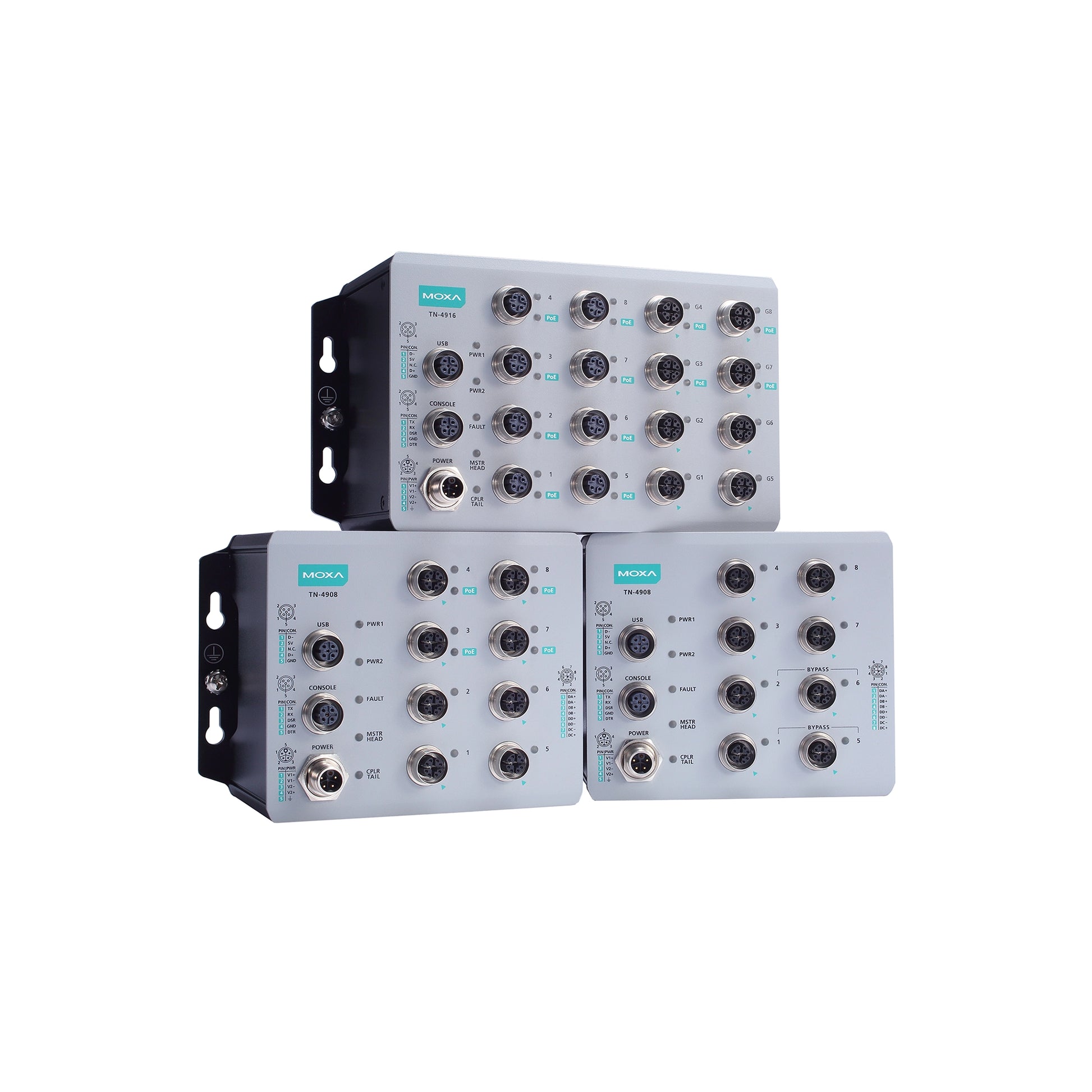

Ethernet Interface:
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): TN-4916-8PoE-WV-CT-T: 8
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 8PoE Models: 8
PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector): 4GPoE Models: –
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector): 4GTX Models: –
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay): 4GTXBP Models: –
Standards:
IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.3af/at for PoE/PoE+ output, IEEE 802.3ab for 1000BaseT(X), IEEE 802.1X for authentication, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.3x for flow control, IEEE 802.3u for 100BaseT(X), IEEE 802.1p for Class of Service, IEEE 802.3 for 10BaseT
Ethernet Software Features:
Configuration Options: Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
Filter: IGMP v1/v2, Static Multicast, 802.1Q
Management: Back Pressure Flow Control, SNMP Inform, LLDP, Syslog, HTTP, HTTPS, Flow control, SMTP, QoS/CoS/ToS, Port Mirror, SNMP Trap, SNMPv1/v2c/v3, IPv4, Telnet, DHCP Server, SFTP, SCP, TFTP, RARP, Account Management, DHCP Client (Option 1/3/12/50/51/53/54/55/57/61/66/67/124/255), DHCP Server (Option 1/3/6/12/15/28/42/50/55), DHCP Relay Agent
Redundancy Protocols: RSTP, Static Port Trunk, Turbo Ring v2, STP
Routing Redundancy: VRRP
Security: Secure Boot, IPsec, L2TP (server), RADIUS, Trust access control
Time Management: SNTP, NTP Server/Client
Unicast Routing: RIPV1/V2, OSPF, Static Route
Railway: TRDP
Multicast Routing: Static Route
Routing Throughput: 450,000 FPS (pure routing)
DoS and DDoS Protection:
Technology: NMAP-ID Scan, ARP-Flood, SYN/FIN Scan, Null Scan, ICMP-Death, FIN Scan, SYN-Flood, NEWWithout-SYN Scan, Xmas Scan, NMAP-Xmas Scan, SYN/RST Scan
Firewall:
Filter: ICMP, MAC address, Ethernet protocols, Ports, IP address, DDoS
Quick Automation Profiles: DNP, DPI, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet, VPN
Stateful Inspection: Router firewall, Transparent (bridge) firewall
Throughput: Max. 350,000 packets per second
IPsec VPN:
Authentication: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate
Encryption: 3DES, DES, AES-128, AES-192, AES-256
Concurrent VPN Tunnels: Max. 250 IPsec VPN tunnels
Switch Properties:
IGMP Groups: 1024
MAC Table Size: 16 K
Max. No. of VLANs: 32
VLAN ID Range: VID 1 to 4094
LED Interface:
LED Indicators: STATE, PWR1, PWR2, FAULT, 10/100/1000M, PoE
NAT:
Features: 1-to-1, Port forwarding, N-to-1
Serial Interface:
Console Port: RS-232 (M12 B-coded 5-pin female connector)
USB Interface:
M12 Connector: M12 A-coded 5-pin female (for ABC-02 USB storage)
Power Parameters:
Input Current: TN-4916 PoE Models: 5.9 A @ 24 V
Input Voltage: 24/36/48/72/96/110 VDC, Redundant dual inputs, No. of power inputs: 2
Operating Voltage: 16.8 to 137.5 VDC
Power Connector: M12 K-coded 5-pin male connector
Total PoE Power Budget: TN-4916 PoE Models: 95 W
Overload Current Protection: Supported
Reverse Polarity Protection: Supported
Physical Characteristics:
Housing: Metal
Dimensions: TN-4916 Models: 206 x 115 x 100 mm (8.10 x 4.53 x 3.94 in)
IP Rating: IP40
Weight: TN-4916 Models: 1990 g (4.39 lb)
Installation: Wall mounting
Protection: PCB conformal coating
Environmental Limits:
Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 3,000 m
Standards and Certifications:
EMC: EN 55032, EN 55035
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 6 kV, Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV, Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
Radio Frequency: FCC
Railway: EN 50121-4, EN 50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30, IEC 60068-2-78, IEC 60571
Railway Fire Protection: EN 45545-2
Safety: IEC 62368, UL 62368
Salt Spray Test: EN 50155
Shock: IEC 60068-2-27, IEC 61373
Vibration: IEC 60068-2-64, IEC 61373
Package Drop Test: ISTA 1A
Package Vibration Test: ISTA 1A
Declaration:
Green Product: RoHS, CRoHS, WEEE
MTBF:
Time: TN-4916 PoE Models: 550,148 hrs
Standards: Telcordia SR332 Issue 2
Warranty:
Warranty Period: 5 years
