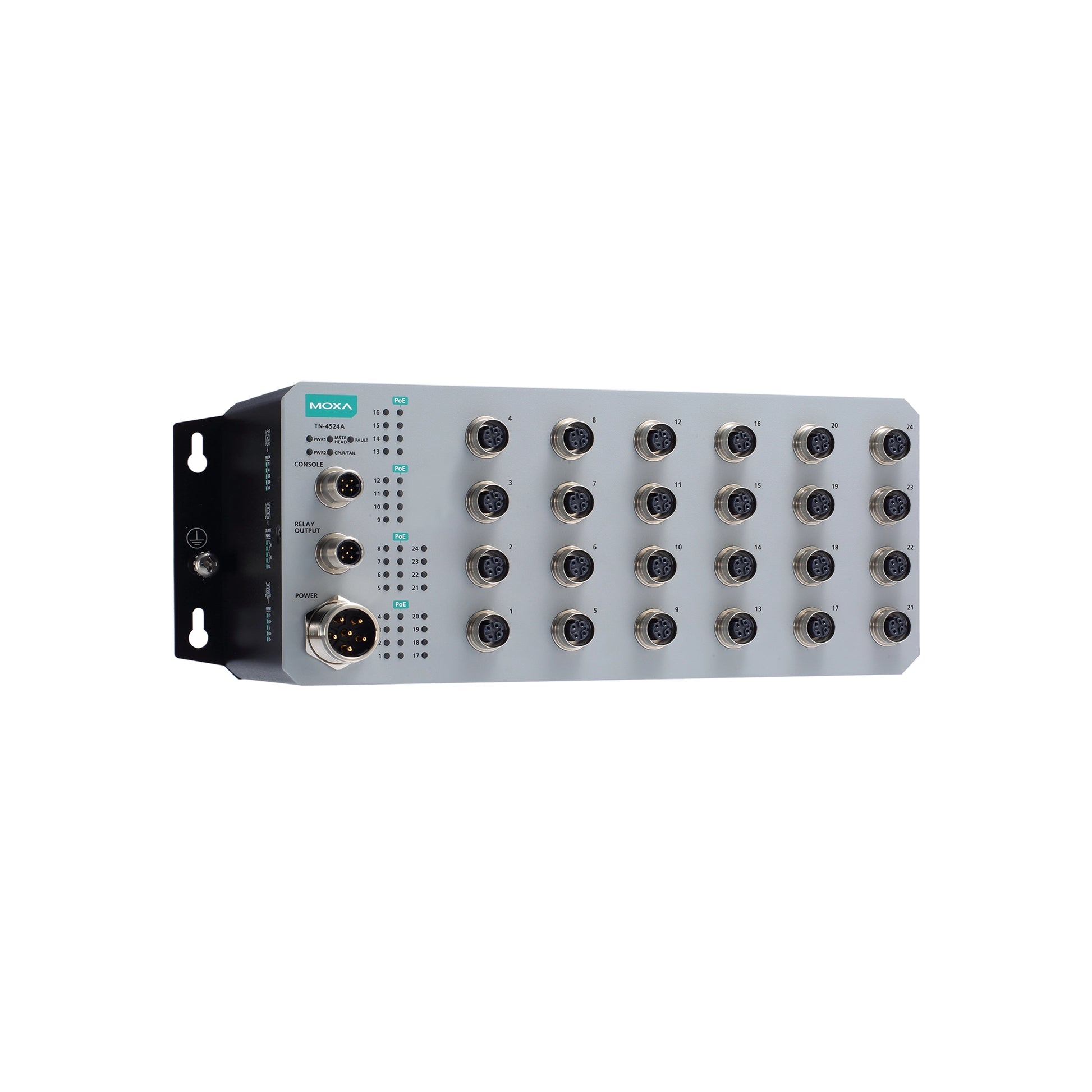

MOXA TN-4524A-16PoE-WV-CT-T Managed Ethernet Switch

MOXA TN-4524A-16PoE-WV-CT-T Managed Ethernet Switch

$6,193.00 CAD
$6,193.00 CAD
Sale Out of Stock

Features and Benefits

  • 2 to 4 Gigabit ports with bypass relay function on the bypass models
  • 2 Gigabit fiber ports with embedded multi-mode Q-ODC® interface on fiber models
  • Up to 4 Gigabit ports with PoE function
  • Up to 20 IEEE 802.3at/af compliant combo PoE and Ethernet ports
  • Supports regular and push-pull M12 connectors
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • Complies with all EN 50155 mandatory test items
  • Isolated power with 24 to 110 VDC power supply range
  • -40 to 70°C system operating temperature range
View full details

Description

Introduction
The ToughNet TN-4500A Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500A Series Ethernet switches provide 12 or 24 fast Ethernet M12 ports with or without IEEE 802.3at/af compliant PoE functionality, and the Gigabit models have 4 Gigabit Ethernet interfaces with PoE and optional bypass relay functionality. In addition, the fiber models provide 2 Gigabit fiber interface ports with an embedded 2 km multimode fiber transceiver. The PoE switches are classified as power source equipment (PSE).

The switches provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 70°C operating temperature range of the switches ensures they can withstand deployment in harsh environments. TN-4500A Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Data sheet

Specification

Switch and Hub: Interface
Number of ports: 24 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber optic multi mode (Megabit) Ports: No
100Mb Fiber optic single mode (Megabit) Ports: No
1000Mb SFP Fiber optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: Yes: 16 x 10/100BaseT(X) PoE ports with M12 D-Coded 4-pin female connector
100Mb SFP Fiber optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
M12 port: Yes
Serial port: Yes: 1 x Console Port with M12 A-coded male connector
USB: No
Other ports: 8 x 10/100BaseT(X) ports with M12 D-Coded 4-pin female connector

Switch and Hub: Features and Capabilities
Backup: No

Switch and Hub: LED Indicators
LED Per Port: Yes

Switch and Hub: Power Requirements
Maximum power consumption: 16.8 to 137.5 VDC
Power Consumption (Output Adapter): 6.5 A @ 24 VDC
Power Input Plugin (Redundant): -

Switch and Hub: General
Fan / Fanless: Fanless
MTBF: 429,402 hrs

Switch and Hub: Switch Specifications
Most forwarding speed: -
Network working layers: _
Switch type: Rugged Ethernet switches
Port Aggregation: -

Switch and Hub: Physical Characteristics
Dimensions: 347.8 x 132 x 122.3 mm (13.70 x 5.20 x 4.81 in)
Housing: Metal
Installation: Wall mounting
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMS, Freefall, FCC, Railway, Railway Fire Protection, Safety, Shock, Vibration
Storage Humidity: _
Storage Temperature: -40 to 85°C (-40 to 185°F)

Switch and Hub: Standards and Protocols
Protocols and work standards: IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for PoE/PoE+ output, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Protocols and management standards: Back Pressure Flow Control, Flow control, DHCP Client (options 1/3/50/51/53/54/55/57/66/67), DHCP Server (options 1/3/12/15/42/50/55), DHCP option 82 (relay agent), Port-based DHCP Server, HTTP, IPv4/IPv6, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, Account Management, DNS Server, Loop Protection

Switch and Hub: Package Checklist
Hardware installation guide: Yes
Power adapter: -
Power cable: -
