Features and Benefits

  • 2 Gigabit ports with bypass relay function on the bypass models
  •  Up to 12 Gigabit ports with PoE function
  •  16 IEEE 802.3at/af compliant combo PoE and Ethernet ports
  •  Supports regular and push-pull M12 connectors
  •  Turbo Ring and Turbo Chain and STP/RSTP/MSTP for network redundancy
  •  Complies with all EN 50155 mandatory test items
  •  Isolated power with 24 to 110 VDC power supply range
  •  -40 to 70°C system operating temperature range
View full details

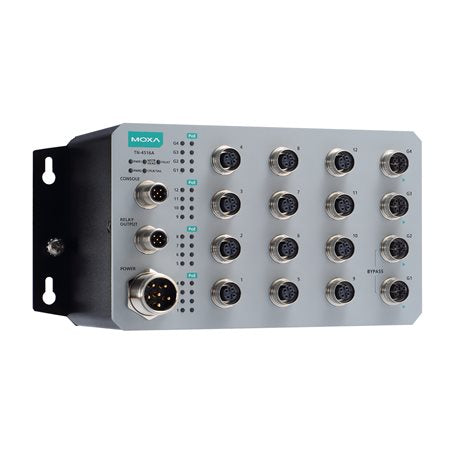

The ToughNet TN-4500A Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500A Series Ethernet switches provide 12 or 24 fast Ethernet M12 ports with or without IEEE 802.3at/af compliant PoE functionality, and the Gigabit models have 4 Gigabit Ethernet interfaces with PoE and optional bypass relay functionality. In addition, the fiber models provide 2 Gigabit fiber interface ports with an embedded 2 km multimode fiber transceiver. The PoE switches are classified as power source equipment (PSE).

The switches provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 70°C operating temperature range of the switches ensures they can withstand deployment in harsh environments. TN-4500A Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.


Number of ports: 12
10/100Mb RJ45 (Megabit) Ports: 12
100Mb Fiber optic multi-mode (Megabit) Ports: 2
100Mb Fiber optic single-mode (Megabit) Ports: 2
1000Mb SFP Fiber optic (Gigabit) Ports: 2
10/100Mb (Megabit) POE Ports: -
100Mb SFP Fiber optic (Megabit) Ports: -
10/100/1000Mb (Gigabit) POE Ports: 12
M12 port: No
Serial port: Yes - 1 x Console Port with M12 A-coded male connector
Backup: -
LED Per Port: -
Maximum power consumption: 120 W
Power Consumption (Output Adapter): -
Power Input Plugin (Redundant): 2
Fan/Fanless: -
Most forwarding speed: -
Network working layers: Layer 2
Switch type: Managed
Port Aggregation: -
Dimensions: -
Housing: Metal
Installation: Wall mounting
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX,IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC, MIB
Protocols and management standards: Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, IOxpress, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, Syslog, Telnet, Account Management
Hardware installation guide: No
Power adapter: No
Power cable: No"
