Switch and Hub: Interface
Number of Ports: 16 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber Optic Multi Mode (Megabit) Ports: No
100Mb Fiber Optic Single Mode (Megabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: No
10/100Mb (Megabit) POE Ports: Yes: 12 x 10/100BaseT(X) PoE ports with M12 D-Coded 4-pin female connector, 2 x 10/100BaseT(X) PoE ports with M12 X-Coded 8-pin female connector
100Mb SFP Fiber Optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No
M12 Port: Yes
Serial Port: Yes: 1 x Console Port with M12 A-coded male connector
USB: No
Other Ports: 2 x 10/100/1000BaseT(X) ports Q-ODC fiber connector
Switch and Hub: Features and Capabilities
Backup: -
Switch and Hub: LED Indicators
LED Per Port: Yes
Switch and Hub: Power Requirements
Maximum Power Consumption: -
Power Consumption (Output Adapter): 16.8 to 137.5 VDC
Power Input Plugin (Redundant): -
Switch and Hub: General
Fan / Fanless: Fanless
MTBF: 421,432 hrs
Switch and Hub: Switch Specifications
Most Forwarding Speed: -
Network Working Layers: _

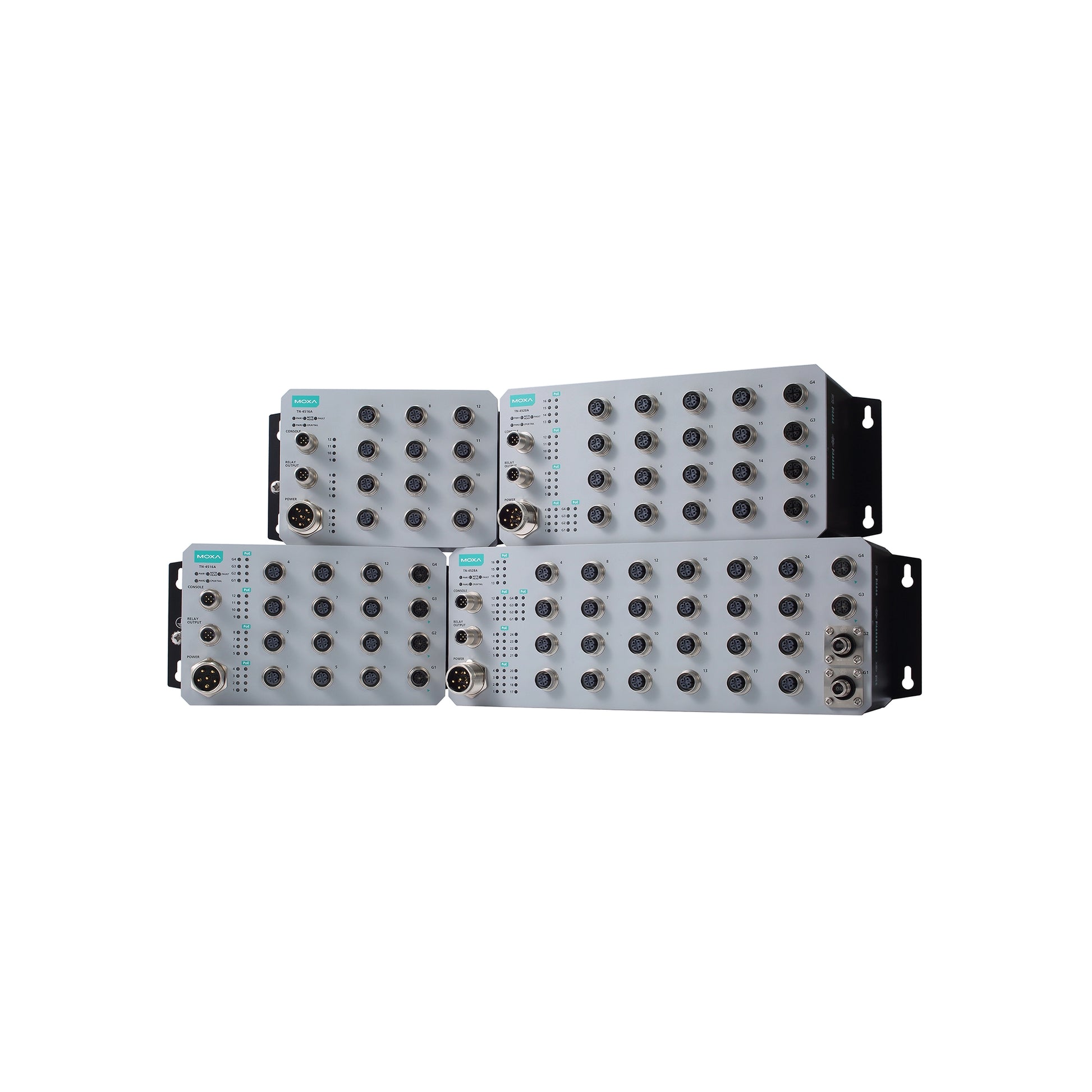

Switch Type: Rugged Ethernet Switches
Port Aggregation: -
Switch and Hub: Physical Characteristics
Dimensions: 229.6 x 132 x 122.3 mm (9.04 x 5.20 x 4.81 in)
Housing: Metal
Installation: Wall Mounting
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMS, Freefall, FCC, Railway, Railway Fire Protection, Safety, Shock, Vibration
Storage Humidity: _
Storage Temperature: -40 to 85°C (-40 to 185°F)
Switch and Hub: Standards and Protocols
Protocols and Work Standards: IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for PoE/PoE+ Output, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Protocols and Management Standards: Back Pressure Flow Control, Flow Control, DHCP Client (options 1/3/50/51/53/54/55/57/66/67), DHCP Server (options 1/3/12/15/42/50/55), DHCP Option 82 (Relay Agent), Port-Based DHCP Server, HTTP, IPv4/IPv6, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, Account Management, DNS Server, Loop Protection
Switch and Hub: Package Checklist
Hardware Installation Guide: Yes
Power Adapter: -
