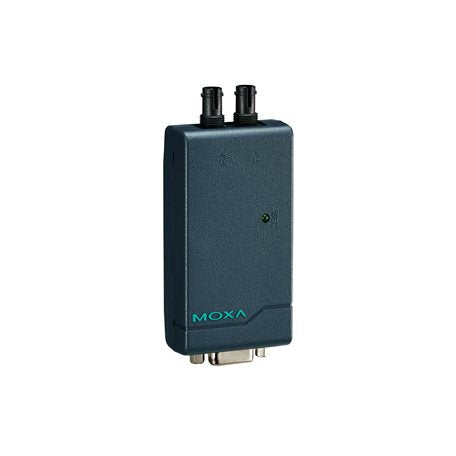

MOXA TCF-90-S-ST SERIAL TO FIBER CONVERTER

MOXA TCF-90-S-ST SERIAL TO FIBER CONVERTER

$570.00 CAD
$570.00 CAD
Sale Sold out

Features and Benefits

  • Uses either external power or power over serial
  • Extends RS-232 transmission up to 40 km with single-mode (TCF-90-S) or 5 km with multi-mode (TCF-90-M)
  • Reduces signal interference
  • Protects against electrical interference and chemical corrosion
  • Compact size
View full details

Description

The TCF-90 is a compact media converter that transmits RS-232 signals over optical fiber. Power is derived from either the serial port or an external power source. The TCF-90 extends RS-232 transmission up to 5 km with multi-mode fiber or up to 40 km with single-mode fiber. A pair of TCF-90 converters can be used to connect two RS-232 devices with optical fiber in full-duplex mode. The optical fiber isolates the data signals from dangerous increases in ground potential, ground loops, and electrical EMI/RFI noise, and it enhances data security by eliminating the harmful effects of RF radiation and susceptibility to electromagnetic radiation.

Data sheet

Specification

Serial Interface
Number of Ports: 2
Serial Standards: RS-232
Flow Control: ADDC (automatic data direction control) for RS-485
Connector: DB9 female
Baudrate: 300 bps to 115.2 kbps
Serial Signals
RS-232: TxD, RxD, GND
Power Parameters
Input Voltage: 5 to 12 VDC
Input Current: 20 mA (max.)
Number of Power Inputs: 1
Overload Current Protection: Supported
Source of Input Power: Power input jack
Physical Characteristics
Housing: Plastic
IP Rating: IP30
Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
Weight: 150 g (0.33 lb)
Installation: Desktop
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV, Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3
Safety: UL 60950-1
Vibration: IEC 60068-2-6
MTBF
Time: 2,272,562 hrs
Standards: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
