Moxa

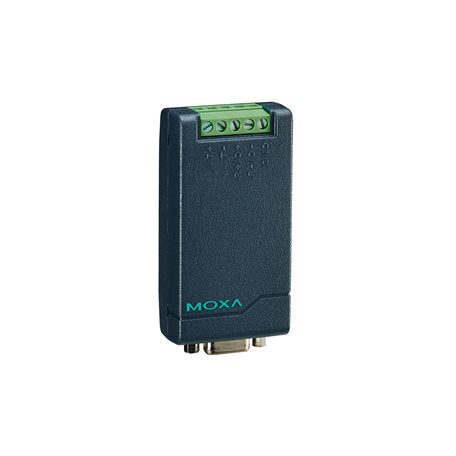

MOXA TCC-80I RS-232 TO RS-422/485 CONVERTER

MOXA TCC-80I RS-232 TO RS-422/485 CONVERTER

Regular price $240.00 CAD
Regular price Sale price $240.00 CAD
Sale Sold out

Features and Benefits

  • Converts RS-422 and both 2-wire and 4-wire RS-485
  • Terminal block serial connector
  • housing : Plastic top cover, metal bottom plate
  • 0 to 60°C operating temperature
  • 2.5 kV isolation protection
View full details

Description

The TCC-80/80I media converters provide complete signal conversion between RS-232 and RS-422/485, without requiring an external power source. The converters support both half-duplex 2-wire RS-485 and full-duplex 4-wire RS-422/485, either of which can be converted between RS232’s TxD and RxD lines.

Automatic data direction control is provided for RS-485. In this case, the RS-485 driver is enabled automatically when the circuitry senses the TxD output from the RS-232 signal. This means that no programming effort is required to control the transmission direction of the RS-485 signal. Moreover, the TCC-80I’s patented LED port power indicator lets you check whether or not the TCC-80I is receiving enough power.

Specification

Serial connection type: DB9 Male
Signal: TxD, RxD, GND, Loop-back wiring: RTS to CTS, DTR to DSR and DCD
Signal: TxD+, TxD-, RxD+, RxD-, GND, Data+, Data
RS-485 Flow Control: ADDC
Data transfer speed (Baudrate): 0.05Kbps to 115.2Kbps
Protection against electrostatic discharge: Contact: 4 kV, Air: 8 kV
Electrical isolation: No
Type of power input: Terminal input
Input Power: 5V DC to 12V DC
Power Consumption: 5V DC, 0.02A
Protection against reverse voltage: No
Protection against overflow: No
Dimensions: 42x80x22mm
Standards and Certifications: RoHS, CRoHS, WEEE, Safety: UL 60950-1, EMC: EN 55022/24, EMI: CISPR 22, FCC Part, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8 (PFMF)
Housing: ABS + PC Plastic
Storage Temperature: -20 to 75°C
Operation Humidity: 5% to 95% non-condensing
Weight: 0.05Kg
