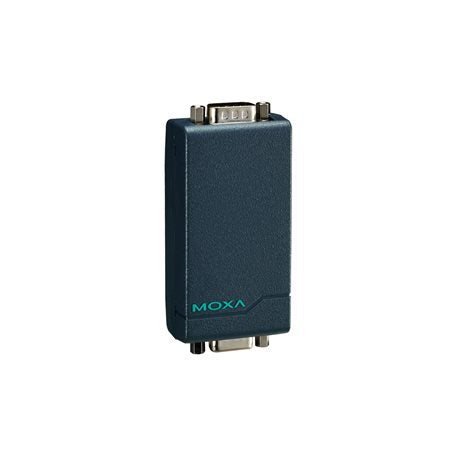

MOXA TCC-80-DB9 RS-232 TO RS-422/485 CONVERTER

MOXA TCC-80-DB9 RS-232 TO RS-422/485 CONVERTER

Regular price $127.00 CAD
Regular price Sale price $127.00 CAD
Sale Sold out

Features and Benefits

  • Converts RS-422 and both 2-wire and 4-wire RS-485
  • DB9 male serial connector
  • Housing : Plastic top cover, metal bottom plate
  • 0 to 60°C operating temperature
View full details

Description

The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS422/485 in critical industrial environments.

Specification


Serial connection type: DB9 Male
Signal: TxD, RxD, GND, Loop-back wiring: RTS to CTS, DTR to DSR and DCD
Signal: TxD+, TxD-, RxD+, RxD-, GND, Data+, Data
RS-485 Flow Control: ADDC
Data transfer speed (Baudrate): 0.05Kbps to 115.2Kbps
Protection against electrostatic discharge: Contact: 4 kV, Air: 8 kV
Electrical isolation: No
Type of power input: DB9 Male
Input Power: 5V DC to 12V DC
Power Consumption: 5V DC, 0.01A
Protection against reverse voltage: No
Protection against overflow: No
Dimensions: 42x91x23.6mm
Standards and Certifications: RoHS, CRoHS, WEEE, Safety: UL 60950-1, EMC: EN 55022/24, EMI: CISPR 22, FCC Part, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8 (PFMF)
Housing: ABS + PC Plastic
Operating Temperature: 0 to 60°C
Storage Temperature: -20 to 75°C
Operation Humidity: 5% to 95% non-condensing
Weight: 0.05Kg
