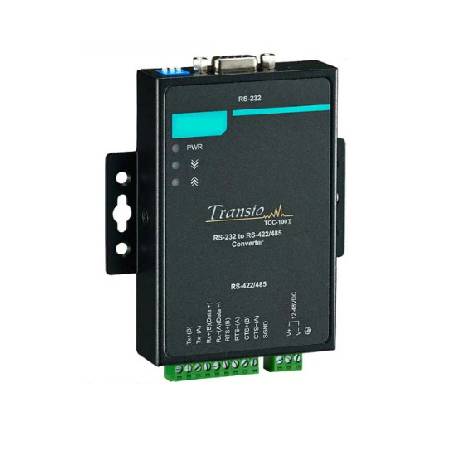

MOXA TCC-100I RS-232 TO RS-422/485 CONVERTER

MOXA TCC-100I RS-232 TO RS-422/485 CONVERTER

$304.00 CAD
$304.00 CAD
Sale Sold out
We have 9 in stock

Features and Benefits

  • RS-232 to RS-422 conversion with RTS/CTS support
  • RS-232 to 2-wire or 4-wire RS-485 conversion
  • Metal housing
  • -20 to 60°C operating temperature
  • 2 kV isolation protection
View full details

Description

The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS422/485 in critical industrial environments.

Data sheet

Specification

Serial connection type: DB9 female
Signal: TxD, RxD, RTS, CTS, GND
Serial connection type: Terminal input
Signal: TxD+, TxD-, RxD+, RxD-, RTS, CTS, GND, Data+, Data-
RS-485 Flow Control: ADDC
Data transfer speed (Baudrate): 0.05Kbps to 921.6Kbps
Protection against electrostatic discharge: 4KV
Electrical isolation: Yes, 2KV
Type of power input: Terminal input
Input Power: 12V DC to 48V DC, 0.15A
Power Consumption: 12V DC, 0.15A
Protection against reverse voltage: Yes
Protection against overflow: Yes
Protection against two short signals: Yes
Dimensions: 67x100.4x22mm
Standards and Certifications: FCC Class A, UL, CE, UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone2 Ex nA nC op is IIC T4 Gc, IECEx Ex nA nC IIC T4 Gc, EN 55022/24, CISPR 22, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8 (PFMF), EN 61000-4-11, RoHS, CRoHS, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, DNV, GL
Housing: Metal
Operating Temperature: -20 to 60°C
Storage Temperature: -40 to 85°C
Operation Humidity: 5% to 95% non-condensing
Weight: 0.148Kg
