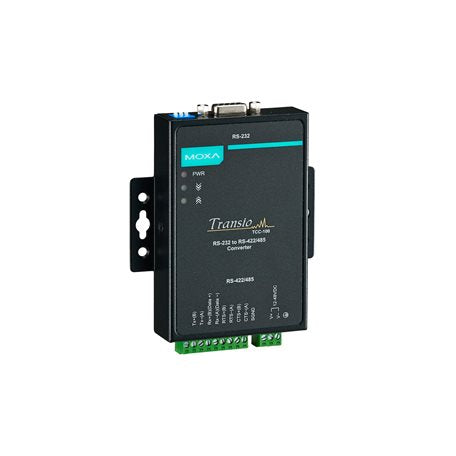

MOXA TCC-100-T RS-232 TO RS-422/485 CONVERTER

MOXA TCC-100-T RS-232 TO RS-422/485 CONVERTER

Regular price $231.00 CAD
Regular price Sale price $231.00 CAD
Sale Sold out

Features and Benefits

  • RS-232 to RS-422 conversion with RTS/CTS support
  • RS-232 to 2-wire or 4-wire RS-485 conversion
  • Metal housing
  • -40 to 85°C operating temperature
View full details

Description

The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS422/485 in critical industrial environments.

Specification

Serial connection type: DB9 female
Signal: TxD, RxD, RTS, CTS, GND
Serial connection type: Terminal input
Signal: TxD+, TxD-, RxD+, RxD-, RTS, CTS, GND Data+, Data
RS-485 Flow Control: ADDC
Data transfer speed (Baudrate): 0.05Kbps to 921.6Kbps
Protection against electrostatic discharge: 4KV
Electrical isolation: No
Type of power input: Terminal input
Input Power: 12V DC to 48V DC, 0.15A
Power Consumption: 12V DC, 0.15A
Protection against reverse voltage: Yes
Protection against overflow: Yes: Protection against two short signals
Dimensions: 67x100.4x22mm
Standards and Certifications: Safety: UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV, EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m, EN 61000-4-4 (EFT): Power: 1 kV; Signal: 0.5 kV, EN 61000-4-5 (Surge): Power: 1 kV, EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m, EN 61000-4-8 (PFMF); Green Product: RoHS, CRoHS, WEEE;
Housing: Metal
Operating Temperature: -40 to 85°C
Storage Temperature: -40 to 85°C
Operation Humidity: 5% to 95% non-condensing
Weight: 0.148Kg
