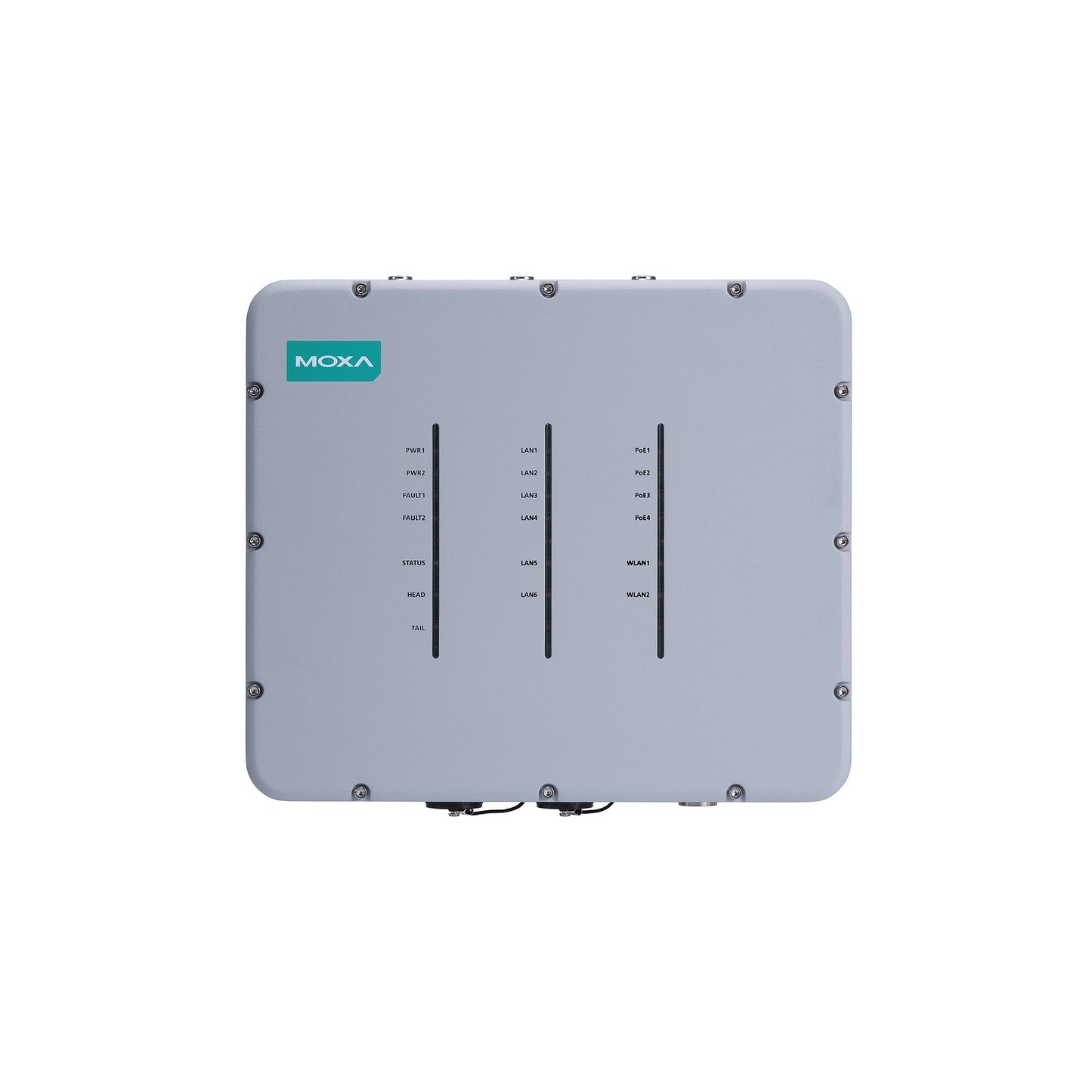

• MOXA-TAP-323-US-CT-T-ManuAuto

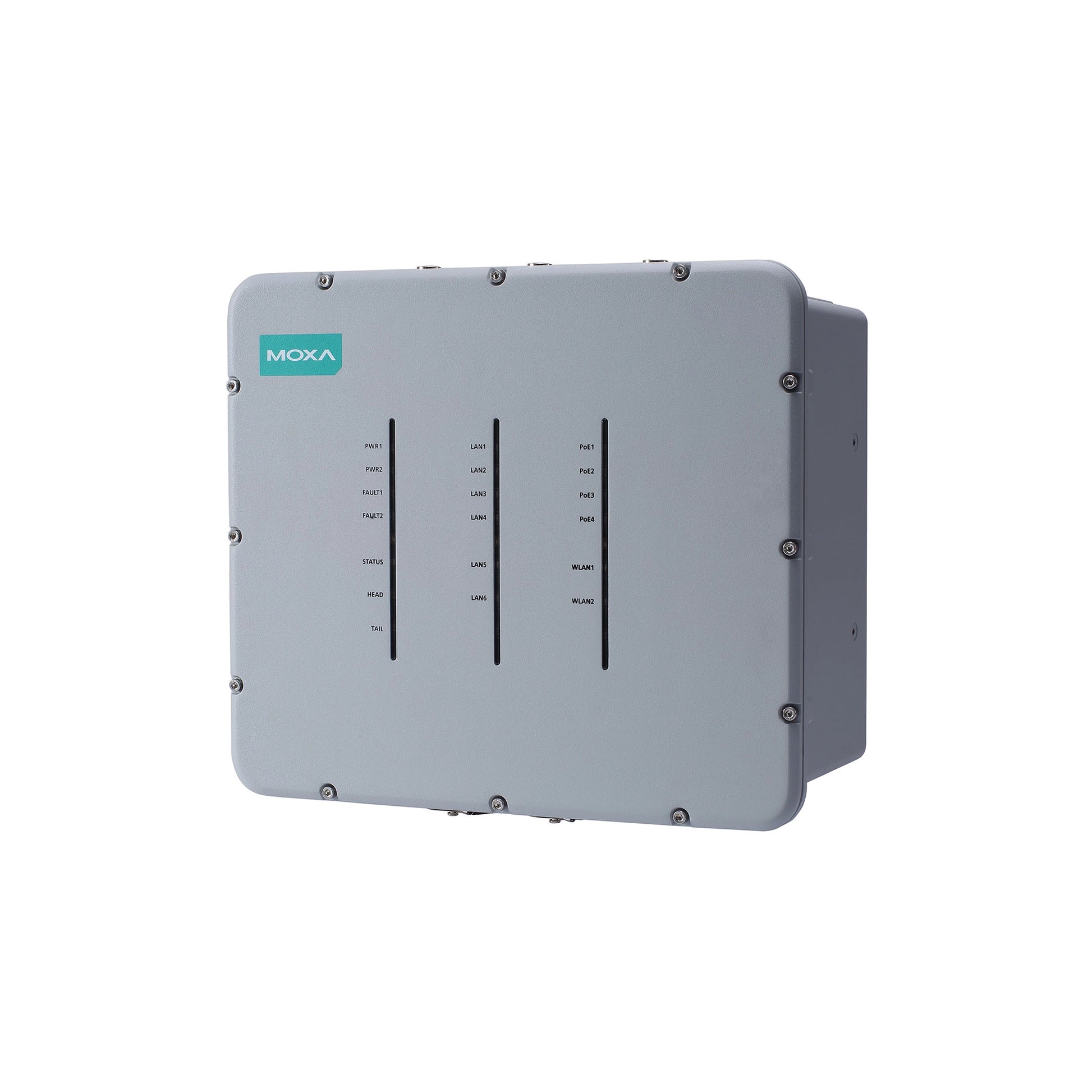

  • MOXA-TAP-323-US-CT-T-ManuAuto-Left

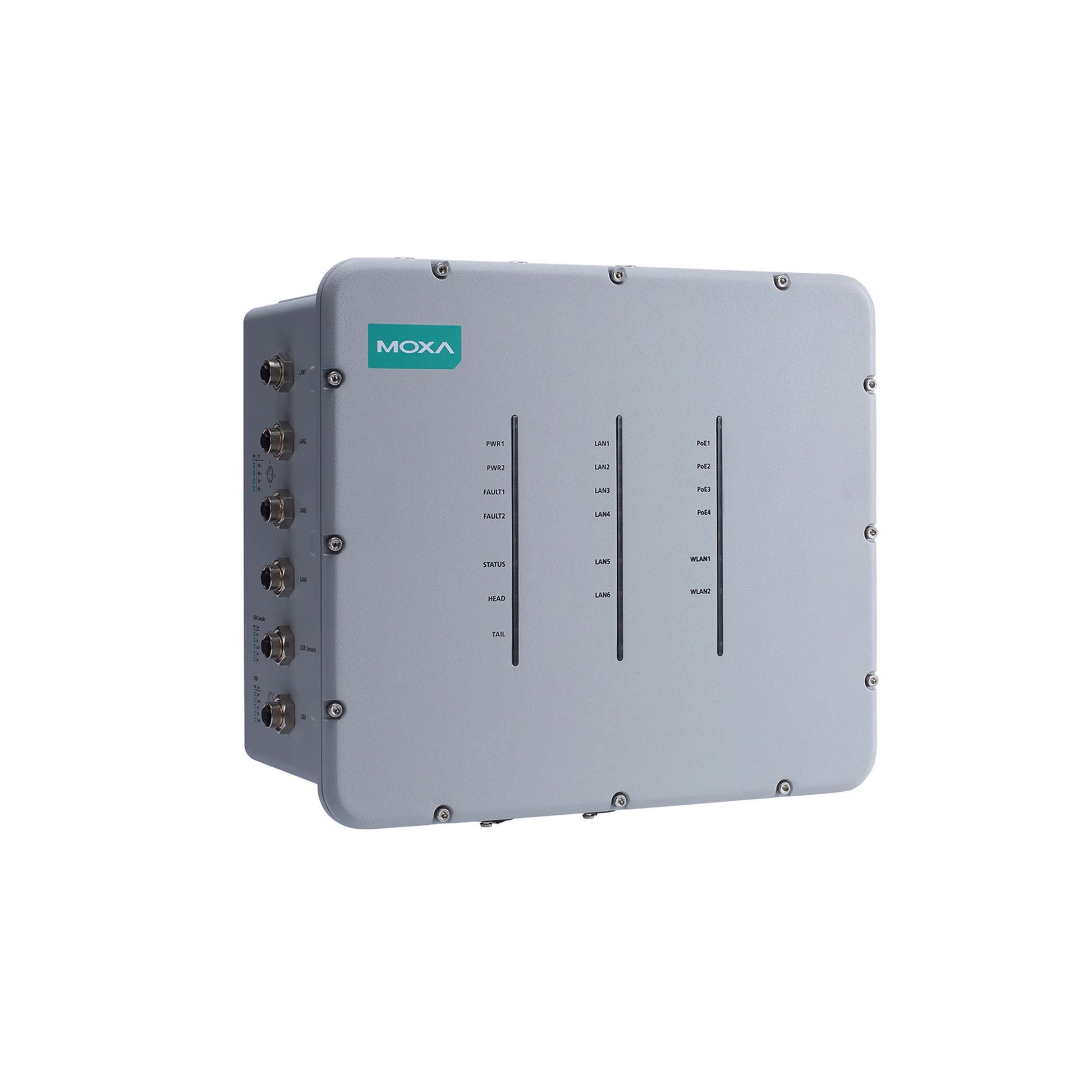

  • MOXA-TAP-323-US-CT-T-ManuAuto-Right

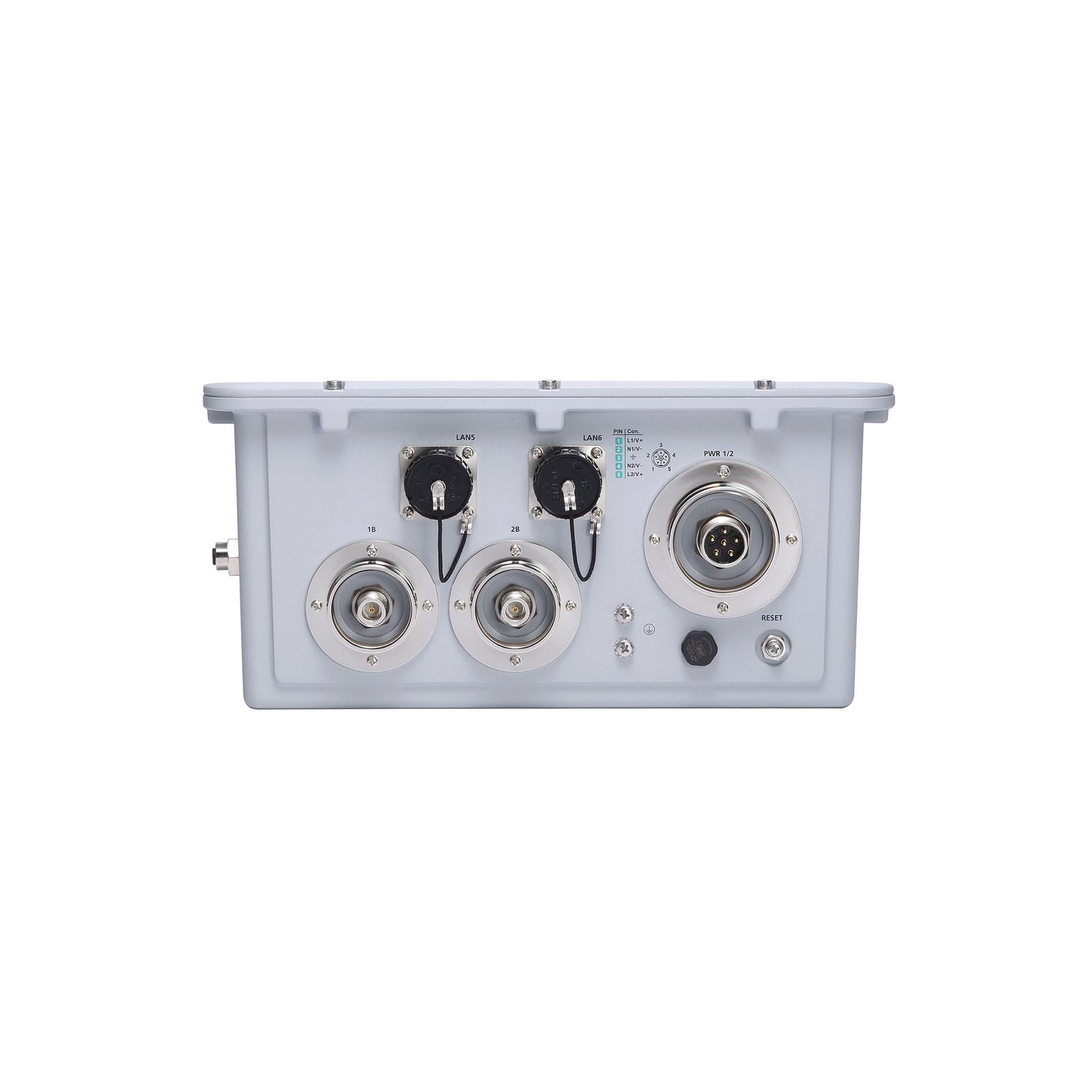

  • MOXA-TAP-323-US-CT-T-ManuAuto-Top

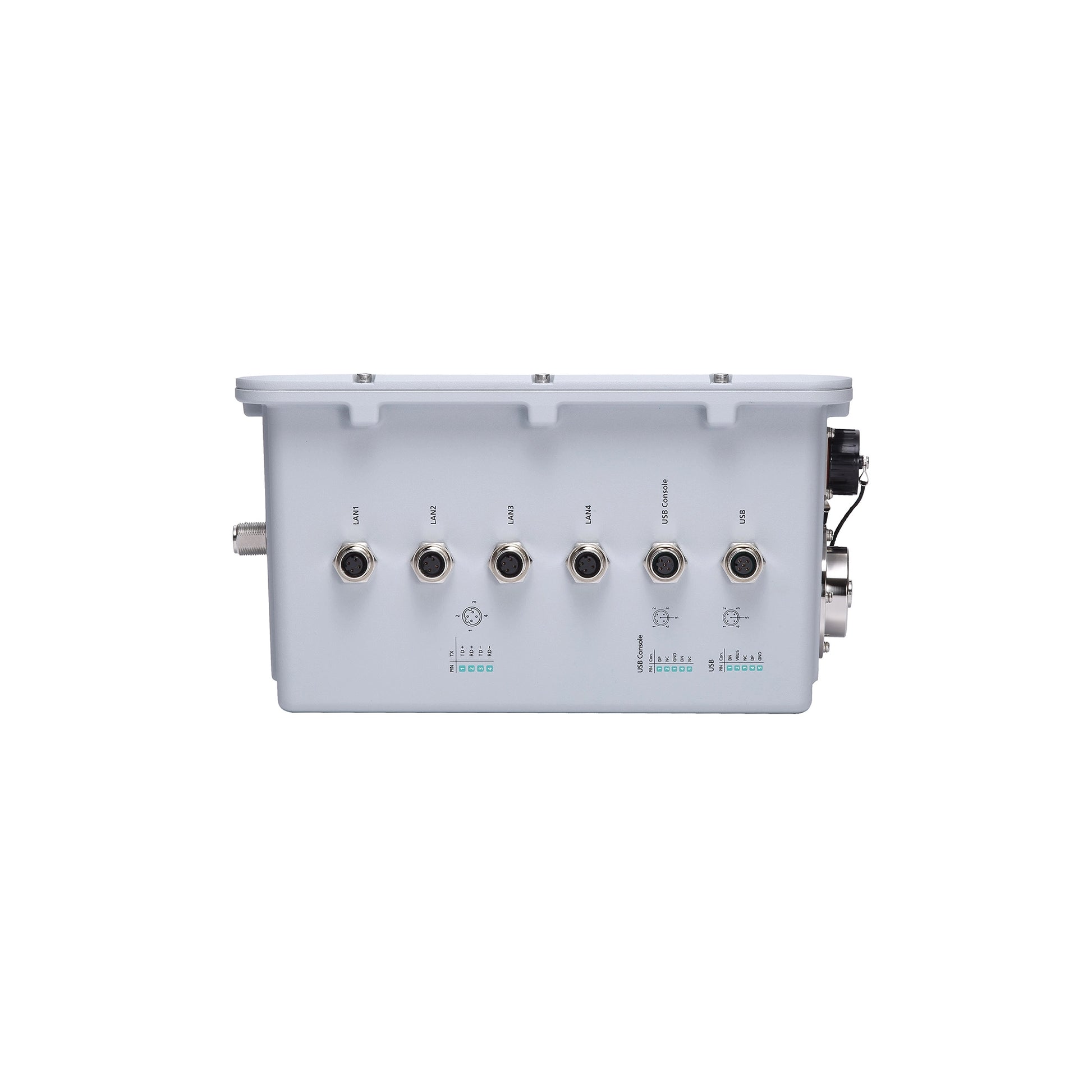

  • MOXA-TAP-323-US-CT-T-ManuAuto-Bottom
1 5

Moxa

MOXA TAP-323-US-CT-T Wireless Access Point

MOXA TAP-323-US-CT-T Wireless Access Point

$12,772.00 CAD
$12,772.00 CAD
Sale Out of Stock

Features and Benefits

  • 2 dual-band radios, IEEE 802.11a/b/g/n compliant
  • Rugged IP68-rated housing and -40 to 75°C operating temperature
  • Controller-based Turbo Roaming (less than 50 ms)
  • 2 fiber SFP slots and 4 PoE ports with M12 LAN connectors
  • Complies with all EN 50155 mandatory test items
  • Complies with EN 50121-4
  • Wireless network redundancy with AeroLink Protection
  • High transmission power for extended reach
View full details

Description

Introduction
The TAP-323 trackside wireless unit is designed for train-to-ground wireless communication. The TAP-323 is a highly compact and rugged wireless unit that integrates two access points, a managed fiber switch, and a wide-range AC/DC power supply into one box. The IP68 housing allows the unit to withstand harsh weather conditions, and the M12 connectors make the unit shock and vibration-resistant. The TAP-323 supports advanced controller-based Turbo Roaming technology for train-to-ground wireless applications such as communication-based train control (CBTC) and CCTV. The unit can supply power to up to 4 PoE devices while providing reliable LAN communication with Moxa’s Turbo Chain technology.

Data sheet

Specification

Access Point : Interfaces
Channel Bandwidth: 20 MHz, 40 MHz
Frequency Band: 2.4 GHz, 5 GHz
Modulation Type: DSSS, OFDM
10/100/1000BaseT(X) Ports: -
PoE Ports: PoE (IEEE 802.3af)
Wireless Security: WEP encryption (64-bit, 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal
WLAN Antenna Connector: 5 N-type female
WLAN Operation Mode: Access point
Security: HTTPS/SSL, RADIUS, SSH
WLAN Standards: 802.11a/b/g/n, 802.11i Wireless Security
Transmission Rates: 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15)
1000BaseSFP Slots: 2
10/100BaseT(X) Ports: 4 (M12 D-coded 4-pin female connector)
Digital Inputs: No
Console Port: USB-M12 console (M12 B-coded 5-pin female connector)
Connections: PoE, M12, Fiber
M12 Connector: M12 A-coded 5-pin female (for ABC-02 USB storage)

Access Point : Security
Security: HTTPS/SSL, RADIUS, SSH

Access Point : Power Requirement
Input Current: 110 to 220 VAC, 110 to 220 VDC
Input Voltage: Redundant dual inputs, 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC)
Connector: 6-pin M23 Connector
Power Consumption: 85 W (max.)
Reverse Polarity Protection: Yes

Access Point : Physical Characteristics
Humidity: 5 to 95% (non-condensing)
Dimensions Packaged: 324 x 279 x 156 mm (12.76 x 10.98 x 6.142 in)
IP Rating: IP68
Weight (Packaged): 10,000 g (22.22 lb)
Standards and Certifications: Radio Frequency, Railway, Railway Fire Protection
Safety: EN 60950-1, UL 60950-1, IEC 60950-1
EMC: EN 61000-6-2/-6-4, EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
Housing: Metal
EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
Installation: Wall mounting (standard), DIN-rail mounting (optional)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)

Access Point : General
Management: SNMPv1/v2c/v3, DHCP Server/Client, IPv4, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console, Wireless Search Utility
VLAN ID Range: VID 1 to 4094
Time Management: SNTP
MTBF: 290,937 hrs
LED Indicators: -
