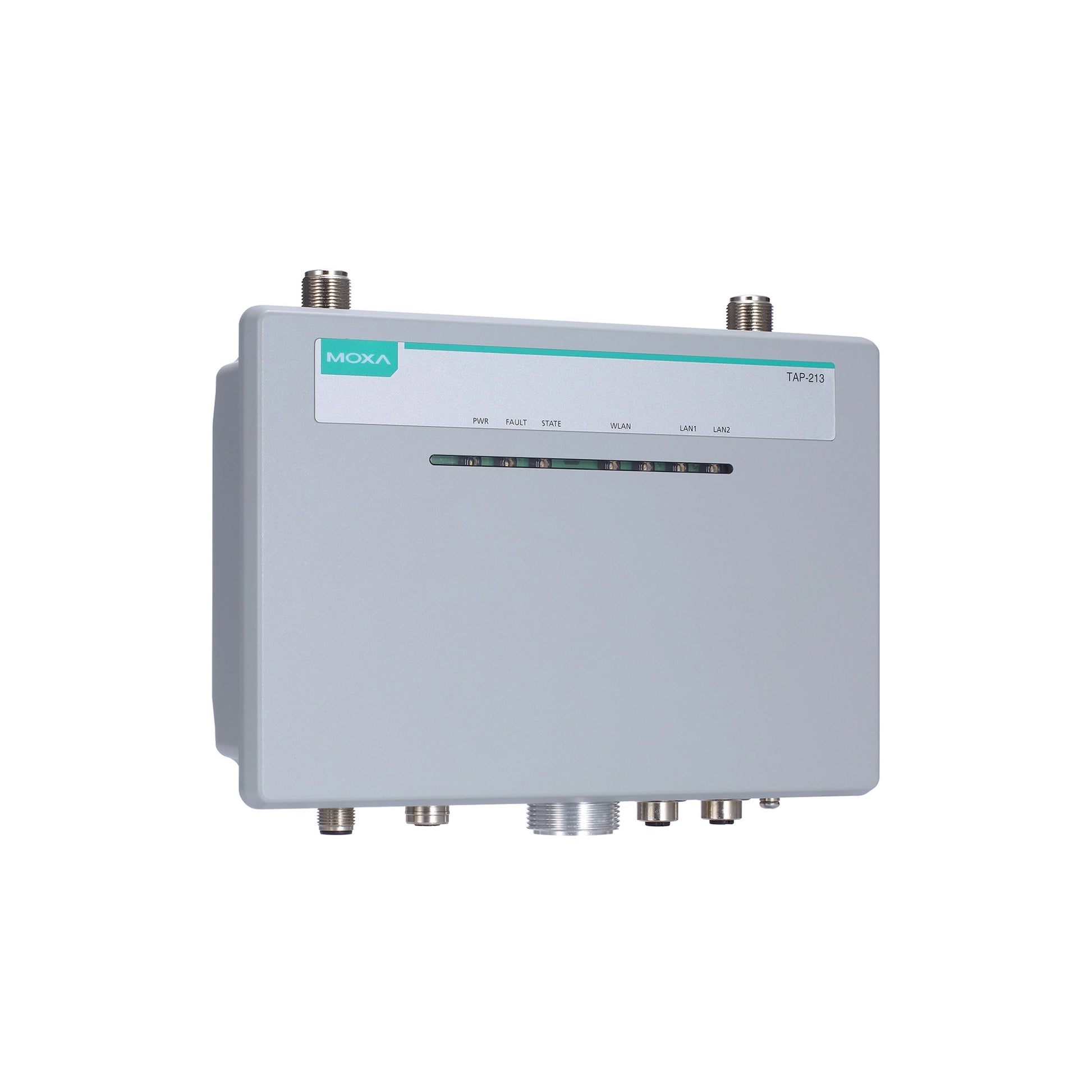

• MOXA-TAP-213-EU-CT-T-ManuAuto-Right

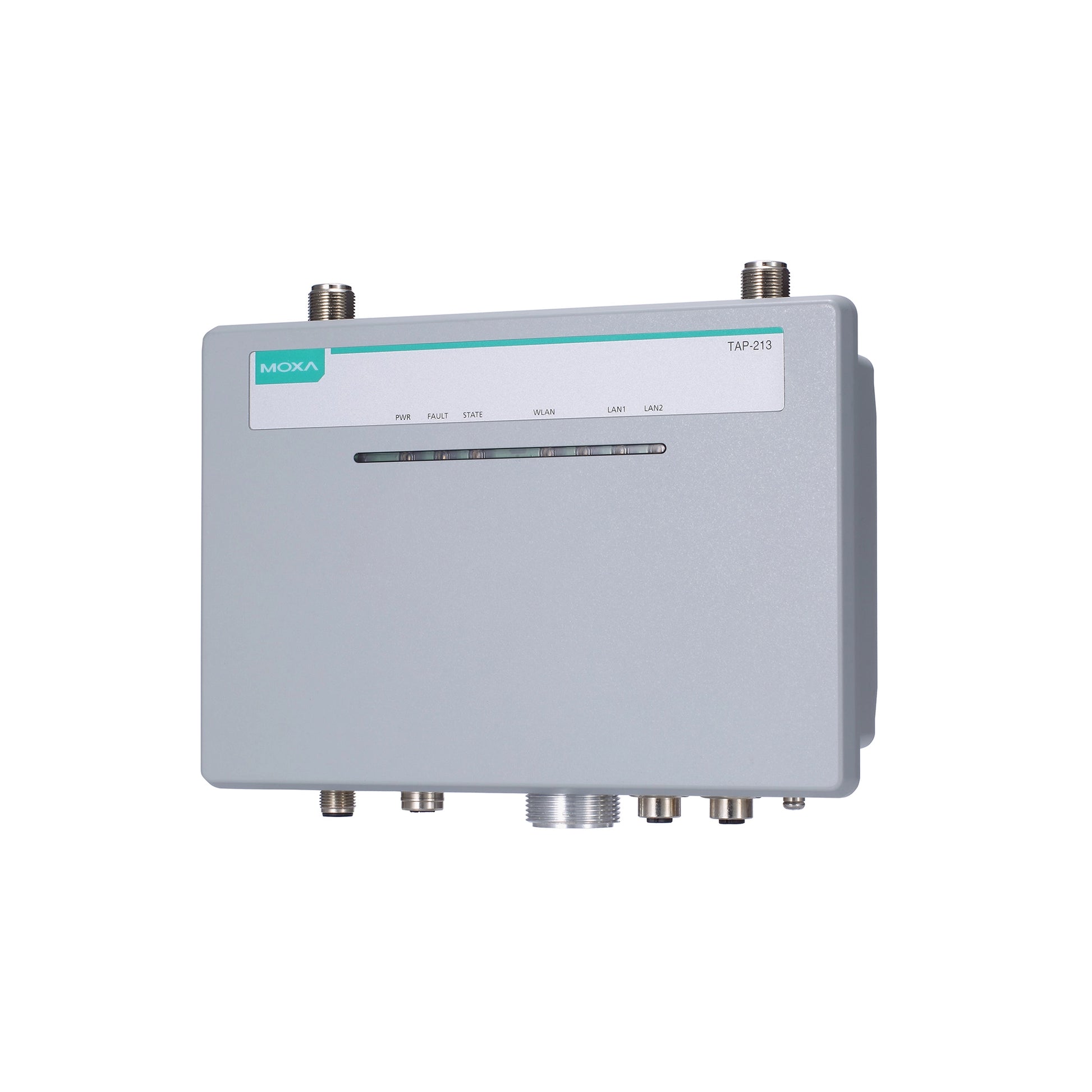

  • MOXA-TAP-213-EU-CT-T-ManuAuto-Left
1 2

Moxa

MOXA TAP-213-EU-CT-T Wireless Access Point

MOXA TAP-213-EU-CT-T Wireless Access Point

$5,977.00 CAD
$5,977.00 CAD
Sale Out of Stock

Features and Benefits

  • IEEE 802.11a/b/g/n compliant
  • Can be powered by redundant dual DC power inputs or PoE
  • QoS (WMM) and VLAN for efficient network traffic
  • Controller-based Turbo Roaming (less than 50 ms)
  • Complies with all EN 50155 mandatory test items
  • Rugged IP68-rated housing and -40 to 75°C operating temperature
  • Wireless network redundancy with AeroLink Protection
View full details

Description

Introduction
The TAP-213 outdoor wireless AP/client is the ideal ruggedized wireless solution for railway onboard and train-to-ground applications such as CCTV and CBTC communications. The TAP-213’s dust-tight, weatherproof design is IP68-rated, allowing you to extend wireless networks to outdoor locations and critical environments. The two redundant DC power inputs increase the reliability of the power supply and the device can also be powered via PoE for easier deployment. The TAP-213 is compliant with the mandatory test items of the EN 50155 standard to ensure suitability for rolling stock applications. With many hardened industrial-grade features, the TAP-213 will provide stable and reliable wireless connectivity, especially for rail onboard environments.

Data sheet

Specification

Access Point: Interfaces
Channel Bandwidth: 20 MHz, 40 MHz
Frequency Band: 2.4 GHz, 5 GHz
Modulation Type: DSSS, MIMO-OFDM, OFDM
10/100/1000BaseT(X) Ports: 1 x (M12 X-coded 8-pin female connector)
PoE Ports: No
Wireless Security: WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal
WLAN Antenna Connector: 2 N-type female
WLAN Operation Mode: Access point, Client, Client-Router, Sniffer
WLAN Standards: 802.11a/b/g/n, 802.11i Wireless Security
Transmission Rates: 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps; 802.11n HT20: 6.5 to 144.4 Mbps (MCS0 to MCS15); 802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15)
1000BaseSFP Slots: 1
10/100BaseT(X) Ports: No
Digital Inputs: No
Console Port: USB-M12 console (M12 B-coded 5-pin female connector)
Connections: PoE, M12, Fiber
M12 Connector: M12 A-coded 5-pin female (for ABC-02 USB storage)

Access Point: Security
Security: HTTPS/SSL, RADIUS, SSH

Access Point: Power Requirement
Input Current: 0.65 A @ 24 VDC, 0.16 A @ 110 VDC
Input Voltage: 24 to 110 VDC, Redundant dual inputs
Connector: M12 A-coded 4-pin male connector
Power Consumption: 17.6 W (max.)
Reverse Polarity Protection: Yes

Access Point: Physical Characteristics
Humidity: 5 to 95% (non-condensing)
Dimensions Packaged: 220 x 150 x 50.5 mm (8.66 x 5.91 x 1.99 in)
IP Rating: IP68
Weight (Packaged): 1,500 g (3.31 lb)
Standards and Certifications: Radio Frequency, EN 50121-4, EN 50155, Railway Fire Protection
Safety: EN 60950-1, UL 60950-1, IEC 60950-1
EMC: EN 61000-6-2/-6-4
EMI: CISPR 32, FCC Part 15B Class A
Housing: Metal
EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
Installation: Wall mounting (standard), DIN-rail mounting (optional), Pole mounting (optional)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)

Access Point: General
Management: SNMPv1/v2c/v3, DHCP Server/Client, IPv4, LLDP, SMTP, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console, Wireless Search Utility
VLAN ID Range: VID 1 to 4094
Time Management: NTP Client, SNTP
MTBF: 758,369 hrs
LED Indicators: -
