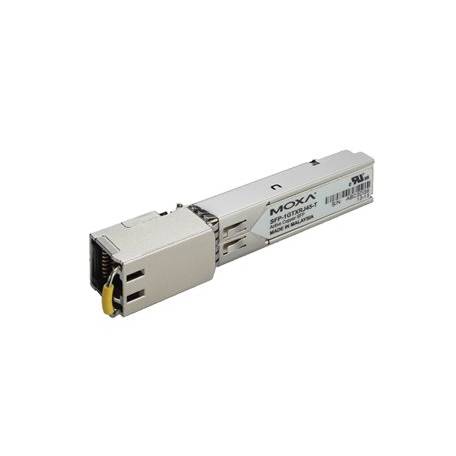

MOXA SFP-1GTXRJ45-T GIGABIT ETHERNET COPPER SFP MODULE

MOXA SFP-1GTXRJ45-T GIGABIT ETHERNET COPPER SFP MODULE

$526.00 CAD
$526.00 CAD
Sale Sold out

Features and Benefits

  • 1 x 10/100/1000Mbps T(x) RJ45 connector
  • Compliant with IEEE 802.3, 2002
  • TTL signal detection (RX los)
  • RoHS compliant and lead free
  • -40 to 75°C Operating Temperature
View full details

Description

The SFP-1G Copper Series 1-port Gigabit Ethernet SFP modules are available as optional accessories for a wide range of Moxa Ethernet switches.

Data sheet

Specification

100Mb Fiber optic ports: Yes: 1 Port
1Gb Fiber Optic Ports: No
Minimum output power converter: -
Sensitivity to receiving information: -
Wavelength: -
Maximum data transmission distance: -
Multi-Plex technology Support (WDM): -
The two-way transmission (BiDi): -
Digital Diagnostics Monitoring (DDM): -
Require cable diameter: -
Compatible devices: Moxa equipment
Standards and Certifications: CE, FCC, TÜV (EN 60825), UL 60950-1
