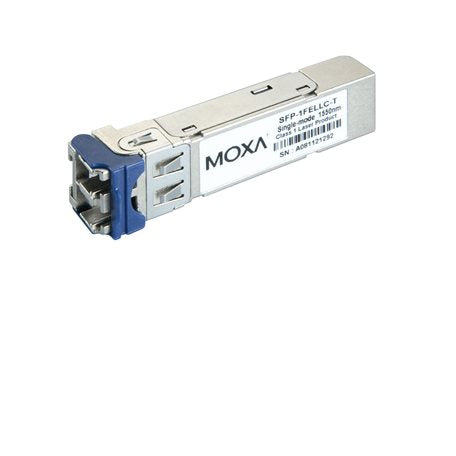

MOXA SFP-1FELLC-T FAST ETHERNET SFP MODULE

MOXA SFP-1FELLC-T FAST ETHERNET SFP MODULE

$1,750.00 CAD
$1,750.00 CAD
Sale Sold out

Features and Benefits

  • 1 x Single-mode module with LC connector
  • Transmission Distance : 80 km
  • Digital Diagnostic Monitor Function
  • IEEE 802.3u compliant
  • Differential PECL inputs and outputs
  • TTL signal detect indicator
  • Class 1 laser product; complies with EN 60825-1
  • -40 to 85°C Operating Temperature
View full details

Description

The SFP-1FE Series 1-port Fast Ethernet SFP modules are available as optional accessories for a wide range of Moxa Ethernet switches.

Data sheet

Specification

100Mb Fiber optic ports: No
1Gb Fiber Optic Ports: Yes - 1 LC single-mode port
Minimum output power converter: Not specified
Sensitivity to receiving information: 1550nm
Maximum data transmission distance: 80 km
Multi-Plex technology Support (WDM): No
The two-way transmission (BiDi): No
Digital Diagnostics Monitoring (DDM): Yes
Require cable diameter: Not specified
Compatible devices: Moxa equipment
Standards and Certifications: CE, FCC, TÜV, UL 60950-1
