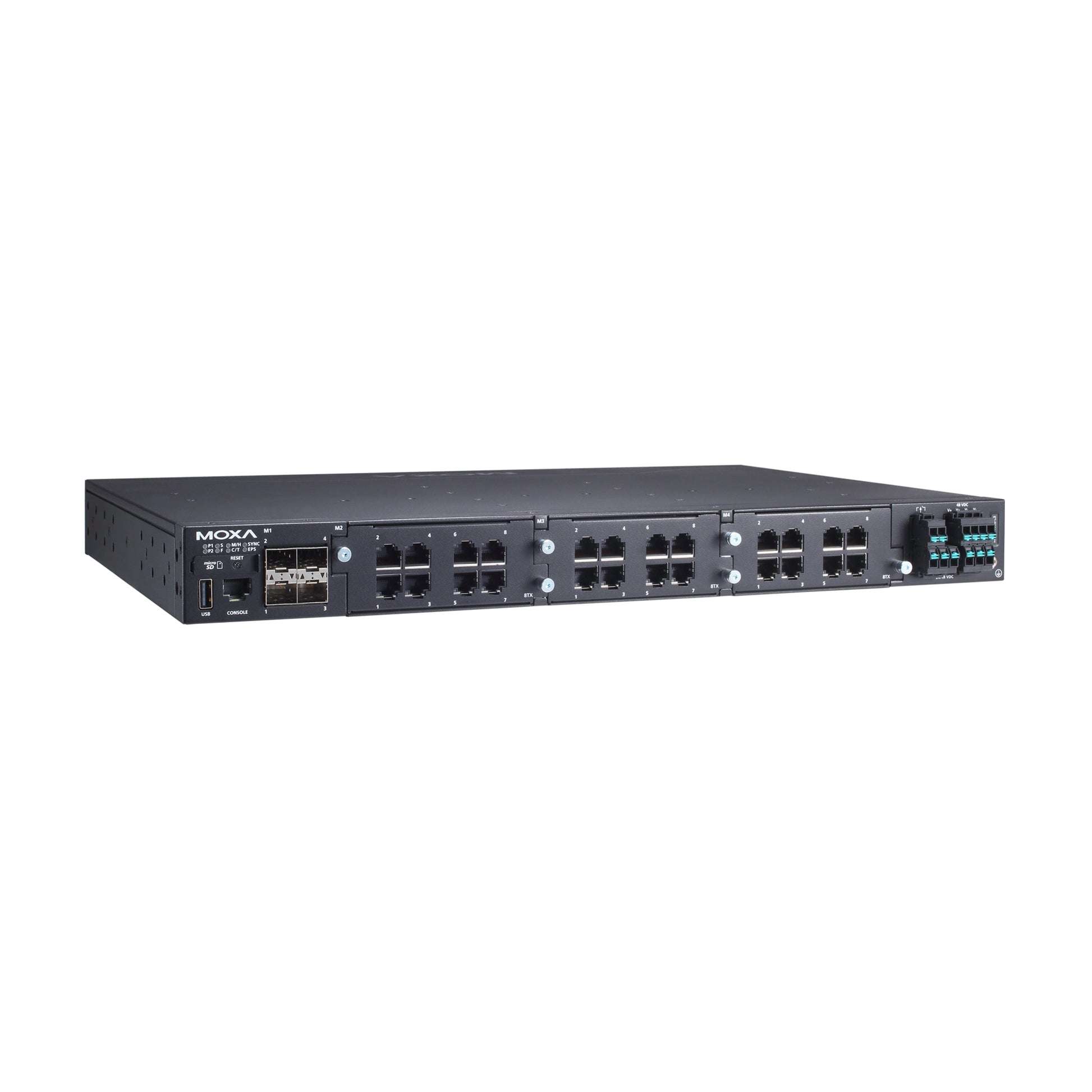

MOXA RKS-G4028-PoE-4GS-LV-T Rackmount Ethernet Switch

MOXA RKS-G4028-PoE-4GS-LV-T Rackmount Ethernet Switch

$7,397.00 CAD
$7,397.00 CAD
Sale Out of Stock

Features and Benefits

  • Meets a wide range of demands
  • Fast Ethernet to full Gigabit industrial networks
  • Up to 28 Gigabit ports
  • Modular interfaces for flexible connector type combinations
  • Support for IEEE 802.3bt PoE for up to 90W output per port
  • High EMC immunity compliant with IEC 61850-3 and IEEE 1613
  • Hardware-based IEEE 1588 PTP for high-precision time synchronization
  • Turbo Ring and Turbo Chain (recovery time < 20 ms)
  • Supports STP/RSTP/MSTP
  • -40 to 75°C operating temperature range
  • Supports MXstudio for easy, visualized industrial network management
  • Developed according to the IEC 62443-4-1
  • Compliant with the IEC 62443-4-2 industrial cybersecurity standards
View full details

Description

Introduction
The RKS-G4028 Series is designed to meet the rigorous demands of mission-critical applications for industry and business, such as power substation automation systems (IEC 61850-3, IEEE 1613), railway applications (EN 50121-4), and factory automation systems. The RKS-G4028 Series’ Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on wiring costs.

The modular design of the RKS-G4028 Series also makes network planning easy and allows greater flexibility by letting you install up to 28 Gigabit ports with various connector types.

Data sheet

Specification

Switch and Hub: Interface
Number of ports: 28 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber optic multi mode (Megabit) Ports: No
100Mb Fiber optic single mode (Megabit) Ports: No
1000Mb SFP Fiber optic (Gigabit) Ports: Yes: 4 ports with PoE Ethernet module support
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No

Switch and Hub: Features and capabilities
Backup: -

Switch and Hub: LED Indicators
LED Per Port: -

Switch and Hub: Power Requirements
Maximum power consumption: Max. 60.72 W @ 24 VDC, Max. 60 W @ 48 VDC
Power Consumption (Output Adapter): -
Power Input Plugin (Redundant): No

Switch and Hub: General
Fan / Fanless: Fanless
MTBF: 488,598 hours

Switch and Hub: Switch specifications
Most forwarding speed: -
Network working layers: Layer 3
Switch type: Managed
Port Aggregation: Yes

Switch and Hub: Physical Characteristics
Housing: -
Installation: Rack mounting
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Safety, EMC, EMI, NEMA TS2, EMS, IEC 61850-3, IEEE 1613, Railway, Freefall, Shock, Vibration, IEC 62443-4-1, IEC 62443-4-2
Storage Humidity: -

Switch and Hub: Standards and protocols
Protocols and work standards: IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3bt for Power over Ethernet
Protocols and management standards: IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Fiber check, DHCP Relay Agent (Option 82), Port Mirroring (SPAN, RSPAN)

Switch and Hub: Package Checklist
Hardware installation guide: Yes
Power adapter: -
Power cable: -
