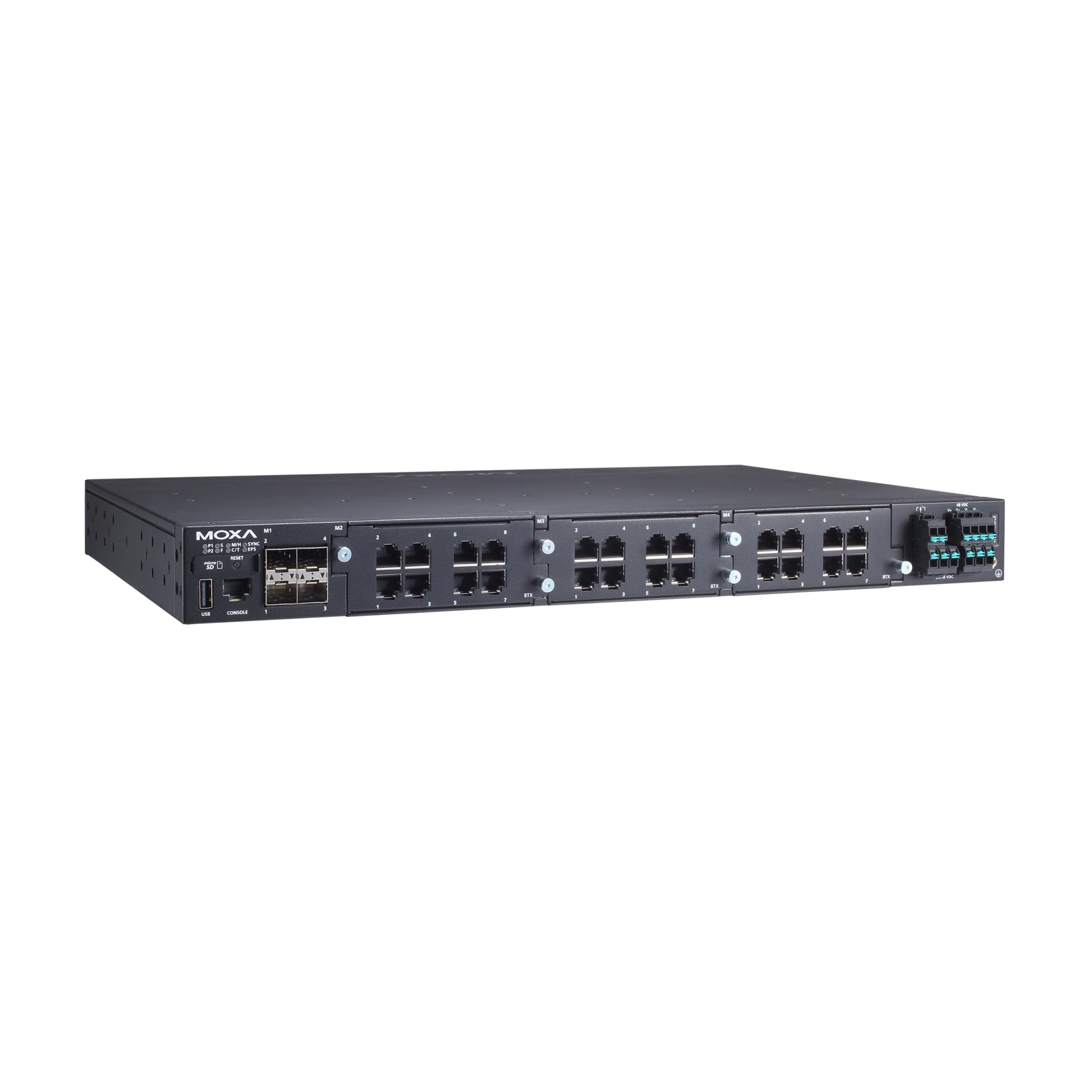

MOXA RKS-G4028-L3-PoE-4GS-LV-T Rackmount Ethernet Switch

MOXA RKS-G4028-L3-PoE-4GS-LV-T Rackmount Ethernet Switch

$9,812.00 CAD
$9,812.00 CAD
Sale Out of Stock

Features and Benefits

  • Meets a wide range of demands from Fast Ethernet to full Gigabit industrial networks (up to 28 Gigabit ports)
  • Modular interfaces for flexible connector type combinations
  • Support for IEEE 802.3bt PoE for up to 90 W output per port
  • High EMC immunity compliant with IEC 61850-3 and IEEE 1613
  • Hardware-based IEEE 1588 PTP for high-precision time synchronization
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • -40 to 75°C operating temperature range
  • Supports MXstudio for easy, visualized industrial network management
  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
View full details

Description

Introduction
The RKS-G4028 Series is designed to meet the rigorous demands of mission-critical applications for industry and business, such as power substation automation systems (IEC 61850-3, IEEE 1613), railway applications (EN 50121-4), and factory automation systems. The RKS-G4028 Series’ Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on wiring costs.

The modular design of the RKS-G4028 Series also makes network planning easy and allows greater flexibility by letting you install up to 28 Gigabit ports with various connector types.

Data sheet

Specification

Switch and Hub: Interface
Number of ports: 28 Ports
10/100Mb RJ45 (Megabit) Ports: -
10/100/1000Mb RJ45 (Gigabit) Ports: -
100Mb Fiber optic multi mode (Megabit) Ports: -
100Mb Fiber optic single mode (Megabit) Ports: -
1000Mb SFP Fiber optic (Gigabit) Ports: 4 Slots
10/100Mb (Megabit) POE Ports: -
100Mb SFP Fiber optic (Megabit) Ports: -
10/100/1000Mb (Gigabit) POE Ports: -
Other ports: There are 3 module slots on the switch. Users can select different types of modules to insert into the switch. The modules that can be selected include 8-port/6-port modules with 10/100/1000BaseT(X), 10/100BaseT(X), 100/1000BaseSFP, or 100BaseFX (SC/ST connector) interfaces.

Switch and Hub: Features and capabilities
Backup: -

Switch and Hub: LED Indicators
LED Per Port: Yes

Switch and Hub: Power Requirements
Maximum power consumption: Max. 60.72 W @ 24 VDC, Max. 60 W @ 48 VDC
Power Consumption (Output Adapter): -
Power Input Plugin (Redundant): No

Switch and Hub: General
Fan / Fanless: Fanless
MTBF: 488,598 hours

Switch and Hub: Switch specifications
Most forwarding speed: -
Network working layers: Layer 3
Switch type: Managed
Port Aggregation: Yes

Switch and Hub: Physical Characteristics
Housing: -
Installation: Rackmount
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: EMC, EMI, EMS, Safety, EN 50121-4, NEMA TS2, Vibration, Shock, Freefall, IEC 61850-3, IEEE 1613
Storage Humidity: -

Switch and Hub: Standards and protocols
Protocols and work standards: -
Protocols and management standards: IPv4, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Fiber check, DHCP Relay Agent (Option 82), Port Mirroring (SPAN, RSPAN)

Switch and Hub: Package Checklist
Hardware installation guide: Yes
Power adapter: No
Power cable: No
