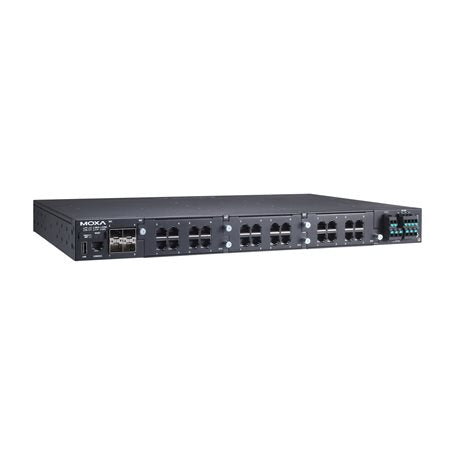

MOXA RKS-G4028-L3-4GS-2HV-T RACKMOUNT ETHERNET SWITCH

MOXA RKS-G4028-L3-4GS-2HV-T RACKMOUNT ETHERNET SWITCH

$7,630.00 CAD
$7,630.00 CAD
Sale Sold out

Features and Benefits

  • 4 x 100/1000BaseSFP ports, 3 slots for Ethernet modules, 2 isolated power supplies
  • Max. No. of Ports: 28 Ports
  • L3 Functionality
  • 110/220 VAC/ VDC Input Power
  • -40 to 75°C operating temperature
  • Support Redundant Power Supplies
  • High EMC immunity compliant with IEC 61850-3 and IEEE 1613
  • Hardware-based IEEE 1588 PTP for high-precision time synchronization
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
View full details

Description

Introduction
The RKS-G4028 Series is designed to meet the rigorous demands of mission-critical applications for industry and business, such as power substation automation systems (IEC 61850-3, IEEE 1613), railway applications (EN 50121-4), and factory automation systems. The RKS-G4028 Series’ Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on wiring costs.

The modular design of the RKS-G4028 Series also makes network planning easy and allows greater flexibility by letting you install up to 28 Gigabit ports with various connector types.

You can also find the RKS-G4028-L3-4GT-2LV-T, RKS-G4028-L3-PoE-4GS-2LV-T, RKS-G4028-L3-PoE-4GS-LV-T, and RKS-G4028-PoE-4GS-2HV-T model in the RKS-G4028 Series.

Data sheet

Specification

Switch and Hub: Interface
Number of Ports: 28 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: No
100Mb Fiber Optic Multi-Mode (Megabit) Ports: No
100Mb Fiber Optic Single-Mode (Megabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: Yes, 4 ports
10/100Mb (Megabit) POE Ports: No
100Mb SFP Fiber Optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) POE Ports: No

Switch and Hub: Features and Capabilities
Backup: -

Switch and Hub: LED Indicators
LED Per Port: Yes

Switch and Hub: Power Requirements
Maximum Power Consumption: Max. 60.5 W @ 110 VDC, Max. 63.8 W @ 220 VDC, Max. 62.2 W @ 110 VAC, Max. 64.1 W @ 220 VAC
Power Consumption (Output Adapter): -
Power Input Plugin (Redundant): Yes
Overload Current Protection: Yes
Reverse Polarity Protection: Yes

Switch and Hub: General
Fan / Fanless: Fanless
MTBF: 483,436 hours

Switch and Hub: Switch Specifications
Most Forwarding Speed: -
Network Working Layers: Layer 3
Switch Type: Managed
Port Aggregation: Yes

Switch and Hub: Physical Characteristics
Housing: -
Installation: Rackmount
Operation Humidity: 5 to 95% (non-condensing)

Switch and Hub: Standards and Certifications
Standards and Certifications: Safety, EMC, EMI, NEMA TS2, EMS, IEC 61850-3, IEEE 1613, Railway, Freefall, Shock, Vibration, IEC 62443-4-1, IEC 62443-4-2
Storage Humidity: -

Switch and Hub: Standards and Protocols
Protocols and Work Standards: STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, MRP, Link Aggregation, Network Loop Protection, MSTP
Protocols and Management Standards: IPv4/IPv6, Flow Control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Fiber Check, DHCP Relay Agent (Option 82), Port Mirroring (SPAN, RSPAN)

Switch and Hub: Package Checklist
Hardware Installation Guide: Yes
Power Adapter: -
Power Cable: -
