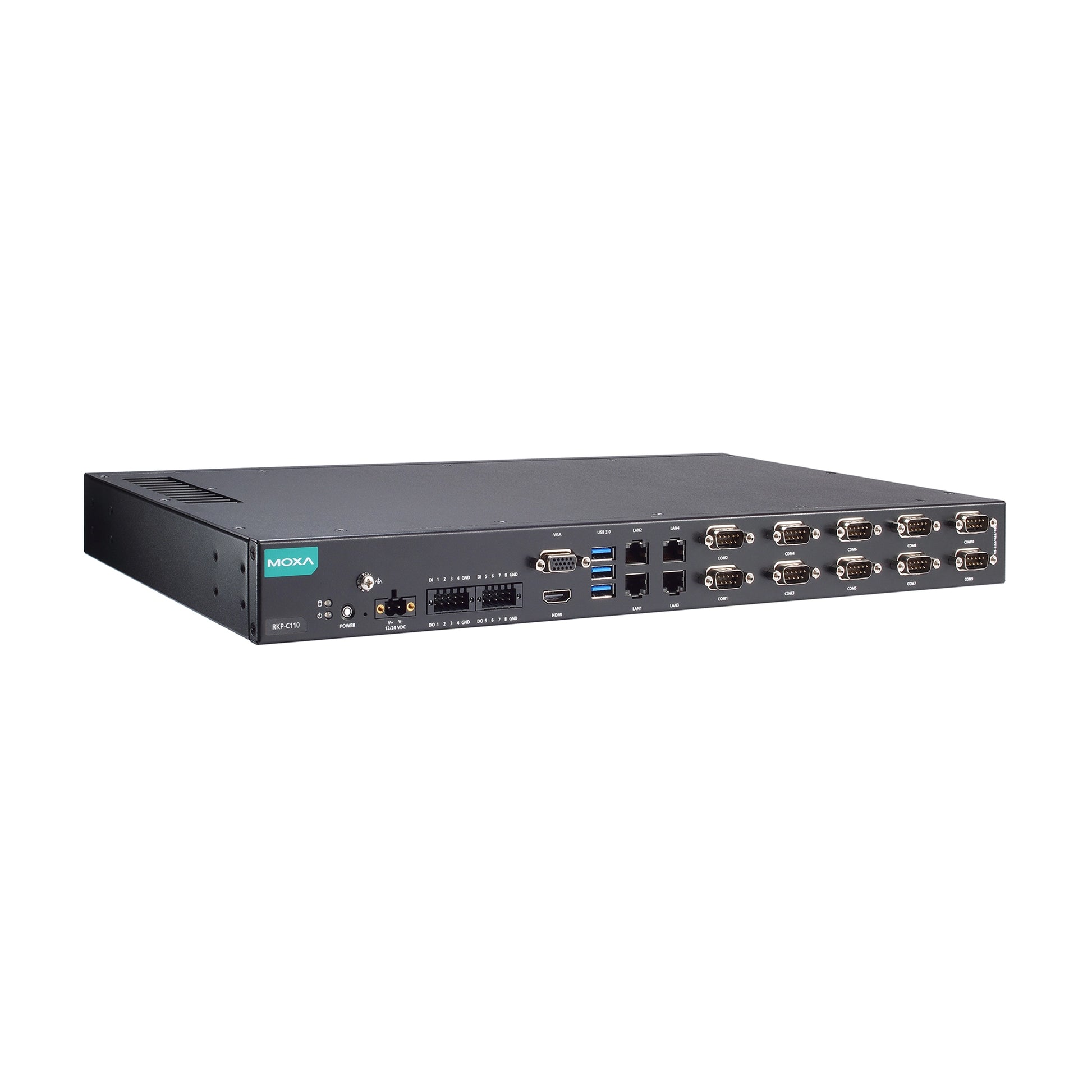

Industrial Computer
CPU: Intel® Core™ i7-185G7E processor
DRAM: 8 GB DDR4
OS (pre-installed): -
Interface
Console Port: -
LAN: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Magnetic Isolation Protection: 1.5 kV (built-in)
Digital Input/Output Channels: DIs x 8
Serial Ports: RS-232/422/485 ports x 10, software selectable (DB9 male)
Serial Standards: RS-232/422/485
USB: USB 3.0 hosts x 3, type-A connectors
Digital Output
Output Channels: DOs x 8
Output Voltage: 0 to 24 VDC
Serial Communication Parameters
Baudrate: 50 bps to 115.2 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: Even, Odd, Space, Mark, None
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
LED Indicators
System: Power x 1, Storage x 1
LAN: 2 per port (10/100/1000 Mbps)
Serial: -
Power Requirements
Input Voltage: 12/24 VDC
Input Current: -
Power Consumption: 90 W
General
Alert Tools: -
Automatic Reboot Trigger: Built-in WDT
Storage Expansion: 2.5-inch SSD slots x 2 (SATAIII interface), RAID 0/1 support
Physical Characteristics
Dimensions: 440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in)
Housing: Metal
Operating Temperature: -30 to 60°C (-22 to 140°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Relative Humidity: 5 to 95% (non-condensing)
Weight: 3,610 g (7.95 lb)
Standards and Certifications
EMC: EN 55032/35
Anti-Vibration: IEC 60068-2-64
Safety: UL 62368-1 (CB) BSMI
Green Product: RoHS, CRoHS, WEEE
Anti-Shock: IEC 60068-2-27
EMI: CISPR 32, FCC Part 15B Class A, BSMI
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
Mounting
Rack mounting: (standard 1U)
