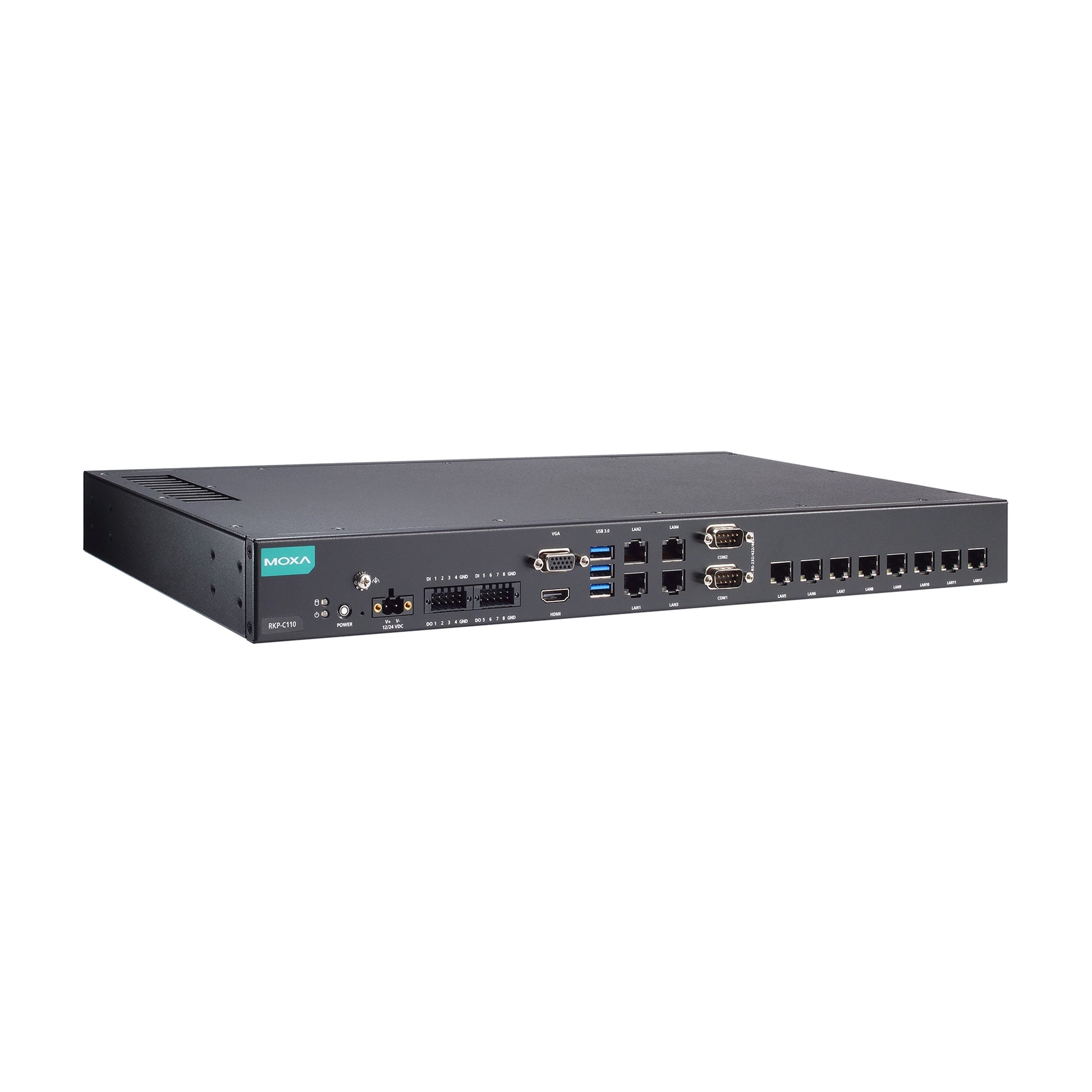

MOXA RKP-A110-E4-8L-T Industrial Computer

MOXA RKP-A110-E4-8L-T Industrial Computer

$2,577.00 CAD
$2,577.00 CAD
Sale Out of Stock

Features and Benefits

  • 1U rackmount computer with fanless design
  • Intel Atom® X Series processor
  • Rich interface options for up to 12 LAN ports and up to 10 serial ports
  • Standard form factor that fits most field applications
  • Unified front-panel connectivity design for easy access of interfaces
  • -30 to 60°C operating temperature range
View full details

Description

Introduction
The Moxa RKP-A110-E2-2L4C-T is a high-performance industrial-grade fanless computer, specifically engineered for demanding Factory Automation applications. The rugged design of the RKP-A110 PCs adheres to stringent industrial standards, which ensures long-term reliability in harsh environments. This rackmount 1U computer integrates all communication interfaces on the front panel and facilitates easy access and efficient expansion tailored for industrial applications. Powered by the Intel Atom® X Series processor, the Moxa RKP-A110-E2-2L4C-T computer offers a secure and dependable computing platform for a range of automation needs, excelling in extreme operating conditions. For professionals requiring advanced solutions, RKP-A110-E2-2L4C-T is a standout choice in Moxa industrial computing solutions.

Comprehensive Connectivity with an Intel Atom® Processor
With an Intel Atom® x6211E CPU, the Moxa RKP-A110-E2-2L4C-T PC delivers robust computing power for industrial environments. This industrial x86 computer comes equipped with 8 GB RAM and dual 2.5” SSD storage slots to bring forth fast data processing and ample storage capacity. The Moxa RKP-A110-E2-2L4C-T industrial computer delivers extensive connectivity options, including 6 LAN ports, 6 serial ports, and 3 USB 3.0 ports, ideal for industrial automation computer setups. Additionally, I/O capabilities such as 8 digital inputs, 8 digital outputs, and video interfaces like 1 VGA and 1 HDMI further establish the RKP-A110-E2-2L4C-T industrial PC as a versatile solution for modern automation systems.

Rugged Design and a Wide Operating Temperature for Industrial Environments
Built with an IP20-rated metal housing, the RKP-A110-E2-2L4C-T rackmount computer is designed for reliable operation in demanding environments. Measuring 440 x 230 x 43.6 mm and weighing 3,520 g (7.76 lb), it conforms to standard 1U rack mounting. This Moxa rackmount computer operates within a temperature range of -30 to 60°C (-22 to 140°F) and can endure storage conditions as low as -40°C and as high as 75°C. Featuring 12/24 VDC input voltage, the Moxa RKP-A110-E2-2L4C-T ensures seamless integration into various industrial systems. For detailed specifications, refer to the Moxa RKP-A110-E2-2L4C-T datasheet.

MOXA RKP-A110-E2-2L4C-T Certifications

The Moxa RKP-A110-E2-2L4C-T is certified to meet rigorous industry standards, including safety, EMC, EMI, and EMS requirements. It has undergone tests for freefall, shock, and vibration, as well as package drop and package vibration tests to ensure reliability in transportation and operation. This Moxa computer is part of the Moxa RKP-A110 series, renowned for its durable and dependable performance in industrial applications. Whether for factory automation or other industrial edge computing tasks, the Moxa RKP-A110-E2-2L4C-T stands as a robust and trusted choice.

Data sheet

Specification

Industrial Computer: Computer
CPU: Intel Atom® x6425E processor
DRAM: 8 GB DDR4
OS (pre-installed): -
USB: USB 3.0 hosts x 3, type-A connectors

Industrial Computer: Interface
Console Port: -
LAN: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12
Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Standards: RS-232/422/485
Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)

Industrial Computer: Digital Input
Input Channels: DIs x 8

Industrial Computer: Digital Output
Output Channels: DOs x 8
Output Voltage: 0 to 24 VDC

Industrial Computer: Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Baudrate: 50 bps to 115.2 kbps

Industrial Computer: Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Industrial Computer: LED Indicators
System: Power x 1, Storage x 1
LAN: 2 per port (10/100/1000 Mbps)
Serial: -

Industrial Computer: Power Requirements
Input Voltage: 12/24 VDC
Input Current: -
Power Consumption: 50 W

Industrial Computer: General
Alert Tools: -
Automatic Reboot Trigger: Built-in WDT
Storage Expansion: 2.5-inch SSD slots x 2 (SATAIII interface)

Industrial Computer: Physical Characteristics
Dimensions: 440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in)
Housing: Metal
Operating temperature: -30 to 60°C (-22 to 140°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Relative humidity: 5 to 95% (non-condensing)
EMC: EN 55032/35
Weight: 3,510 g (7.74 lb)
Anti-Vibration: IEC 60068-2-64
Safety: UL 62368-1 (CB) BSMI
Green Product: RoHS, CRoHS, WEEE
Anti-Shock: IEC 60068-2-27
EMI: CISPR 32, FCC Part 15B Class A, BSMI
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
Mounting: Rack mounting (standard 1U)
