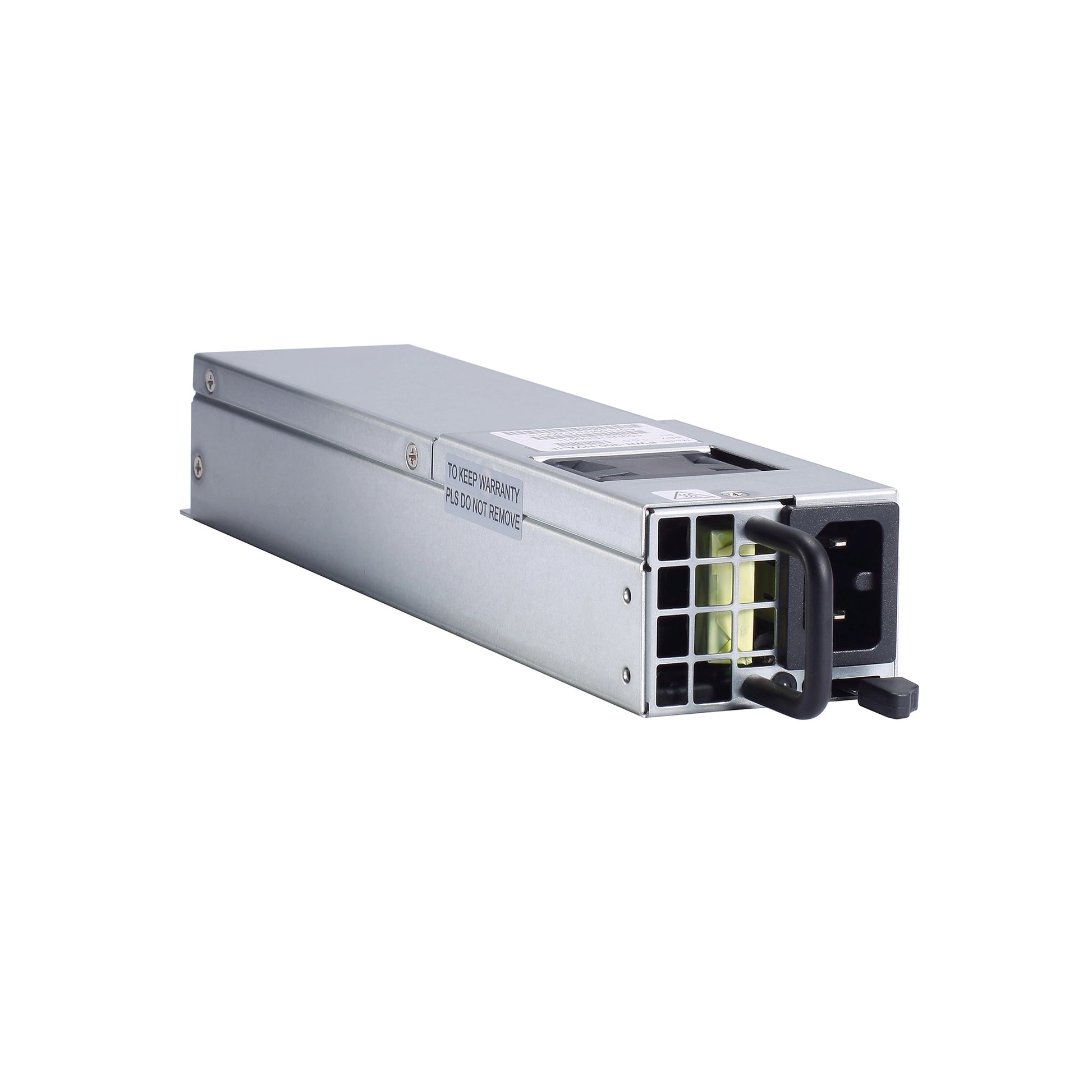

MOXA PWR-300-HVA-IF Power Module

MOXA PWR-300-HVA-IF Power Module

$1,219.00 CAD
$1,219.00 CAD
Sale Out of Stock

Features and Benefits

  • Isolated power supply
  • Hot-swappable
  • -40 to 65°C operating temperature range
View full details

Description

The PWR-300 Power Module Series of isolated, hot-swappable power modules are designed for Moxa MRX-G4000 Series and MRX-Q4000 Series switches. These flexible power modules allow supported switches to use 100-240 VAC or 230-240 VDC input power and have a wide operating temperature to ensure reliable performance.

Data sheet

Specification

Power Supply : Power Requirements
Input Voltage: 100 to 240 VAC, 50 to 60 Hz; 230 to 240 VDC
Operating Voltage: 90 to 264 VAC, 47 to 63 Hz; 180 to 300 VDC
Overload Current Protection: Supported

Power Supply : Physical Characteristics
Weight: 700 g (1.6 lb)
Airflow: Front-to-rear
Operating Temperature: -40 to 65°C (-40 to 149°F)
MTBF: 3,571,855 hrs
Standards: Telcordia (Bellcore), GB
Warranty Period: 5 years
