Moxa

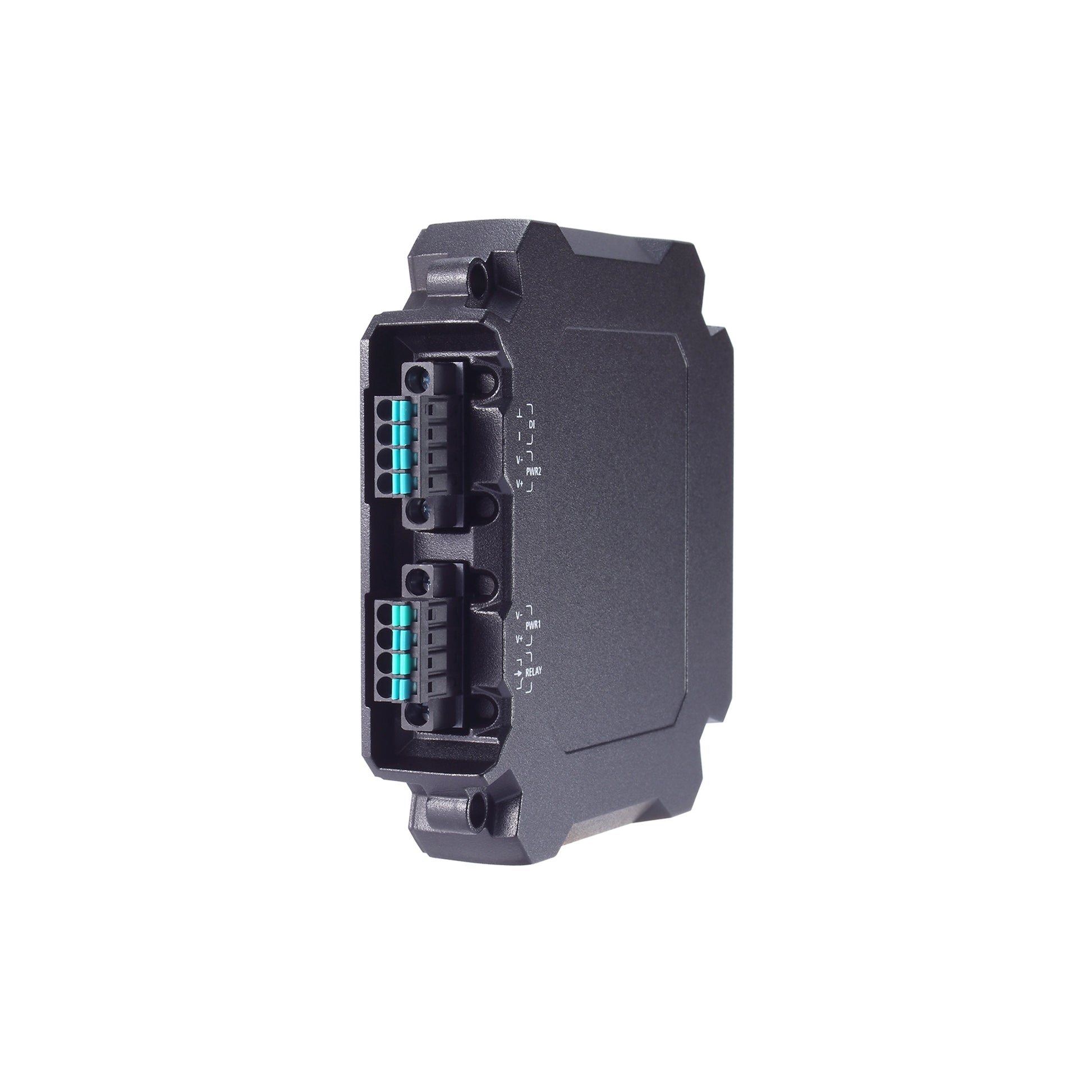

MOXA PWR-103-LV-VB-I Power Module

$1,126.00 CAD

Sale Out of Stock

Product variants

Features and Benefits

Rotatable design for versatile installation
Wide range of power input options for flexible deployment

View full details

Description

Introduction

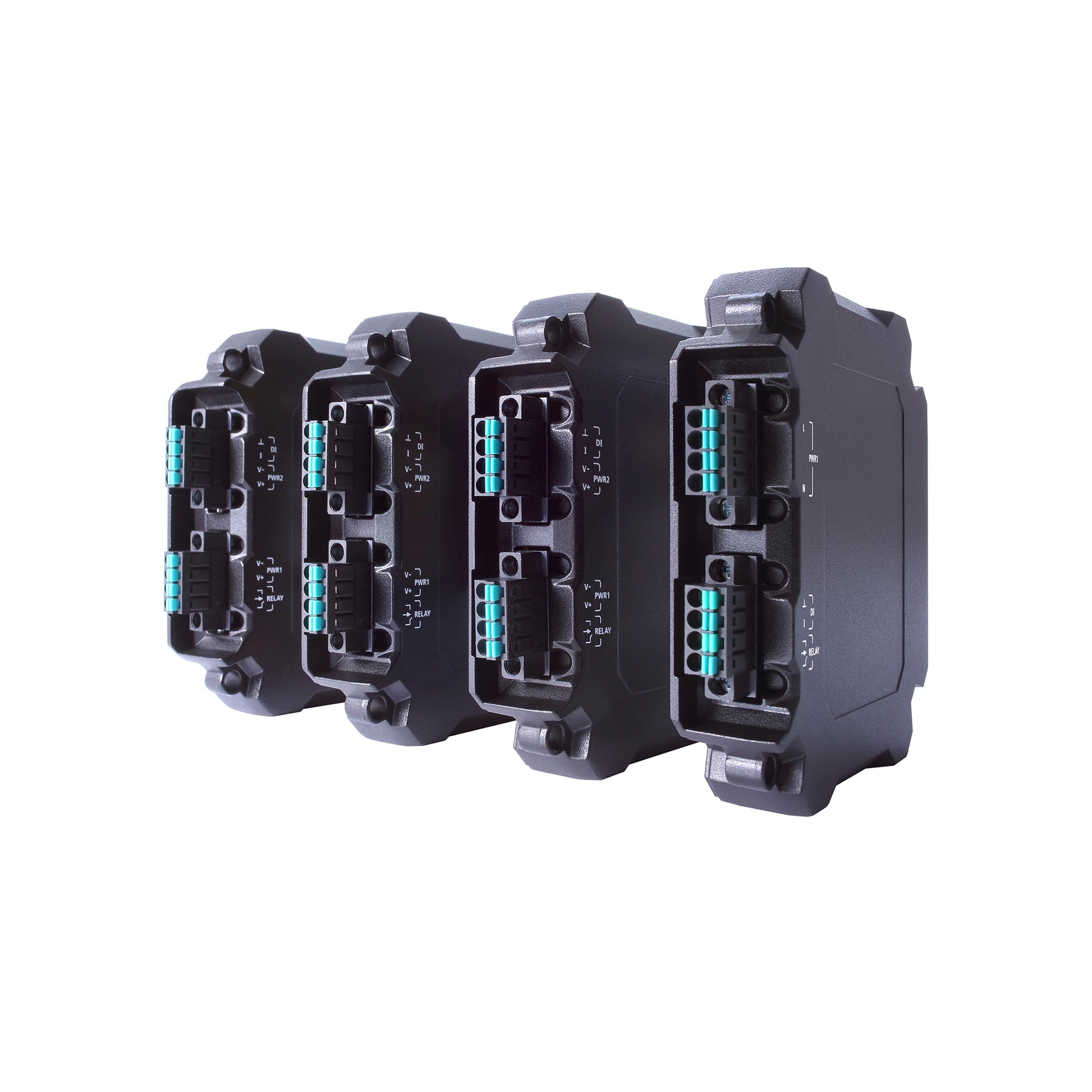

The PWR-100 Power Module Series is designed for Moxa’s EDS-4000/G4000 Series switches. The power modules allow supported switches to use 12/24/48 VDC or 110/220 VDC/VAC.

Place your order with confidence for the Power Module at a competitive price, perfect for industrial solutions, by purchasing online or inquiring through our website. Our customer-focused approach ensures a straightforward buying process.

Data sheet

Specification

Power Supply : Power Requirements
Input Voltage: 12/24/48 VDC
Output Voltage: 12 to 57 VDC (> 52 VDC recommended for PoE+ output)
Over-voltage Protection: -
Overload Protection: Supported
Type: -
Reset: -
Inrush Current: Max. 0.8 A @ 48 VDC (0.1 to 1 ms)

Power Supply : Physical Characteristics
Operating Humidity: 5 to 95% (non-condensing)
Safety: EN 62368-1 (LVD)
EMC: EN 55032/35, EN 61000-6-2/-6-4
