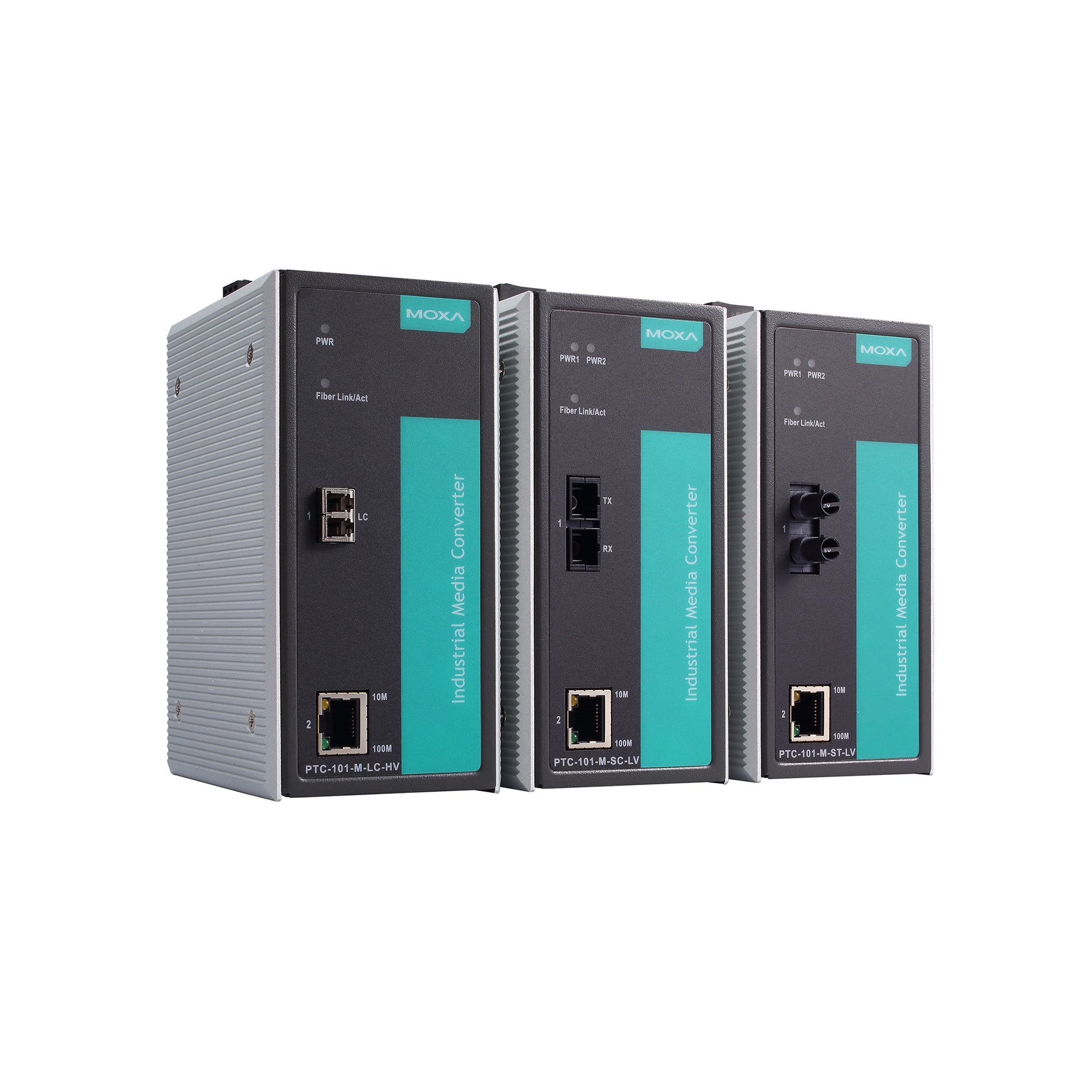

MOXA PTC-101-S-LC-HV Ethernet to Fiber Converter

MOXA PTC-101-S-LC-HV Ethernet to Fiber Converter

$1,638.00 CAD
$1,638.00 CAD
Sale Out of Stock

Features and Benefits

  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFPT)
  • Power failure alarm by relay output (LV model only)
  • -40 to 85°C operating temperature range
  • Redundant dual DC power inputs (LV model only)
  • Integrated high-reliability power supply eliminates the need for external power transformer
View full details

Description

Introduction
The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Data sheet

Specification

Eth to Fiber : Interface
10/100BaseT(X) Ports: 1
10/100Mb RJ45 (Megabit) Ports: Yes, 1 x 10/100BaseT(X) Port
10/100/1000Mb RJ45 (Gigabit) Ports: No
100BaseFX Ports: 1 x single-mode LC connector
100Mb Fiber Optic Multi Mode (Megabit) Ports: No
Magnetic Isolation Protection: 1.5 kV (built-in)
100Mb Fiber Optic Single Mode (Megabit) Ports: Yes, 1 x single-mode LC connector
1000Mb Fiber Optic Single Mode (Gigabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: No
M12 Port: No
Alert Output: No

Eth to Fiber : Standards and Protocols
Protocols and Work Standards: IEEE 802.3, IEEE 802.3u/x

Eth to Fiber : General
Maximum Cable Length for Data Transfer: 40 km with single-mode fiber optic cable
MTBF: 4,660,534 hrs

Eth to Fiber : Power Requirements
Input Voltage: 100 to 240 VAC, 100 to 240 VDC
Power Consumed: 350 to 200 mA @ 100 to 240 VAC, 350 to 200 mA @ 100 to 240 VDC
Input Current: 350 to 200 mA @ 100 to 240 VAC, 350 to 200 mA @ 100 to 240 VDC
Type of Power Input: -
Overload Current Protection: Supported
PoE Support: No
Protection Against Reverse Voltage: -
Protection Against Overflow: -

Eth to Fiber : LED Indicators
LNK/ACT: -

Eth to Fiber : Buttons
DIP Switch: No

Eth to Fiber : Physical Characteristics
Standards and Certifications: EMC, EMI, EMS, Environmental Testing, Safety, Vibration, IEC 61850-3
Housing: Metal
Dimensions: 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
Weight: Packaged: 952 g (2.09 lb), Product Only: 785 g (1.73 lb)
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
Installation: DIN-rail mounting
