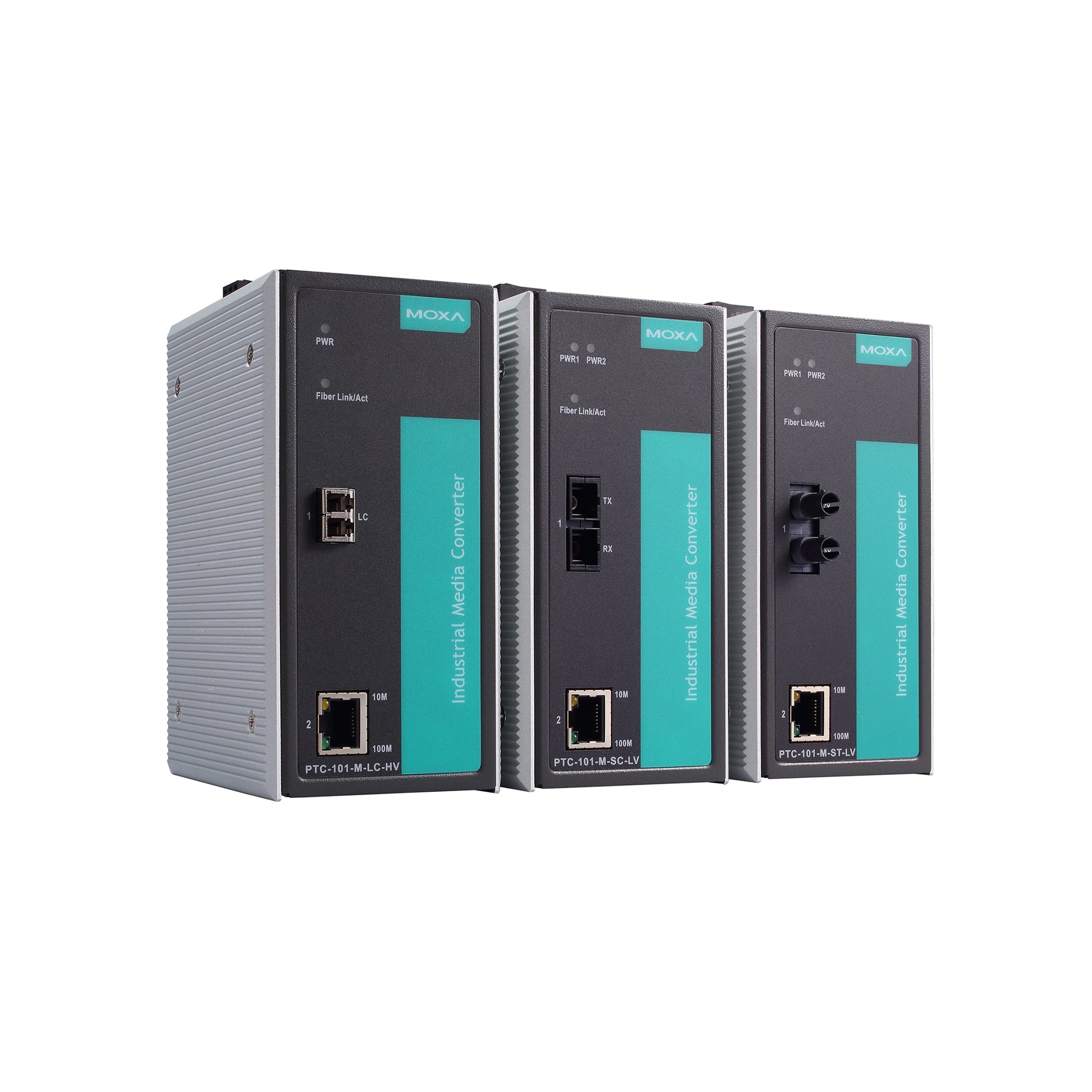

MOXA PTC-101-M-LC-HV Ethernet to Fiber Converter

MOXA PTC-101-M-LC-HV Ethernet to Fiber Converter

$1,187.00 CAD
$1,187.00 CAD
Sale Out of Stock

Features and Benefits

  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFPT)
  • Power failure alarm by relay output (LV model only)
  • -40 to 85°C operating temperature range
  • Redundant dual DC power inputs (LV model only)
  • Integrated high-reliability power supply eliminates the need for external power transformer
View full details

Description

Introduction
The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Data sheet

Specification

Eth to Fiber : Interface
10/100BaseT(X) Ports: 1
100BaseFX Ports: 1 x Multi-mode LC
Magnetic Isolation Protection: 1.5 kV (built-in)

Eth to Fiber : General
MTBF: 4,660,534 hrs

Eth to Fiber : Power Requirements
Input Voltage: 100 to 240 VAC/VDC
Input Current: 350 to 200 mA @ 100 to 240 VAC
Overload Current Protection: Supported
Power Consumption: 350 to 200 mA @ 100 to 240 VAC, 350 to 200 mA @ 100 to 240 VDC

Eth to Fiber : Physical Characteristics
Standards and Certifications: EMC, EMI, EMS, Environmental Testing, Safety, Vibration, IEC 61850-3
Housing: Metal
Dimensions: 152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
Weight: Packaged: 952 g (2.09 lb), Product only: 785 g (1.73 lb)
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Operation Humidity: 5 to 95% (non-condensing)
Installation: DIN-rail mounting
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 8 kV, Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; IEC 61000-4-4 EFT: Power: 4 kV, Signal: 4 kV; IEC 61000-4-5 Surge: Power: 4 kV, Signal: 4 kV; IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m, Signal: 10 V/m; IEC 61000-4-8 PFMF; IEC 61000-4-11
Safety: EN 62368-1, UL 62368-1, UL 60950-1
Vibration: IEC 60068-2-6
