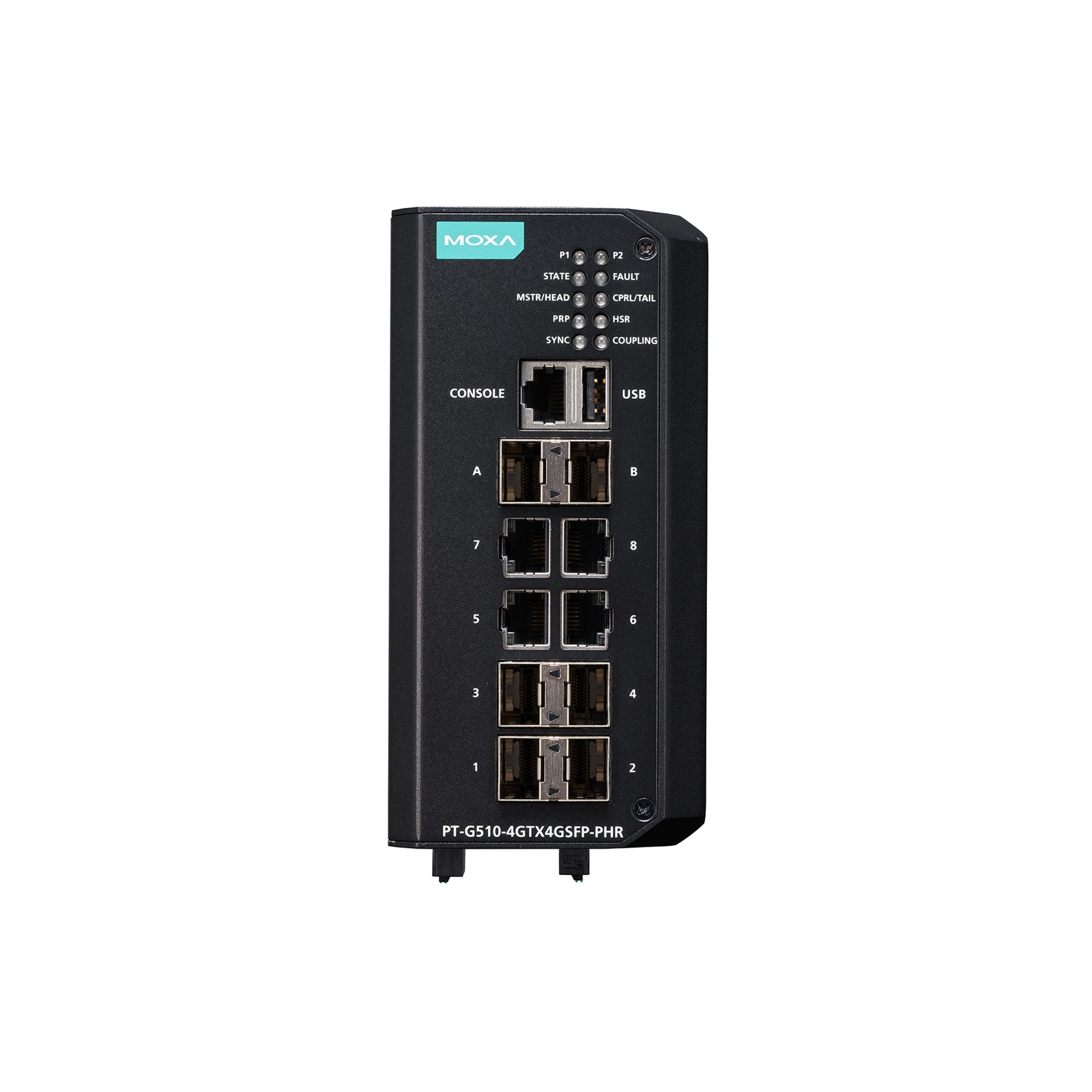

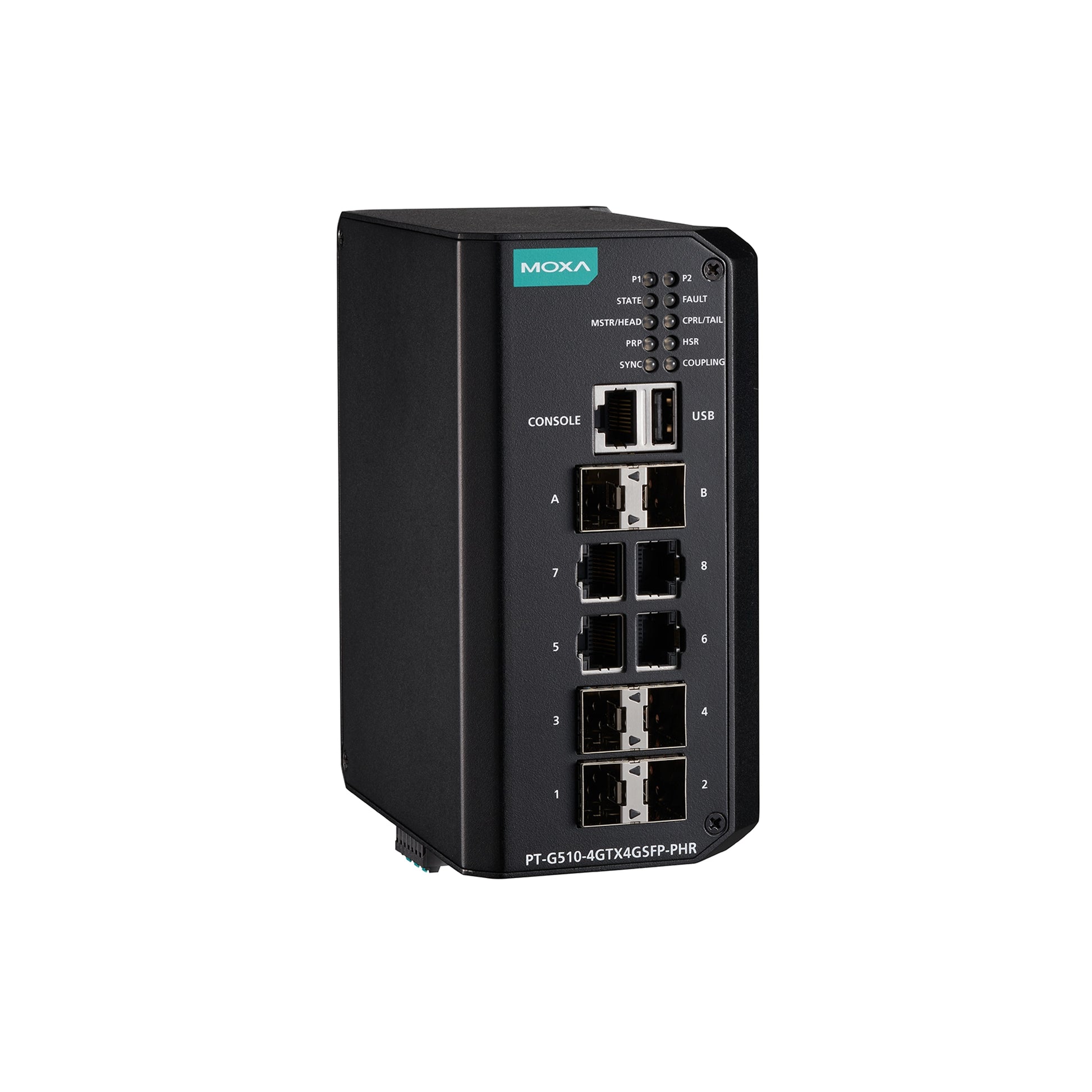

MOXA PT-G510-4GTX4GSFP-PHR-WV Managed Ethernet Switch

$4,265.00 CAD

Sale Out of Stock

Product variants

Features and Benefits

IEC 61850-3 Edition 2 Class 2 compliant
IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
IEEE 1588 hardware time stamp supported
Supports IEEE C37.238 and IEC 61850-9-3 power profiles
GOOSE Check for easy troubleshooting
Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
-40 to 75°C operating temperature range

View full details

Description

Introduction
The PT-G510 Series is designed to deliver the highest level of system availability and data integrity for mission-critical applications in digital substations that demand zero-recovery-time redundancy. The PT-G510 Series supports PRP/HSR to achieve seamless redundancy for substations and process automation systems. Hardware-based IEEE 1588v2 PTP is also supported for time-critical applications. Featuring a highly durable design, the PT-G510 Series is certified for IEC 61850-3 Edition 2 Class 2 to fulfill demanding requirements in substation applications. The PT-G510 Series comes with eight 100/1000BaseT(X) Ethernet ports or 100/1000BaseSFP slots with two dedicated 100/1000BaseSFP PRP/ HSR ports combined with support for a complete redundancy protocol suite including PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability. The PT-G510 Series further supports GOOSE Check to efficiently monitor GOOSE packets and features a built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA systems.

Data sheet

Specification

Switch and Hub : Interface
Number of Ports: 10 Ports
10/100Mb RJ45 (Megabit) Ports: No
10/100/1000Mb RJ45 (Gigabit) Ports: Yes, 4 Ports
100Mb Fiber Optic Multi Mode (Megabit) Ports: No
100Mb Fiber Optic Single Mode (Megabit) Ports: No
1000Mb SFP Fiber Optic (Gigabit) Ports: No
10/100Mb (Megabit) PoE Ports: No
100Mb SFP Fiber Optic (Megabit) Ports: No
10/100/1000Mb (Gigabit) PoE Ports: No
Other Ports: Yes, 6 x 100/1000Base SFP Slots

Switch and Hub : Features and Capabilities
Backup: Yes

Switch and Hub : LED Indicators
LED Per Port: Yes

Switch and Hub : Power Requirements
Maximum Power Consumption: -
Power Consumption (Output Adapter): -
Power Input Plug-in (Redundant): Yes

Switch and Hub : General
Fan / Fanless: Fanless
MTBF: 688,584 hrs

Switch and Hub : Switch Specifications
Most Forwarding Speed: -
Network Working Layers: Layer 2
Switch Type: Managed
Port Aggregation: -

Switch and Hub : Physical Characteristics
Housing: -
Installation: DIN-rail mounting
Operation Humidity: 5 to 95% (non-condensing)
Standards and Certifications: Safety, EMI, EMS, IEC 61850-3, IEEE 1613, EN 50121-4

Switch and Hub : Standards and Protocols
Protocols and Work Standards: IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Protocols and Management Standards: Back Pressure Flow Control, BOOTP, DHCP Client, Fiber Check, Flow Control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet

Switch and Hub : Package Checklist
Hardware Installation Guide: Yes
Power Adapter: No
Power Cable: No
