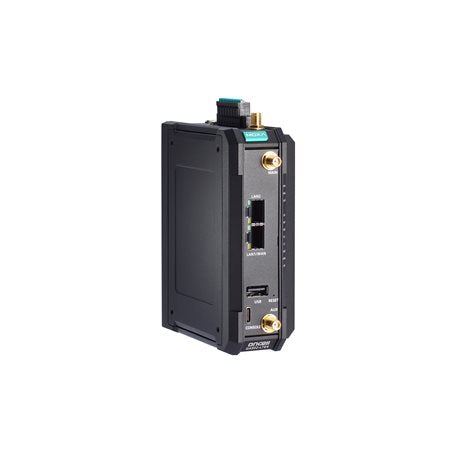

MOXA OnCell G4302-LTE4-JP Industrial Cellular Router

MOXA OnCell G4302-LTE4-JP Industrial Cellular Router

$1,158.00 CAD
$1,158.00 CAD
Sale Sold out

Features and Benefits

  • Integrated LTE Cat. 4 module with US/EU/APAC band support
  • Cellular link redundancy with dual-SIM GuaranLink support
  • Supports WAN redundancy between cellular and Ethernet
  • Support MRC Quick Link Ultra for centralized monitoring and remote access to the on-site devices
  • Visualize OT security with the MXsecurity management software
  • Power management support for wake-up time scheduling or digital input signals, suitable for vehicle ignition systems
  • Examine industrial protocol data with Deep Packet Inspection (DPI) technology
  • Developed according to IEC 62443-4-2 with Secure Boot
  • Rugged and compact design for harsh environments
View full details

Description

The OnCell G4302-LTE4 Series is a reliable and powerful secure cellular router with global LTE coverage. This router provides reliable data transfers from serial and Ethernet to a cellular interface that can be easily integrated into legacy and modern applications. WAN redundancy between the cellular and Ethernet interfaces guarantees minimal downtime, while also providing extra flexibility. To enhance cellular connection reliability and availability, the OnCell G4302-LTE4 Series features GuaranLink with dual SIM cards. Moreover, the OnCell G4302-LTE4 Series features dual power inputs, high-level EMS, and a wide operating temperature for deployment in demanding environments. Through the power management function, administrators can set up schedules to fully control the OnCell G4302-LTE4 Series’ power usage and minimize power consumption when idle to save cost.

Designed for robust security, the OnCell G4302-LTE4 Series supports Secure Boot to ensure system integrity, multi-layer firewall policies for managing network access and traffic filtering, and VPN for secure remote communications. The OnCell G4302-LTE4 Series complies with the internationally recognized IEC 62443-4-2 standard, making it easy to integrate these secure cellular routers into OT network security systems.




You can also find the OnCell G4302-LTE4-AU-T, OnCell G4302-LTE4-EU, OnCell G4302-LTE4-EU-T, and OnCell G4302-LTE4 JP models in the OnCell G4302-LTE4 Series.

Data sheet

Specification

Interface:
SIM Card Slots: 2 x Nano SIM
LAN Ports: 2 x RJ45 10/100/1000BaseT(X) Ports
USB Ports: 1 x USB 2.0, Type A
Serial Port: 1 x RS-232/422/485 port
Other Ports: No WAN, FXO/FXS, DSL, Digital Input/Output, Memory card slot, MicroUSB
Cellular Standards:
Cellular Standards: LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM
Cellular Antenna Connectors: 2 x SMA female
Network Frequencies:
2G: 900 MHz, 1800 MHz
3G: 2100 MHz, 850 MHz, 900 MHz
4G: 2100 MHz, 1800 MHz, 850 MHz, 2600 MHz, 900 MHz, 700 MHz
Software Specifications:
VPN: No specific details
Firewall: Filters for DDoS, Ethernet protocols, ICMP, IP address, MAC address, and Ports
Routing Redundancy: VRRP
Time Management: NTP Server/Client, SNTP
Management: GuaranLink, Power Management, LLDP, Syslog, MXview One, MXconfig, MXsecurity, Moxa Remote Connect (MRC)
Protocols: HTTP, HTTPS, SSH, DDNS, DHCP Server/Client, SMTP, SNMPv1/v2c/v3, ARP, Telnet, TCP/IP, UDP
Features:
Send and Receive SMS: Yes
3G Phone Calls: No
Create/Edit Phonebook: No
Broadcast Forwarding: IP directed broadcast, broadcast forwarding
Multicast Routing: Static Route
Security:
Encryption: HTTPS
Authentication: Local database, RADIUS, Access Control List
Serial Security: No specific details
Power Requirements:
Power Consumption: 7.6 W (typical), 11.52 W (max.)
Input Voltage: 12 to 48 VDC
Input Current:
0.96 A @ 12 VDC (max.)
0.63 A @ 12 VDC (average)
0.33 A @ 24 VDC (average)
0.18 A @ 48 VDC (average)
Reverse Polarity Protection: Yes
Power Input: Screw-locked terminal block
POE Support: No
Battery: No
LED Indicators:
Indicators: WAN, Power, Internet, Wireless Signal Strength
4G/3G/2G, LAN, SMS, WLAN, WPS: No
Physical Characteristics:
Dimensions: 125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in)
Housing: Metal
Weight: 610 g (1.34 lb)
IP Rating: IP40
Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Use: Industrial environment
Certifications:
Certifications: EMC, EMI, EMS, Freefall, Hazardous Locations (IECEx3, ATEX3, Class I Division 23), Railway, NEMA TS2
Carrier Approvals: Verizon, AT&T
Radio Frequency: EN 301 489-1/-19, EN 301 489-1/-52, EN 301511, EN 301908-1/-2/-13
Safety: Shock, Vibration, Road Vehicles
